Graphtec GL240 - Datalogger
Graphtec GL240 Datalogger
● 10 geïsoleerde multifunctionele ingangen (voltage, temperatuur of luchtvochtigheid)
● ±20 mV tot ±100 V input over 12 bereiken
● Hoge resolutie 4.3" WQVGA Color TFT scherm
● Eenvoudig keypad systeem
● Speciale bundel uitvoeringen leverbaar
● Verbindt de GL240 met een pc om data uit te lezen of data live te monitoren
● Gratis software om data te bekijken/analyseren

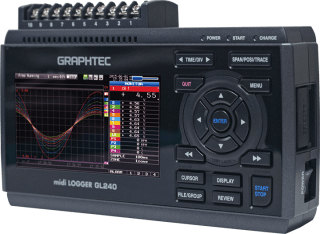

GRAPHTEC GL240
Datalogger
The GL240 is a 10 channel comprehensive data logger and the best value market leader. Optional with Wireless LAN
All Channel Isolated/Universal input, Standalone Multi-Channel
Its compact size contains an isolated input system which ensures that signals are not corrupted by inputs to other channels, thus eliminating wiring concerns. The GL240s multi-type inputs are suitable for voltage, temperature, humidity, pulse, and logic signals, enabling combined measurements of different phenomena like temperature/humidity and voltage. Sensors are connected via rear mounted screw terminals.
Supports large-size SD memory card for reliable long term measurement
New GL240 series carries two SD memory card slots for storage device. The SDHC type SD memory card is supported up to 32GB. 4GB SD memory card comes as a standard accessory installed in the first slot.
the captured data can be stored in GBD (Graphtec binary data) or CSV file format.
