Graphtec GL100 Compact Modular Mini Data Logger
GL-100 Compact Data Logger
Temperature, Humidity, Acceleration, Carbon Dioxide, Illuminance, UV, Voltage, Current, Logic and Pulse Measurement Capabilities
● Parameters: voltage, temperature, humidity, acceleration, illuminance, UV intensity, AC current
● Measuring channels: up to 4
● Sampling rate: 0.5 s to 60 min (dep. on sensor/module)
● Interface: USB, Wi-Fi
● Operation: stand-alone, PC-based, Smartphone
● Stores Recorded Readings onto Internal Memory or MicroSD Card
● Email Notifications for Alarm Alerts, Low Battery Warnings & Confirm Setting Changes (Wi-Fi version Only)

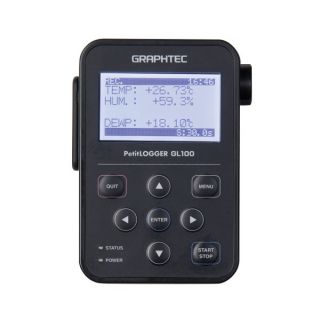

GRAPHTEC Petit Logger GL100
Compact Multi-Function Datalogger
The GL100 Compact Data Series is a modular data logger is able to support variety measurement by exchanging the input module. Multiple sensors and the input terminal are available for corresponding to the application.
Measurement Capabilities:Temperature, Humidity, Acceleration, Carbon Dioxide, Illuminance, UV, Voltage, Current, Logic and Pulse
Easy measurement by multifunction input
The input module can be expanded to accommodate a wide variety of measurements.
Attachable and Exchangable Input Modules for Temperature, Humidity, Acceleration, Carbon Dioxide, Luminance, UV, Voltage, Current, Logic and Pulse
Stores Recorded Readings onto Internal Memory or MicroSD Card.
Software support - Windows - IOS - ANDROID
The GL100 is supplied with software that provides excellent control over most GL Series functions. It also provides convenient data transfer and control from your PC to the GL100 — as well as converting measured data into file formats that can be used with spreadsheet applications, data analysis applications, and other software programs.
WINDOWS
Includes Software Application Supporting Windows 8.1, 8, 7
IOS
Software Application Supporting iOS 7.X+
ANDROID
Software Application Supporting Android 4.3+

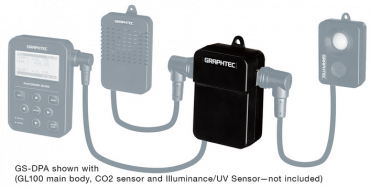

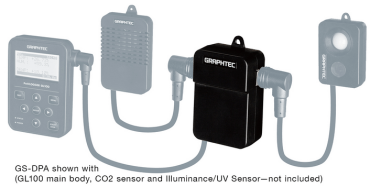

Dual port adapter connects up to two* modules for simultaneous interface
The Dual Port adapter connects up to two sensor modules for simultaneous interface.
DUAL PORT CONFIGURATIONS |
GL100-WL / N
|
GL100-WL / N
|
GL100-WL / N
|
![]() |
![]() |
![]() |
*It is not possible to connect two sensors of the same type.
INPUT TERMINAL / ADAPTER
Model: GS-4VT
Connects the GL100 for up to 4ch of voltage DC (20mV to 50V as well as 1-5V) and thermocouple (K or T type) temperature measurement. Each voltage / temperature channel is configurable. Combination of pulse and logic channels can be measured at the same time.
Model: GS-4TSR
The compact GL100 datalogger input terminal adapter with 4 channel thermistor for industries requiring climate monitoring and control such as greenhouse, hydroponics, agriculture and botanical rooms gives managers real time environment and climate monitoring. Fine arts museums and galleries are also served for controlled environment settings where the GL100 excells!
Model: GS-DPA-AC
The compact GL100 datalogger input terminal adapter with 4 channel thermistor for industries requiring climate monitoring and control such as greenhouse, hydroponics, agriculture and botanical rooms gives managers real time environment and climate monitoring. Fine arts museums and galleries are also served for controlled environment settings where the GL100 excells!
