tSG-3781B - 1-channel 4 ~ 20 mA Current Input / PWM Output Signal Conditioner - ICPDAS
● Convert 1-channel 4 ~ 20mA Current Input to 1-channel PWM Output
● PWM output duty ratio converted by 4 ~ 20 mA Input
● PWM output frequency configured via push buttons
● LCD displays the PWM output duty ratio and frequency
The tSG-3781B is a single-channel DC current input signal conditioning module that converts 4~20mA current input to PWM output. PWM output has a duty cycle of 0%~100% and performs a linear conversion of the 4~20mA current input. PWM output frequency is adjustable from 600Hz to 800Hz via push buttons. tSG-3781B includes a monochrome LCD display that shows the duty cycle and frequency of the PWM output signal.

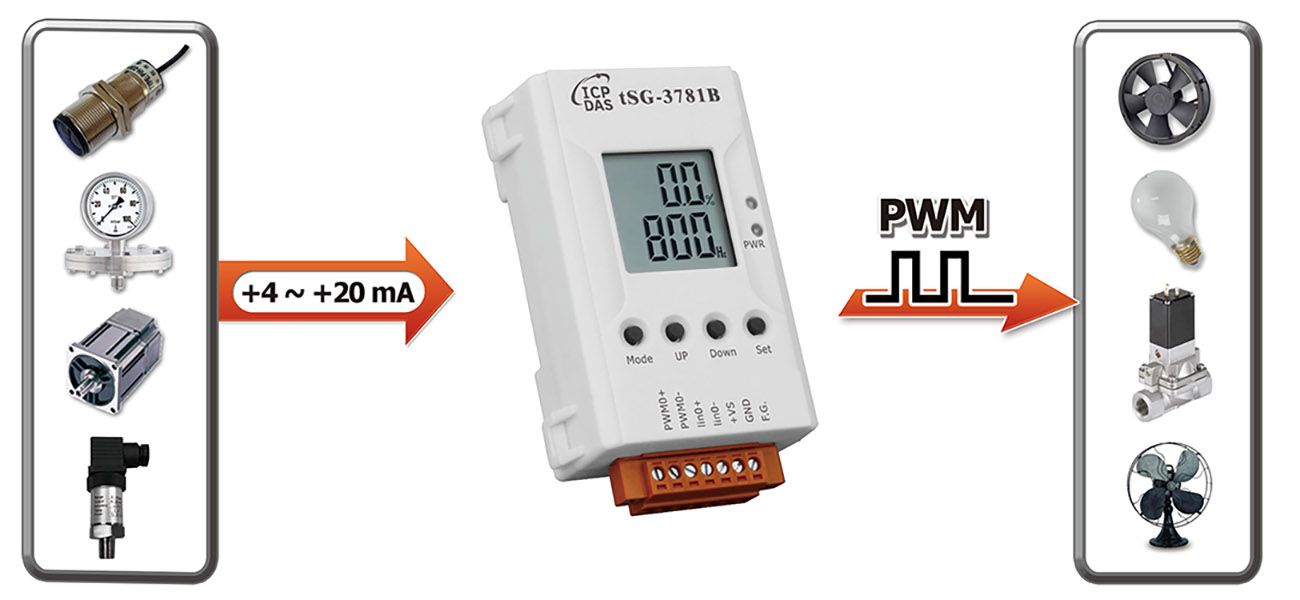

● Heating system in buildings
● Ventilation system
● Controlling servo-assisted diaphragm valve
tSG-3781B
Setting buttons are located at bottom side.

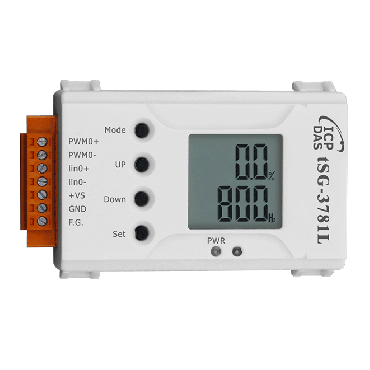

tSG-3781L
Setting buttons are located at left side.
