SG-3784M - 4-channel DC Current Signal Input to 4-channel PWM Output Module - ICPDAS

Levertijd:

2~7 dagen

SKU

SG-3784M

● 4-channel 4 ~ 20mA Current Input to 4-channel PWM Output

● Accuracy: ±0.1% of Full Range

● Easy PWM Frequency configuration

● 4kV ESD and EFT Protection

● 2.7-inch LCD simultaneously displays PWM signal duty ratio and frequency

● 4-button easy configuration of PWM signal

Brochure EN

Details

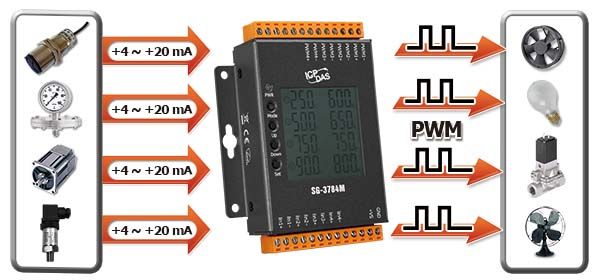

The SG-3784M is a 4-channel DC current input signal conditioning module which can convert 4 ~ 20 mA current input to PWM output. This provides an economical solution when the 4 to 20mA current need to be converted to PWM output. The duty cycle, 0% to 100%, of the PWM output is a linear transformation of the 4 to 20mA current input. The frequency of the PWM signal can be in the range 600Hz to 800Hz and it can be adjusted by buttons.
The SG-3784M includes a monochrome graphic LCD display which shows the duty cycle and frequency of the 4-channel PWM output signals. 4 kV ESD and 4 kV EFT protection are also provided to enhance noise protection capabilities in industrial environments.

● Heating system in buildings
● Ventilation system
● Controlling servo-assisted diaphragm valve
