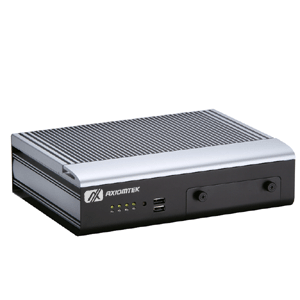

Axiomtek embedded PC tBOX311-820-FL
Levertijd:
Uit voorraad leverbaar
SKU
tBOX311-820-FL
€ 98,00 Excl. BTW
Fanless Embedded System with Intel® Atom™ Processor Z510PT/ Z520PT up to 1.3 GHz for Vehicle PC
● Supports Intel® Atom™ processor Z520PT (1.33 GHz)
● Intel® US15WPT chipset
● Fanless operation
● 2 x VGA
● Operating temperature range of -40 °C ~ +65 °C
● 1 isolated RS-232/422/485 and 1x RS-232)
● High performance DDR2-667 SODIMM max. up to 2 GB
● One 2.5" swappable SATA drive bay and one CompactFlash™ slot
● 3 internal PCI Express Mini Card slots
Fanless Embedded System with Intel® Atom™ Processor Z510PT/ Z520PT up to 1.3 GHz for Vehicle PC
Meer informatie
Art.nr.
tBOX311-820-FL
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Documenten
Standard Color
Silver-Black
Construction
Aluminum extrusion and heavy-duty steel
CPU
Intel® Atom™ processor Z510PT (1.1 GHz) or Z520PT (1.33 GHz)
System Memory
1 x 200-pin DDR2 SO-DIMM max. up to 2 GB
Chipset
Intel® US15WPT
BIOS
AMI
System I/O Outlet
1 x isolated RS-232/422/485 (COM 1)
1 x isolated CAN bus (optional 1 x RS-232)
2 x VGA
1 x Audio (Mic-in/Line-out)
2 x 10/100/1000Mbps Ethernet
4 x USB 2.0
1 x VDC power input connector
1 x DI/DO power input connector
1 x dry/wet switch
1 x 12V/24V switch
1 x reset switch
3 x antenna opening
1 x isolated CAN bus (optional 1 x RS-232)
2 x VGA
1 x Audio (Mic-in/Line-out)
2 x 10/100/1000Mbps Ethernet
4 x USB 2.0
1 x VDC power input connector
1 x DI/DO power input connector
1 x dry/wet switch
1 x 12V/24V switch
1 x reset switch
3 x antenna opening
Watchdog Timer
255 levels, 0 ~ 255 sec
Expansion Interface
3 x PCI Express Mini Card
1 x SIM card slot
1 x SIM card slot
Storage
1 x 2.5" SATA HDD drive bay
1 x CompactFlash™
1 x CompactFlash™
System Indicator
1 x green LED for system power-on
1 x red LED for HDD active
1 x green LED for WWAN
1 x green LEO for WLAN
4 x Programmable LED (P1~P4)
1 x red LED for HDD active
1 x green LED for WWAN
1 x green LEO for WLAN
4 x Programmable LED (P1~P4)
Power Supply
DC12V mode:
Operating voltage: DC9 ~ 16V
Start voltage: DC13V or higher
DC24V mode:
Operating voltage: DC18 ~ 32V
Start voltage: DC26V or higher
Operating voltage: DC9 ~ 16V
Start voltage: DC13V or higher
DC24V mode:
Operating voltage: DC18 ~ 32V
Start voltage: DC26V or higher
Operating Temperature
-40 °C ~ +65 °C (with W.T. HDD)
Storage Temperature
-40 °C ~ +80 °C
Humidity
10%-90%, non-condensing
Vibration Endurance
2 Grms with CF (5-500Hz, X, Y, Z directions)
Grootte
244 x 70.4 x 185.4 mm (W x H x D)
Certification
CE, EN50155, EN50121
EOS Support
XPE, WinCE, Linux
Warranty
2 Years
