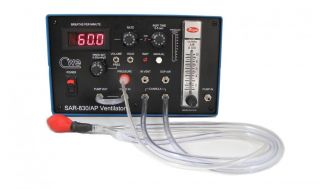

CWE Oxygen Consumption System SAR-830/AP
Small Animal Ventilator, Volume/ Pressure cycled (with internal pump)
● Dependable, all-electronic ventilator
● Pressure or volume-cycled operation
● Wide tidal volume and rate change
● Mice to guinea pig size
● Expandable to 5 animals
● Safe with oxygen and anesthesia
The SAR-830/AP's legendary reliability rests on simple principles of operation and robust construction. Tidal volumes are generated by gating a known airflow into the lungs for a set inspiratory time.
Only three controls — respiratory rate, inspiratory time, and flow rate are necessary to produce tidal volumes and respiratory rates over a wide range. Our SAR-830/AP has the additional feature of pressure-cycling, where the lungs are always inflated to a set pressure on each inspiration. Compatible with Isoflurane Anesthesia systems.
| Respiratory Rate Range | 5 - 200 breaths/min. |
| Tidal Volume Range | 0.2 - 35 ml |
| Inspiration Time Range | 0 - 5.00 seconds |
| Inspiratory Flow Range | 100 - 1000 ml/minute |
| Pressure Control Range | 0 - 50.0 cmH2O |
| Analag Rate Output Voltage | 10 mV/breath/min. |
| Analog Pressure Output Voltage | 50 mV/cmH2O |
| Logic Sync Out Voltage | 5 V (TTL) |
| Remote-control Inputs | Two TTL logic inputs |
