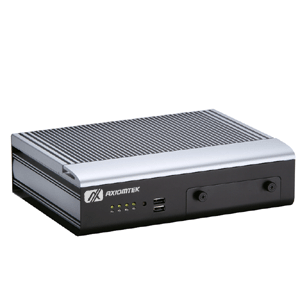

Fanless Embedded System with Intel® Atom™ Processor Z510PT/ Z520PT up to 1.3 GHz for Vehicle PC

Axiomtek tBOX311-820-FL

Levertijd: Uit voorraad leverbaar

Kenmerken

Fanless Embedded System with Intel® Atom™ Processor Z510PT/ Z520PT up to 1.3 GHz for Vehicle PC

● Supports Intel® Atom™ processor Z510PT (1.1 GHz) or Z520PT (1.33 GHz)
● Intel® US15WPT chipset
● Fanless operation
● 2 x VGA
● Operating temperature range of -40 °C ~ +65 °C
● 1 isolated RS-232/422/485 and 1 isolated CAN bus (optional for RS-232)
● High performance DDR2-667 SODIMM max. up to 2 GB
● One 2.5" swappable SATA drive bay and one CompactFlash™ slot
● 3 internal PCI Express Mini Card slots

Download PDF Brochure ENtBOX311-820-FL.pdf

Details

Fanless Embedded System with Intel® Atom™ Processor Z510PT/ Z520PT up to 1.3 GHz for Vehicle PC

Specificaties

Artikelnummer	tBOX311-820-FL
Fabrikant	Axiomtek
Standard Color	Silver-Black
Construction	Aluminum extrusion and heavy-duty steel
CPU	Intel® Atom™ processor Z510PT (1.1 GHz) or Z520PT (1.33 GHz)
System Memory	1 x 200-pin DDR2 SO-DIMM max. up to 2 GB
Chipset	Intel® US15WPT
BIOS	AMI
System I/O Outlet	1 x isolated RS-232/422/485 (COM 1) 1 x isolated CAN bus (optional 1 x RS-232) 2 x VGA 1 x Audio (Mic-in/Line-out) 2 x 10/100/1000Mbps Ethernet 4 x USB 2.0 1 x VDC power input connector 1 x DI/DO power input connector 1 x dry/wet switch 1 x 12V/24V switch 1 x reset switch 3 x antenna opening
Watchdog Timer	255 levels, 0 ~ 255 sec
Expansion Interface	3 x PCI Express Mini Card 1 x SIM card slot
Storage	1 x 2.5" SATA HDD drive bay 1 x CompactFlash™
System Indicator	1 x green LED for system power-on 1 x red LED for HDD active 1 x green LED for WWAN 1 x green LEO for WLAN 4 x Programmable LED (P1~P4)
Power Supply	DC12V mode: Operating voltage: DC9 ~ 16V Start voltage: DC13V or higher DC24V mode: Operating voltage: DC18 ~ 32V Start voltage: DC26V or higher
Operating Temperature	-40 °C ~ +65 °C (with W.T. HDD)
Storage Temperature	-40 °C ~ +80 °C
Humidity	10%-90%, non-condensing
Vibration Endurance	2 Grms with CF (5-500Hz, X, Y, Z directions)
Formaat	244 x 70.4 x 185.4 mm (W x H x D)
Certification	CE, EN50155, EN50121
EOS Support	XPE, WinCE, Linux
Warranty	2 Years

Configureren

1. Configuratie

*Model: tBOX311-820-FL

Fanless embedded system with Intel® Atom™ Z510PT (1.1 GHz), DVI, 2 10/100/1000Mbps Ethernet, COM, CAN bus, CF & HDD support [tBOX311-820-FL1.1G-CAN]
Fanless embedded system with Intel® Atom™ Z520PT (1.33GHz), DVI, 2 10/100/1000Mbps Ethernet, COM, CAN bus, CF & HDD support [tBOX311-820-FL1.33G-CAN]
Fanless embedded system with Intel® Atom™ Z510PT (1.1GHz), DVI, 2 10/100/1000Mbps Ethernet, 2 COM, CF & HDD support [tBOX311-820-FL1.1G-COM]
Fanless embedded system with Intel® Atom™ Z520PT (1.33GHz), DVI, 2 10/100/1000Mbps Ethernet, 2 COM, CF & HDD support [tBOX311-820-FL1.33G-COM]

* Verplichte velden

Aantal
