Fanless Embedded AXIOMTEK System Vehicle and Railway PC

Details

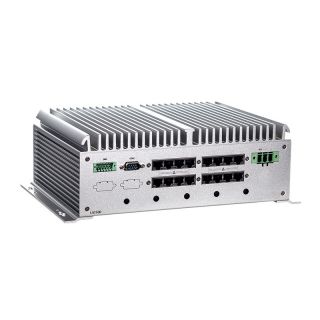

The UST500-517-FL is powered by the LGA1151 socket 7th/6th generation Intel® Core™ and Pentium® processors up to 65W with the Intel® Q170 chipset. The integrated 16 PoE ports are available in RJ-45 or M12 connectors for IP cameras. It provides a full scope of power protection that includes intelligent vehicle power management technology for ACC on/off delay, shutdown delay, and over/under voltage protection. Enhanced by its robust structure and system design, the UST500-517-FL is able to operate under a wide temperature range from -40°C to +70°C and vibration endurance up to 3 Grms. This transportation embedded box is in compliance with ISO 7637-2 and EN 50155 for mobile surveillance applications. There are 16 Gigabit LAN ports which support 802.3at/af Power over Ethernet with a total power budget of 200W. Its DVI-D, HDMI and VGA interfaces support three surveillance monitors. Furthermore, its external accessible SIM card slot enables users to easily change SIM card for different telecommunication service. With wireless LAN modules, this user-friendly transportation embedded system can real-time transmits the video to the control center. The two built-in or four swappable SATA hard drives are used for mass storage of video files.

SPECIFICATIES

Meer informatie

Art.nr.

UST500-517-FL

Fabrikant

Axiomtek

Land van herkomst

Taiwan

Documenten

Download PDF Brochure

Standard Color

Silver

Construction

Aluminum extrusion and heavy-duty steel, IP40

CPU

7th gen Intel® Core™, 35W
6th gen Intel® Core™, 35 ~ 65W
Intel® Pentium® 35W
Intel® Celeron® 35W

System Memory

2 x DDR4 SO-DIMM slot, up to 64GB

I/O Interface

4 x USB 3.0
1 x VGA, 1 x DVI-D, 1 x HDMI
1 x reset button, 1 x power button
2 x external accessible SIM card socket
2 x 3.5 mm Mic-in/Line-out
1 x DB9 RS-232/422/485

Chipset

Intel® Q170

BIOS

AMI

System I/O Outlet

1 x 6-in/2-out isolated DIO
5 x Antenna opening
1 x DB9 RS-232/422/485
8/16 x PoE GbE 802.3af/802.3at supported
- 8 x RJ-45 (with 2 SATA)
- 16 x RJ-45 (with 4 SATA)
- 8 x RJ-45, 8 x M12 A coded (with 4 SATA)
- 8 x M12 A coded (with 4 SATA)

1 x 3P DC-in

Watchdog Timer

255 levels, 1 ~ 255 secs./mins.

Expansion Interface

2 x full-size & 2 x half-size PCI Express Mini Card slot
2 x external accessible SIM Card slot

Storage

2 x 2.5” 15 mm built-in SATA drive with 2 SATA
4 x 2.5” 15 mm swappable SATA drive with 4 SATA
1 x mSATA (use 1 PCI Express Mini Card slot)

System Indicator

1 x system power
1 x HDD active
2 x programmable

Power Supply

DC-input: 9 ~ 36 VDC, ACC ignition, typical 24 VDC

Operating Temperature

-40°C ~ +70°C with W.T. SSD

Humidity

10% ~ 95%, non-condensing

Vibration Endurance

3 Grms w/ SSD (5 ~ 500 Hz, X/Y/Z direction; random)

Grootte

280 mm (W) x 210.5 mm (D) x 70 mm (H) with 2 SATA (internal accessible), w/o wall-mount
280 mm (W) x 210.5 mm (D) x 99.2 mm (H) with 4 SATA with wall-mount

Weight (net/gross)

4.92kg / 5.75kg

Certification

CE, FCC certified, E-Mark, EN 50155 compliant

EOS Support

Windows® 7, Windows® 8, Windows® 10, Linux
*Windows® 7only available for Skylake processor (6th gen)

Warranty

2 Year
