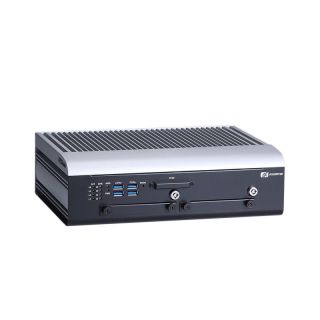

Axiomtek tBOX324-894-FL

The tBOX324-894-FL is a multi-functional fanless embedded computer certified with EN 50155, EN 50121, E-Mark, ISO 7637, DNV 2.4 and compliant with EN 45545-2, IEC 60945 for use in a variety of transportation applications.
Thanks to the onboard 7th generation Intel® Core™ and Celeron® processors (official codename: Kaby Lake-U), the tBOX324-894-FL provides powerful computing performance in a compact size within which a modular I/O design has enhanced the operational efficiency and flexibility. The transportation box PC is equipped with two DDR4-1866/2133 SO-DIMM slots supporting up to 32GB system memory.
To suit the need of extensive storage, it is equipped with two swappable 2.5” SATA3 SSDs and one CFast™ slot.
The application ready tBOX324-894-FL is an outstanding embedded box PC for transportation-related applications such as train management, truck fleet management, transportation controller, data transfer, security surveillance, and onboard infotainment controller in vehicle, railway, and marine markets.

tBOX324-894-FL Transportation Embedded System, an all-in-one embedded system for transportation, is designed with a multi-functional concept to elevate the flexibility and expandability without sacrificing the performance. The feature-rich box PC has enabled the adaptability to dynamic harsh environments. The rugged embedded system is also designed to operate in a wide operating temperature range from -40ºC to 70ºC (meeting the EN50155 Class TX standards) and in high vibration environments. It excels at monitoring, controlling and managing in expanding the application possibilities.

The all-in-one tBOX324-894-FL features modular I/O design allowing flexibility of different combinations: for example, with four M12 connectors or optionally four RJ-45 for GbE LANs; with three isolated COMs and one isolated CANbus; or with four isolated COM ports. Furthermore, it also comes with four USB 3.0 ports, two audio ports, one VGA, one DVI-I, one remote power switch, one reset button, and three antenna openings. In particular, its three embedded PCI Express Mini Cards and two SIM card slots are supported for 3G/4G, GPS, Wi-Fi and Bluetooth applications. Besides, the onboard Intel® Kaby Lake-U processor and the unique thermal design and fasten plate for the system memory can effectively prevent any damage caused by vibration and shock. The significant anti-vibration can endure up to 5Grms with SSD and 1Grms with HDD.
