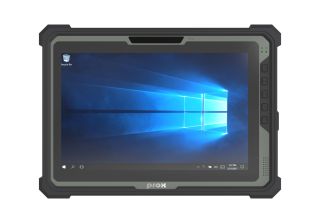

Protech MH-T01T - 10.1" Full Rugged Tablet
Levertijd:
7~8 weken
SKU
PROX-MH-T01T
● 1000 nits Sunlight Readable Display (OCA Direct bonded)
● 10.1" Full HD (1920x1200) Display
● 11th generation Intel® Core™ i3/i5/i7 processor
● IP65 and MIL-STD-810H certified
● WiFi 6E & 4G/LTE / 5G supported
● Dual Main Battery hot-swap design
● P-CAP Multi-Touch with Anti-Fingerprint and Corning Gorilla Glass (Support Finger/ Stylus/ Glove/ Raindrop)
● Wide range operating temperature
● Optional with integrated LIPS 3D Camera for Logistics dimension measurement
● Dual pass-through connector for GPS and WWAN
|
PROTECH PROX MH-T01T |
Protech’s MH-T01T 10.1” rugged tablet equipped with Intel 11th Gen i7/i5/i3 CPU, hot swap battery, MIL-STD-810H, drop test 1.5 meter to prevent serve physical damage, and IP65 rating for water resistant.
|
READY FOR EVERY ENVIRONMENT |
Protech’s MH-T01T 10.1” rugged tablet equipped with intel 11th Gen i7/i5/i3 CPU, hot swap battery, MID-STD-810H, drop test 1.5 meter to prevent serve physical damage, and IP65 rating for water resistant.
With capability to add 2D barcode scanner, front and rear camera, 3D camera for measuring, SIM card slots, MH-T01T can satisfy your needs and increase the productivity in multi applications like constructions, warehouse, transportation, and many other uses that need use a mobile device in a harsh environment.
|
INDUSTRIAL VISIBILITY |
|
The Protech MH-T01T is purpose-built for mobile workers to perform task from day to night. Like all its siblings, this device provides optimal visibility in all ambient light conditions, thanks to the 1000 nits high brightness display.
|
UNLIMITED CONNECTIVITY |
The Fully Rugged MH-T01T tablet PC is available with standard Wifi 6E, and optional with GPS and 4G LTE / 5G communication.
|
A PERFECT FIELD TABLET |
Equipped with the latest and complete communication technology, mobile workers can experience precise positioning, faster processing, broader coverage and more stable data transfer.
Meer informatie
Art.nr.
PROX-MH-T01T
Fabrikant
Protech
Land van herkomst
Taiwan
Operating System
Windows 11 IoT
Windows 10 IoT
Windows 11 Professional
Rugged Features
IP65 per IEC 60529, MIL-STD-810H
Vibration, shock and 1.5m drop resistance
Tumble Test: 1000 tumbles, 0.5 m, per IEC 60068-2-32
Operating temperature : -20° C to +60° C
Humidity: 10% ~ 90% non-condensing
CPU
Intel® Core™ i5-1145GRE (4C) 1.50 GHz
Optional:
Intel® Core™ i7-1185GRE (4C) 1.80 GHz
Intel® Core™ i3-1115GRE (2C) 2.20 GHz
Intel® Celeron® 6305E (2C) 1.80 GHz
Memory
8GB DDR4 SDRAM , optional 16GB DDR4 SDRAM
Storage
128GB PCIE M.2 SSD, optional 256GB/512GB/1TB PCIE M.2 SSD
VGA Controller
Intel® UHD Graphics (i3 / Celeron)
Intel® Iris® Xe Graphics (i5 / i7)
Scherm
10.1” TFT LCD WUXGA (1920 x 1200), Corning Gorilla Glass
1000 nits sunlight readable
30,000 hours backlight Lifetime
P-CAP Multi-Touch with Anti-Fingerprint (Support Finger/ Stylus/ Glove/ Raindrop)
LCD Optical Clear Adhesive direct bonding with Touch
X Bay
Expansion Slot 1 options for 2D barcode, COM port, USB 3.0 Type A, MicroSD card or LAN port
Expansion Slot 2 options for 3D Camera, Card Reader or Fingerprint Reader
Media Bay
N/A
Pointing Device
P-CAP Multi-Touch with Anti-Fingerprint (Support Finger/ Stylus/ Glove/ Raindrop)
Expansion Slots
Expansion Slot 1 options for 2D barcode, COM port, USB 3.0 Type A, MicroSD card or LAN port
Expansion Slot 2 options for 3D Camera, Card Reader or Fingerprint Reader
Memory Card Reader
Optional for expansion slot 1 Micro SD Card reader
Smart Card Reader
Optional smart card reader for Expansion Slot 2
I/O Ports
2 MP Front Camera (optional, Windows hello Camera)
8 MP Rear Camera
1 x USB 3.0 Type A
1 x USB 3.0 Type-C for Charging with PD/Data Transmission/ Display
1 x USB 3.0 Type A (optional)
1 x Headset (Headphone out/ Mic-in combo)
1 x Dual-Nano-SIM 4G LTE (optional) / 5G (optional)
DC-in x 1
Expansion Slot 1 options:
2D barcode reader (Honeywell N4680), COM port, USB 3.0 Type A, MicroSD card or LAN port
Expansion Slot 2 options:
3D Camera, Card Reader or Fingerprint Reader
Communication Interface
Wi-Fi 6E (802.11ax)
Bluetooth V5.x
GNSS (GPS/ GLONASS)
Optional 4G LTE/ 5G (Sub-6G)
Bluetooth V5.x
GNSS (GPS/ GLONASS)
Optional 4G LTE/ 5G (Sub-6G)
Beveiliging
TPM 2.0
Cable lock slot
Optional Fingerprint reader
Optional smart card reader
Power
AC adapter (65W, 100-240V AC, 50/60Hz)
2 x hot-swappable Li-ion battery (10.8V / 2330mA)
*The default is for 65W AC adapter, 65W Type-C adapter is optional available.
Dimensions & Weight
274 x 195 x 22 mm, 1.28 kg (Tablet only)
Environmental Spec
Operating temp: -10°C to 50°C
Storage temp: -20°C to 60°C
Humidity: 10% to 90% RH, non-condensing
Storage temp: -20°C to 60°C
Humidity: 10% to 90% RH, non-condensing
