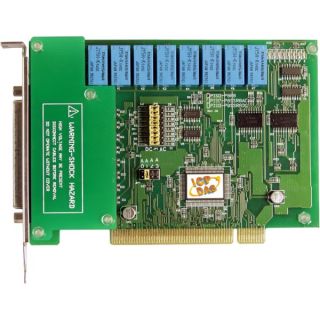

ICPDAS PISO-P8R8
8-channel Relay Output with isolated digital input Board
● 8 Relay output channels
● 8 Optical isolated digital input channels
● DC signal input with filter or W/O filter
● AC Signal input with filter
The PISO-P8R8 is an 8-channel isolated input/output interface board for the PCI-Bus computers.The PISO-P8R8 provides 8 electromechanical relay outputs and 8 optically isolated inputs, while PISO-P8SSR8AC and PISO-P8SSR8DC can be used in various applications including contact closure, external-voltage sensing,external-switch sensing and loading switching and designed for one 37-pin D-Sub connector. It can be installed in a 5 V PCI slot and can support truly "Plug & Play".
The PISO-P8R8 supports various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32-Bit, Vista 32-Bit and Windows 7 32-Bit. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.
SOFTWARE:
● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 95/98/NT/2K
● DLL and OCX SDK for 32-bit Windows XP/2003/Vista and 32-bit Windows 7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows
● Driver for Linux
APPLICATIONS:
● Factory Automation
● Product Test
● Laboratory Automation
| Isolation Voltage | 3750 Vrms (Photo-couple) | ||||
| Channels | 8 | ||||
| Input Voltage |
|
||||
| Response Speed |
|
| Channels | 8 | ||||
| Relay Type | SPST N.O. (Form A) | ||||
| Contact Rating |
|
||||
| Operating Time | 6 ms (Typical) | ||||
| Release Time | 3 ms (Ttypical) | ||||
| Insulation Resistance | 1000 MΩ | ||||
| Life |
|
| Bus Type |
PISO-P8R8: 5 V PCI, 32-bit, 33 MHz PISO-P8R8U: 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
||
| Data Bus | 8-bit | ||
| Card ID |
PISO-P8R8: No PISO-P8R8U: Yes (4-bit) |
||
| I/O Connector |
|
||
| Dimensions (l x w x d) | 149 x 105 x 22mm | ||
| Power Consumption | 300 mA @ +5 V | ||
| Operating Temperature | 0 °C ~ 60 °C | ||
| Storage Temperature | -20 °C ~ 70 °C | ||
| Humidity | 5 ~ 85% RH, non-condensing |
