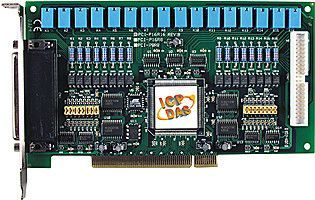

ICPDAS PCI-P16R16

Levertijd:
2~7 dagen
SKU
PCI-P16R16

16-channel isolated digital input, 16-channel Relay output


● 16 Relay output channels
● 16 Optical isolated digital input channels
● DC signal input with filter or without
● AC Signal input with filter



The PCI-P16R16 provides 16 optically isolated inputs and 16 Relay outputs. The PCI-P16R16 has those two 37-pin D-Sub connector. It can be installed in a 5 V PCI slot and can support truly "Plug & Play".

The PCI-P16R16 supports various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32-Bit, Vista 32-Bit and Windows 7 32-Bit. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.


SOFTWARE:


● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 95/98/NT/2K
● DLL and OCX SDK for 32-bit Windows XP/2003/Vista and 32-bit Windows 7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows
● Driver for Linux

Meer informatie
Art.nr.
PCI-P16R16
Fabrikant
ICPDAS
Digital Input
Isolation Voltage 3750 Vrms (Photo-couple)
Channels 16
Input Voltage
Logic 0: AC/DC 0 ~ 1 V
Logic 1: AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz)
Response Speed
Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz (Typical)
Relay Output
Channels 16
Relay Type 8 SPDT, 8 SPST
Contact Rating
AC:120 [email protected] A
DC: 24 V@1 A
Operating Time 5 ms (typical)
Release Time 10 ms (typical)
Insulation Resistance 100 MΩ
Life
Mechanical: 5.000.000 ops.
Electrical: 100.000 ops.
Algemeen
Bus Type 5 V PCI, 32-bit, 33 MHz
Data Bus 16-bit
Card ID No
I/O Connector
Female DB37 x1
40-pin box header x1
Dimensions (l x w x d) 183 x 105 x 22mm
Power Consumption 800 mA @ +5 V
Operating Temperature 0 °C ~ 60 °C
Storage Temperature -20 °C ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing
