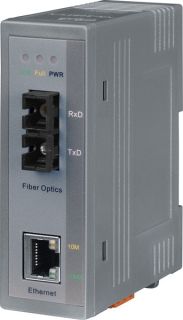

ICPDAS Industrial Fiber Media Converter NS-200AFCS-T

Levertijd:
2~7 dagen
SKU
NS-200AFCS-T

Industrial 10/100 Base-T to 100 Base-FX Media Converter; 1 single mode, SC connector (RoHS)

● Automatic MDI/MDI-X crossover for plug-and-play
● Supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 1.4 Gbps high performance memory bandwidth
● Frame buffer memory: 256 Kbit
● 1024 MAC addresses
● Supports +10 VDC ~ +30 VDC
● Reverse Polarity Protection
● Supports operating temperatures from -30 °C ~ +75 °C
● Slim packaging fits on your DIN-Rail


Brochure EN

The NS-200AFCS-T series is an Ethernet (10/100Base-TX) to Fiber Optic (100Base-FX) converter. The Ethernet supports 10/100M auto-negotiation feature and auto MDI/MDI-X function.

The NS-200AFCS-T series is available in models that support an operating temperature of 0 °C ~ 70 °C, and an extended operating temperature of -30 °C ~ 75 °C and accepts a wide voltage range from +12V ~ 48V DC.


Meer informatie
Art.nr.
NS-200AFCS-T
Fabrikant
ICPDAS
Technology
Standards IEEE802.3, 802.3u, 802.3x
Processing Type Store & forward; wire speed switching
MAC Addresses 1024
Memory Bandwidth 1.4 Gbps
Interface
RJ45 port 10/100BaseT(X) auto negotiation speed, Full duplex mode,
and auto MDI/MDI-X connection
Fiber port 100 Base-FX (SC/ST connectors)
LED Indicators 10/100M, Link/Act, Full duplex (Fiber Port)
Ethernet Isolation 1500 Vrms 1 minute
Frame Ground for EMS Protection Yes
Single Mode
Single-mode fiber cables: 8.3/125, 8.7/125, 9/125 or 10/125 μm
Distance: NS-200AFCS-T: 30 km NS-200AFCS-60T: 60 km
Wavelength: 1300 or 1310 nm
Min. TX Output: NS-200AFCS-T: -15 dBm NS-200AFCS-60T: -5 dBm
Max. TX Output: NS-200AFCS-T: - 8 dBm NS-200AFCS-60T: 0 dBm
RX Sensitivity:
NS-200AFCS-T: -34 dBm NS-200AFCS-60T: -35 dBm
Ethernet Transmission Distance
Ethernet: 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100 Ω
Fast Ethernet: 2-pair UTP/STP Cat. 5, EIA/TIA-568 100 Ω
Power
Input Voltage Range +10 ~ +48 VDC (Non-isolation)
Power consumption 0.12 A @ 24 VDC, ±5% arrowed with 100M Full duplex
LED Indicator Yes
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Mechanical
Case Plastic
Flammability UL 94V-0
Dimensions (w x h x d) 33 x 107 x 85mm
Installation DIN-Rail Mounting
Environmental
Operating Temperature -30 °C ~ +75 °C
Storage Temperature -30 °C ~ +85 °C
Humidity 10% ~ 90% RH, non-condensing
