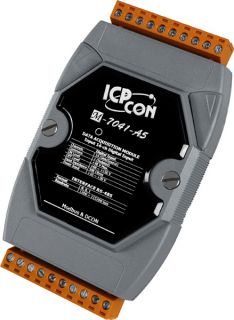

ICPDAS M-7041-A5

Levertijd:
2~7 dagen
SKU
M-7041-A5

14-channel High Voltage Isolated Digital Input Module

● 150V High Voltage Digital Inputs
● Sink- or Source-type Digital Inputs
● Photocouple Isolation
● All Channels Can Be Used As 16-bit Counters
● 4 kV ESD Protection ● 3750 VDC Isolation Voltage
● Built-in Dual Watchdog
● Wide Operating Temperature Range: -25 ~ +75°C
● All Types of On/Off Control
● Industrial Automation
● Industrial Machinery
● Building Automation
● Food and Beverage Systems
● Semiconductor Fabrication
● Control Systems

The M-7041(D)-A5 provides 14 channels for high voltage digital input, each of which features photocouple isolation. The input voltage level could be as high as 150V. In addition, either sink- or source-type digital input can be selected via wire connections, and all channels are able to be used as 16- bit counters. The M-7041D-A5 has 14 LED indicators for DI channel status monitoring. 4 kV ESD protection and 3750 VDC intra-module isolation are standard. The M-7041(D)-A5 support both the Modbus RTU and DCON protocols, which can be confi gured via software.
Meer informatie
Art.nr.
M-7041-A5
Fabrikant
ICPDAS
Digital Input/Counter
Channels 14
Contact Wet
Sink/Source (NPN/PNP) Sink/Source
Wet Contact

On voltage level: +68 ~ +150 VDC

Off voltage level: +48 VDC max.

Dry Contact

On voltage level: -

Off voltage level: -

Counters

Max. count: 65535 (16-bit)

Max. input frequency: 100 Hz

Min. Pulse Width: 5 ms

Input Impedance 50 KΩ
Interface
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
Dual watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicators
System LED Indicator Yes, 1 LED as power/communication indicator
I/O LED Indicator -
Protocol
Support Modbus and DCON Protocol No, only DCON
Power
Input Voltage Range 10 ~ 30 VDC
Power Consumption 0.2 W
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 10 ~ 95% RH, non-condensing
