Axiomtek Panel PC GOT321B-ADL-WCD

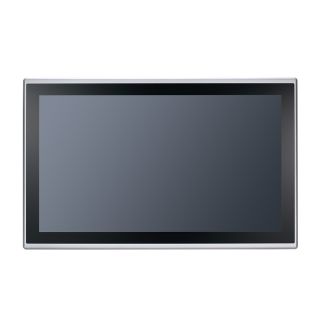

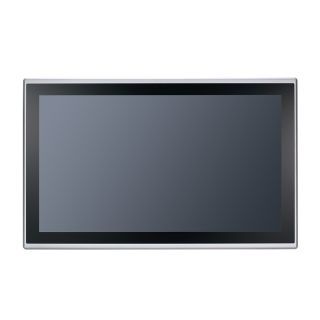

The GOT321B-ADL-WCD is a sleek 21.5" FHD TFT LCD multi-touch panel PC, offering fanless operation and support for LGA1700 socket 13th/12th gen Intel® Core™ i7/i5/i3 or Pentium® processor. It is equipped with M.2 Key E and PCIe Express Mini Card slots for easy integration of Wi-Fi modules, perfect for enhancing connectivity in factory automation and oil pipe monitoring systems. 21.5" FHD TFT LCD with projected capacitive touch The 21.5" FHD TFT LCD touch panel PC supports a brightness of 400 nits, providing crisp FHD resolution display capability. Its fanless design and flat-panel touch screen enhance user intuitiveness, ensuring a seamless and user-friendly experience.
The GOT321B-ADL-WCD support 9 to 36V DC power input with power ignition on/off delays to prevent power instability, ensuring stable operation and protection from sudden voltage spikes, Axiomtek panel computers are designed to integrate and optimize various applications seamlessly. They feature a flexible I/O module window that can be configured with optional COM ports and DIO, providing customers with maximum adaptability to their specific needs. Additionally, multiple mounting solutions such as panel mount, wall mount, VESA mount, and desktop stand allow users to choose the option that best suits their application.

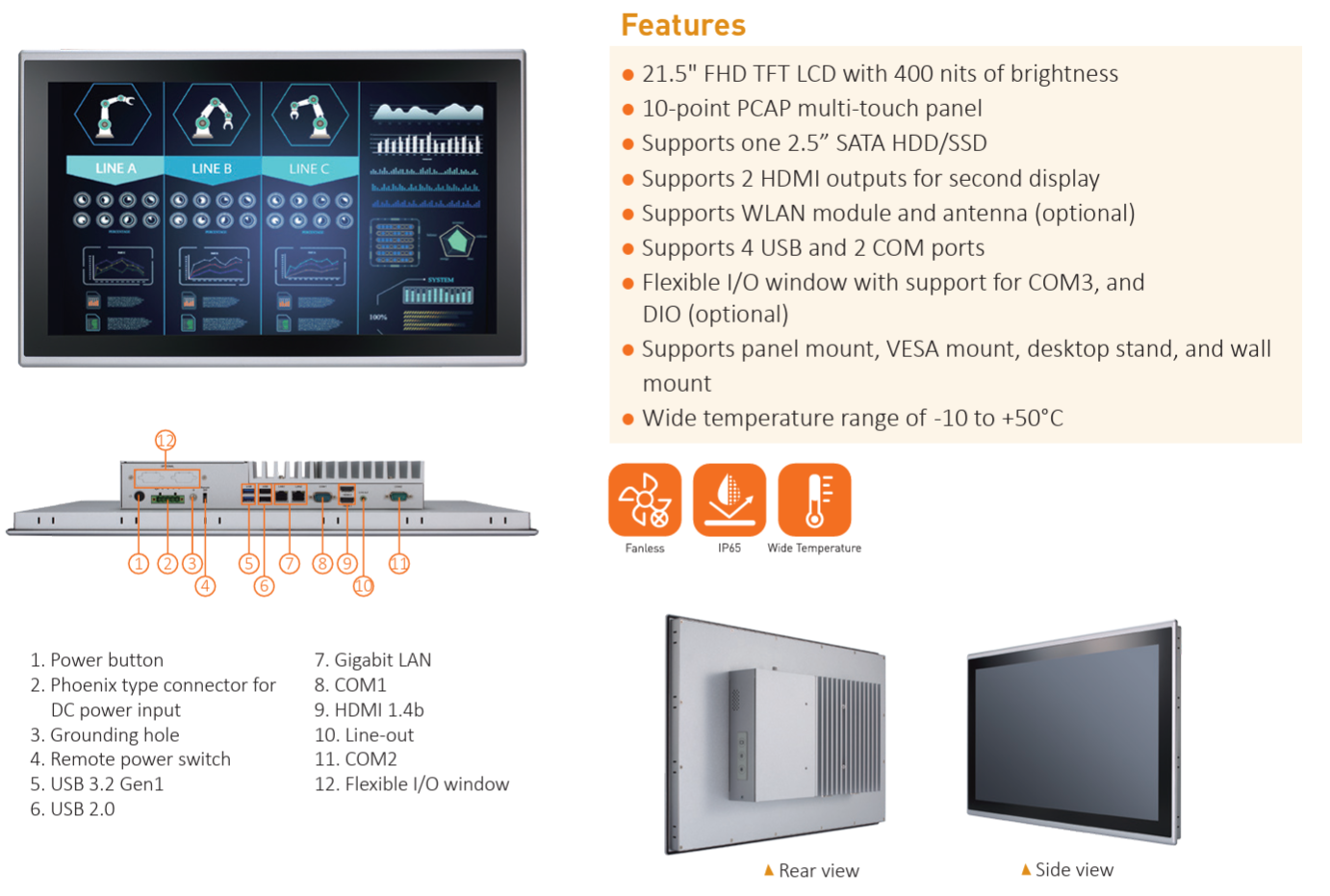

Axiomtek’s GOT321B-ADL-WCD support one 260-pin DDR4-3200 SO-DIMM slot with up to 32GB of system memory and one 2.5" SATA HDD/SSD. They also include an M.2 Key E 2230 slot with PCIe x1 and USB 2.0, as well as a PCI Express Mini Card slot for add-on devices like WLAN modules. The ruggedized panel PCs come with rich I/O interfaces including one 9-pin D-sub Male RS-232/422/485, one RS-232, one RJ-45 2.5Gb Base-T Ethernet, one RJ-45 1Gb Base-T Ethernet, two USB 3.2 Gen1 ports, two USB 2.0 ports, one HDMI 1.4, and one Line out. Additional features include a Phoenix-type connector for DC power input, a switch for power on/off, a remote power switch, and a grounding hole. Additionally, it supports TPM 2.0 for a higher level of security capabilities. The GOT321B-ADL-WCD also provide mainstream OS support including Windows 10/11, Windows 10/11 IoT, and Linux to facilitate the development of unique applications.
