Axiomtek Panel PC GOT317B-ADL-TRD

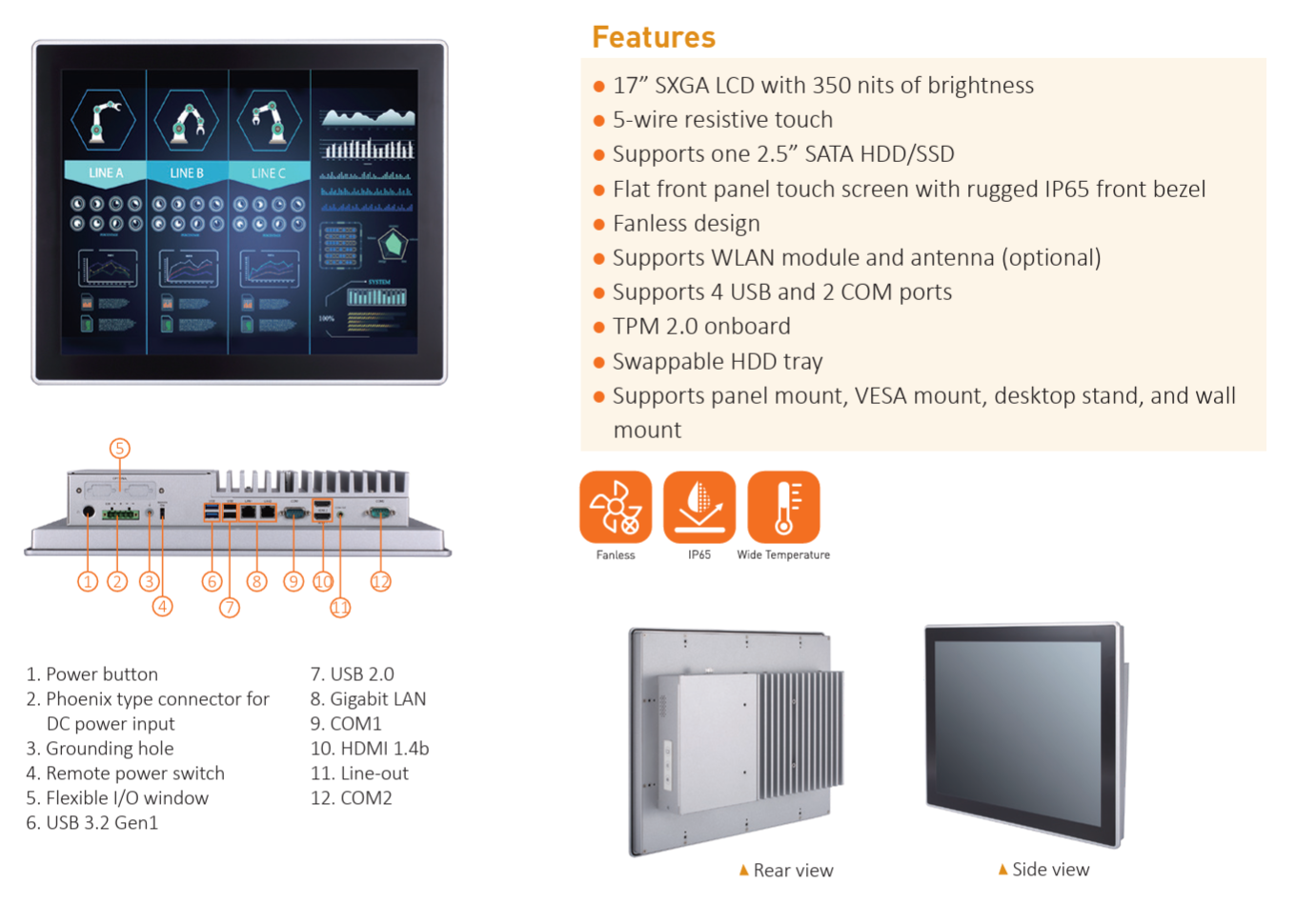

● 5-wire resistive touch
● Supports one 2.5” SATA HDD/SSD
● Flat front panel touch screen with rugged IP65 front bezel
● Fanless design
● Supports WLAN module and antenna (optional)
● Supports 4 USB and 2 COM ports
● TPM 2.0 onboard
● Swappable HDD tray
● Supports panel mount, VESA mount, desktop stand, and wall mount

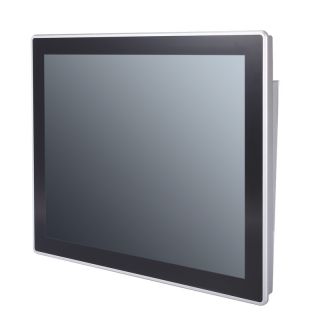

The GOT317B-ADL-TRD is a versatile touch panel PC featuring a fanless design and a17-inch SXGA LCD display. It supports the LGA1700 socket 13th/12th gen Intel® Core™ i7/i5/i3 or Pentium® processor. Additionally, it offers M.2 Key E and PCIe Express Mini Card slots for effortless integration of add-on devices including Wi-Fi modules, making it an ideal choice for applications such as factory automation and oil pipe monitoring systems. 17" SXGA LCD with 5-wire resistive touch The 17-inch SXGA touch panel PC supports a brightness of 350 nits, enabling HD resolution content display. Its fanless design and flat-panel touch screen enhance usability, enabling intuitive operation and ensuring a user-friendly experience.
The GOT317B-ADL-TRD supports 12V to 24V DC power input with power ignition on/off delays to prevent power instability while simultaneously enabling the equipment can start up and operate correctly and also helps to avoid equipment damage caused by sudden voltage spikes, Axiomtek's new panel computer GOT317B-ADL-TRD is designed to facilitate seamless integration and optimization of various applications. It features a flexible I/O module window, providing customers with maximum flexibility to adapt to their specific needs. Several mounting solutions such as wall mount, VESA mount, and desktop stand that users can choose the most suitable mounting options for their application.
Axiomtek’s GOT317B-ADL-TRD has one 260-pin DDR4-3200 SO-DIMM slot with up to 32GB system memory and supports one 2.5" SATA HDD/SSD. It features an M.2 Key E slot and a PCI Express Mini Card slot for easy integration of add-on devices such as WLAN modules. The ruggedized panel PC comes with rich I/O interfaces including one 9-pin D-sub Male RS-232/422/485, one RS-232 via cable, one RJ-45 2.5Gb Base-T Ethernet, one RJ-45 1Gb Base-T Ethernet, two USB 3.2 Gen1 ports, two USB 2.0 ports, two HDMI 1.4ports, and one Line out. It also supports one Phoenix-type connector for DC power input, one switch for power on/off, one remote power switch, and one grounding hole. Additionally, it supports TPM 2.0 for a higher level of security capabilities. The GOT317B-ADL-TRD also provides mainstream OS support including Windows 10/11, Windows 10/11 IoT, and Linux to facilitate the development of unique applications.
