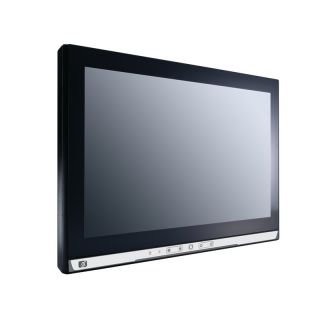

Fanless Touch Panel Computer - GOT5153W-834
15.6" WXGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor J1900
● 15.6” WXGA wide screen TFT LCD display
● 15.6” projected capacitive touch or 5W flat resistive touch
● Fanless design with Intel® Celeron® Processor J1900 [email protected]
● Supports 2.5” SATA HDD & CFast™ or mSATA
● Supports 2 Giga LAN, 4 USB and 2 COM ports
● IP65 front bezel and IPX1 full enclosure
● Supports optional VESA arm/desktop stand/ wall mount
● Supports RFID or smart card reader (optional)
The GOT5153W-834 is a 15.6" Intel® Celeron® processor fanless touch panel computer.
In response to market demand, this panel computer is a cost effective solution. It adopts a modern, sleek and fanless design and is equipped with a 15.6" TFT LCD as well as Intel® Celeron® processor J1900 4 cores up to 2.42 GHz (Bay Trail). For wireless network connection, the GOT5153W-834 offers 2 mini card slots. By just plugging in a mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments. Besides, it provides two types of power input. One is DC power input (9~36VDC) with terminal block connector, and the other is AC power adapter with screw type connector.
Slim & light design
The GOT5153W-834 is slim and light weight which make it fit for limited space installation.
Built-in internal WLAN antenna
The GOT5153W-834 provides 2 mini card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5153W-834 in wireless LAN/GPRS/GPS/4G environment.
Support front membrane keys
The GOT5153W-834 provides 5 membrane keys in front of system, people can adjust the system display, volume and brightness.
| Display Type | 15.6" WXGA TFT LCD With LED backlight |
| Brightness (cd/m2 ) | 300 nits |
| Resolution | 1366 x 768 |
| CPU | Intel® Celeron® processor J1900 4 cores (up to 2.42 GHz) |
| System Memory | 1 x 204-pin DDR3 up to 8 GB |
| Storage | 1 x 2.5" SATA HDD 1 x CFast™ 1 x mSATA |
1 x Switch for power on/off
2 x USB 2.0
2 x USB 3.0
1 x VGA
1 x Audio (Line-out)
2 x 10/100/1000 Mbps Ethernet (Intel® i210IT)
1 x Full-Size Mini PCI Express Mini Card with SIM Slot
AC version: 100-240V AC-DC 60W power adapter
Storage temperature: 0°C ~ +60°C
Relative humidity: 20% ~ 90% @ 40°C; non-condensing
Operation vibration: 2G, 10 ~ 500Hz, random for CFast™ card
Windows 10 Professional
Windows Embedded 7 Standard
Windows 10 IoT Enterprise
