Axiomtek Panel PC GOT3157W-834-PCT
Levertijd:
3~4 weken
SKU
GOT3157W-834-PCT

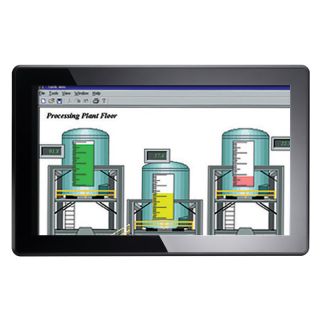

15.6" WXGA TFT Fanless Multi Touch Panel Computer with Intel® Celeron® Processor J1900 (-10°C ~ +50°C)
● 15.6" WXGA TFT with projected capacitive multi-touch
● Fanless design with Intel® Bay Trail-D Processor J1900
● Supports 2.5” SATA HDD, CFast™ or mSATA
● Supports 4G, WLAN module & antennas (optional)
● Supports 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 2 COM ports
● IP65 flat front bezel and rugged design
● Supports panel mount and optional VESA arm/desktop stand/ wall mount
● Supports wide temperature range of -10°C ~ +50°C
● Adjust RS-232/422/485 setting via BIOS
The GOT3157W is a 15.6" WXGA fanless touch panel computer. By supporting a wide temperature range from -10°C ~ +50°C, it can be used in any harsh environment. The unit adopts 15.6" WXGA TFT-LCD and low power consumption Intel® Celeron® processor.
With the growing demand of wireless application, it provides one Mini card slot for wireless network connection. By just plugging in the Mini card WLAN card, customers
have instant access wireless LAN. This model is suitable for many applications including transportation, train, control platform of ships, heavy industry, and oil pipe monitoring systems.
Wide-temperature (-10°C ~ +50°C) supported
The 15.6-inch industrial panel PC GOT3157W adopts unique extended temperature technology, with a temperature range from -10°C ~ +50°C, with fanless cooling system
and compact design for harsh environment.
WLAN antenna supported (optional)
The GOT3157W provides a Mini card slot and WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the unit in
a wireless environment.
Meer informatie
Art.nr.
GOT3157W-834-PCT
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Front Bezel
IP65 front bezel
LCD Panel
| Display Type | 15.6" WXGA TFT LCD |
| Brightness (cd/m2 ) | 400 nits |
| Resolution | 1366 x 768 |
Main System
| CPU | CPU Intel® Bay Trail-D Celeron®Processor J1900 4C (up to 2.42 GHz) |
|
Onboard Graphics |
Integrated Intel® GFX |
| System Memory | 1 x 204-pin DDR3L SO-DIMM max.up to 8 GB |
| Storage | 1 x 2.5" SATA HDD 1 x CFast™ 1 x mSATA |
BIOS
AMI UEFI BIOS
Watchdog Timer
255 levels, 0~255 sec.
I/O Connector
| COM |
2 x RS-232/422/485 |
| USB |
2 x USB 3.0 |
| Ethernet |
2 x 10/100/1000Mbps |
| Audio |
Line out |
Expansion Interface
1 x Full-Size Mini PCI Express Mini Card with mSATA supported
1 x Full-Size Mini PCI Express Mini Card with SIM Slot
1 x Full-Size Mini PCI Express Mini Card with SIM Slot
Camera
N/A
Touchscreen
Projected capacitive multi-touch
Power Supply
DC version : 9~36VDC
AC version : 12VDC w/adapter
Grootte
396mm (W) x 53.9mm (D) x 186mm (H)
Weight (net/gross)
5.0KG / 7.0KG
Environmental
Operating temperature: -10°C ~ +50°C
Storage temperature: -20°C ~ +60°C
Relative humidity: 20% ~ 90% @ 40°C; non-condensing
Operation vibration: 2G, 10 ~ 500Hz, random for CFast™ card
Certification
CE
Operating System
Windows 7 Professional
Windows 8.1 Professional
Windows Embedded 7 Standard
Windows Embedded 8 Standard
