Axiomtek Rackmount Chassis AX61222TP

Levertijd:

2~7 dagen

SKU

AX61222TP

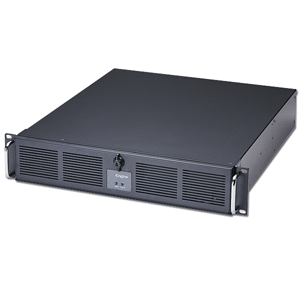

2U Compact Rackmount Chassis

● 2U rackmount design in depth of 450 mm
● PICMG SBC structure with 5 free slots for expansion
● Front-accessible one 5.25" HDD drive bay, one slim-line CD-ROM, one 3.5" HDD drive bay, max. up to 2 internal 3.5" HDD drive bays

Brochure EN

Details

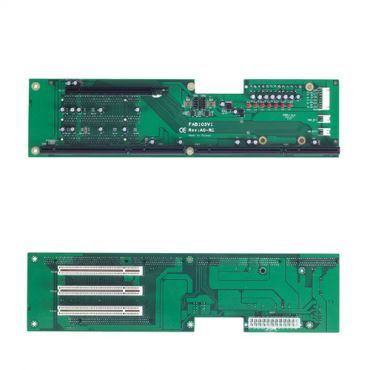

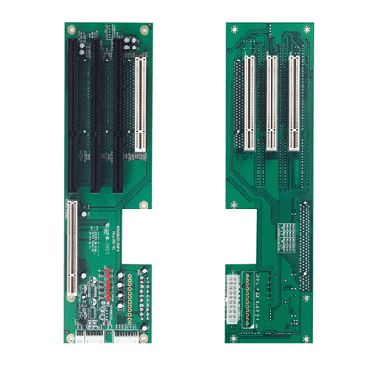

The Axiomtek Rackmount Chassis AX61222TP is a compact 2U-high rackmount industrial computer chassis designed for space-limit applications. Axiomtek Rackmount Chassis AX61222TP can accommodate a five-PCI/ISA backplane and have easy-to-replace fans and filter on the front panel. The front access I/O ports and drive bays are designed for ease access and maintenance. Furthermore, they have various power supply can be chose, such as 300W ATX (HRP/PFC), 400W ATX(PFC) and 500W ATX (PFC), upon the system requirement.

SPECIFICATIES

Meer informatie

Art.nr.

AX61222TP

Fabrikant

Axiomtek

Land van herkomst

Taiwan

Standard Color

Black

Construction

Heavy-duty cold-rolled steel

Drive Capacity

- Exposed 1 x slim-line CD-ROM; 1 x 3.5" HDD drive bay; 1 x 5.25" HDD drive bay; internal 1 x 3.5" HDD drive bay

or

- Exposed 1 x slim-line CD-ROM; 1 x 3.5" HDD drive bay; internal 3 x 3.5" HDD drive bay

Cooling

2 x 8 cm ball-bearing fans (42.5 CFM/each) with a removable filter

Front Panel Indicators

Power on/off; HDD

Front Panel Controls

Power on/off; system reset

Front Panel Connectors

2 x USB ; 1 x PS/2 6-pin

Pre-punched Panel

Rear: 1 x 9-pin

Centralized Monitoring System

N/A
