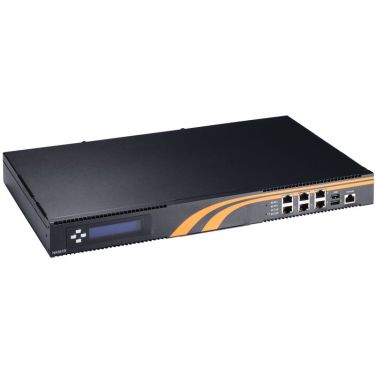

Rackmount Network Appliance

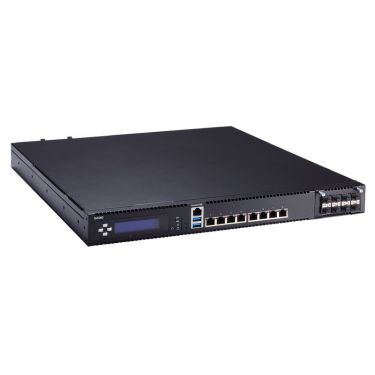

1U network appliance 8 GbE LANs, 2 x 10 GbE SFP+ and 2-pair LAN Bypass

● Intel® Xeon® processor D-1527/Pentium® processor D1508 onboard (Broadwell-DE)
● Four DDR4-2400 R-DIMM/U-DIMM, up to 128GB memory
● Max. up to 24 10/100/1000 Mbps Ethernet ports and two 10 GbE SFP+ ports
● Two expandable LAN modules supporting 1 GbE/10 GbE/ Fiber/Copper/Bypass (optional)
● Supports 1U redundant power supply for optional
● Supports IPMI/TPM 1.2 (onboard) for optional
● Suitable for enterprise firewall, network bandwidth controller and UTM applications

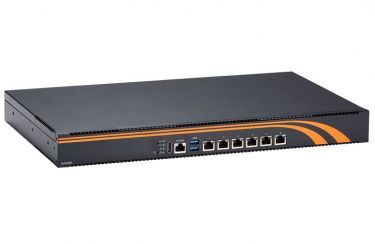

1U rackmount appliance with Intel® Celeron® N3350 or Atom™ x5-E3940 processor and 6 GbE LANs

● 1U rackmount compact design
● Intel® Celeron® processor N3350 or Intel® Atom™ x5-E3940 processor (Apollo Lake SoC)
● One DDR3L-1866 SO-DIMM, up to 8GB memory
● Six 10/100/1000 Mbps Ethernet ports (Intel® i211 Ethernet Controllers)
● One 2.5" SATA3 HDD
● Suitable for VPN, network bandwidth controller and firewall applications

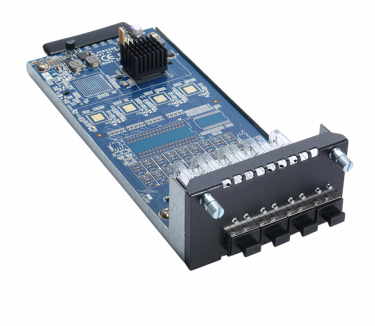

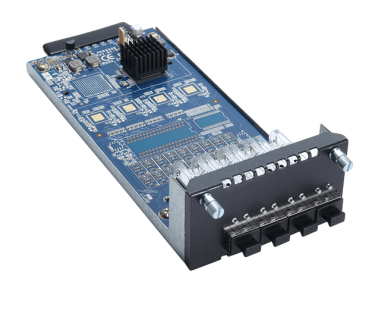

4-port GbE Copper/Fiber LAN Module

● Intel® i350 Ethernet controller (AX93336-4GIL & AX93336-4FI) & Intel® i211 Ethernet controller (AX93336-4GI)
● 4 RJ-45 ports
● 4 SFP ports
● 2-group LAN Bypass
● PCIe x8 extension bus
● Suitable for Axiomtek's NA361R, NA362R, NA552, NA570, NA580, NA720, NA850, NA860

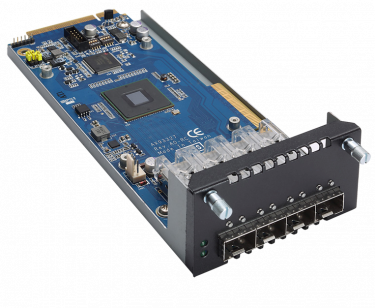

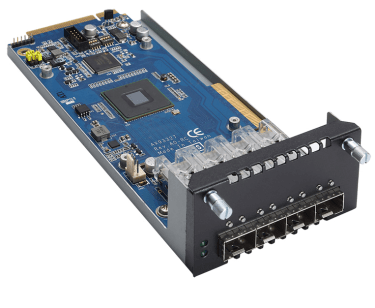

4-port 10GbE Fiber LAN Module

● Intel® XL710 Ethernet controller
● 4 10GbE SPF+ ports
● PCIe x8 extension bus
● Suitable for Axiomtek's NA361R, NA362R, NA552, NA570, NA580, NA720, NA850, NA860

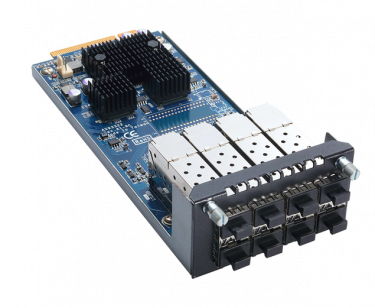

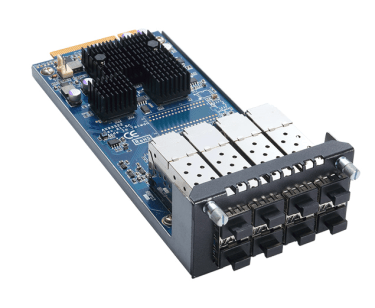

8-port GbE Copper/Fiber LAN Module

● Intel® 82580EB Ethernet controller
● 8 SFP ports (AX93322-8FI), 4 RJ-45 + 4 SFP ports (AX93322-8MIL)
● 2-group LAN Bypass (AX93322-8MIL)
● PCIe x8 extension bus
● Suitable for Axiomtek's NA361R, NA362R, NA552, NA570, NA580, NA720, NA850, NA860

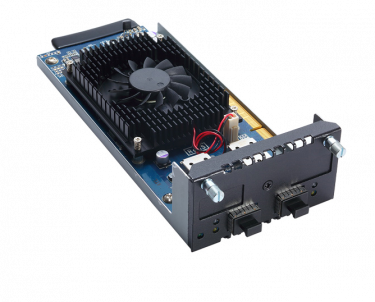

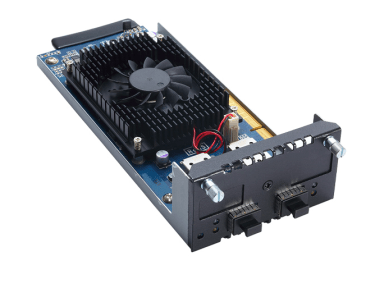

 2-port 10GbE Fiber LAN Module

● Intel® 82599ES Ethernet controller
● 2 x 10 GbE SFP+
● 1-group LAN Bypass (AX93307-2FIL)
● PCIe x8 extension bus
● Suitable for Axiomtek's NA361R, NA362R, NA552, NA570, NA580, NA720, NA850, NA860

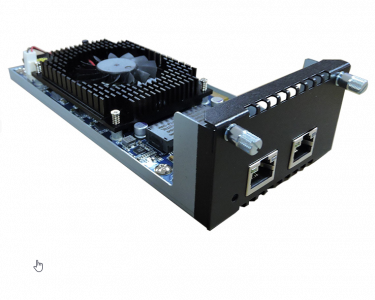

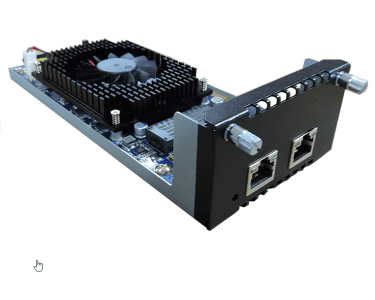

2-port 10GbE Copper LAN Module

● Intel® X540 Ethernet controller
● 2 x 10GbE BaseT RJ-45
● 1-group LAN Bypass
● PCIe x8 extension bus
● Suitable for Axiomtek's NA361R, NA362R, NA552, NA570, NA580, NA720, NA850, NA860

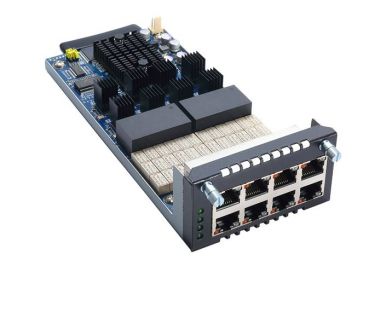

8-port GbE Copper LAN Module

● Intel® i210 Ethernet controller
● 8 RJ-45 ports
● 4-group LAN Bypass
● PCIe x8 extension bus
● Suitable for Axiomtek's NA361R, NA362R, NA580, NA720, NA850, NA860

1U Rack-mount Network Appliance Platform with LGA1151 Socket Intel® Xeon® E3/Core™ Family Processor and 8 LANs

● LGA1151 socket 6th gen Intel® Xeon® E3/Core™ family processor (Skylake)
● Four DDR4-2400 U-DIMM, up to 64GB memory
● Max. up to eighteen 10/100/1000 Mbps Ethernet ports (Intel® i210)
● One expandable LAN module supporting 1G/10G/Fiber/Copper/Bypass
● Supports 1U redundant power supply for optional
● Supports IPMI/TPM 1.2 module for optional
● Suitable for network security, cloud computing and data centers applications

1U rackmount Network Appliance Platform with Intel® Atom™ Rangeley Processor and 6 LANs

● Intel® Rangeley Soc up to 2.4 GHz with 4M L2 cache processor
● Supports 6 10/100/1000 Ethernet ports (i354 & i210)
● Supports Bios redirected to COM port feature
● Supports up to two 2.5’’ SATA2 HDD
● Supports Intel® Quick Assist Technology
● Supports Intel® DPDK enabling software
● Suitable for VPN, network bandwidth controller, firewall and UTM applications

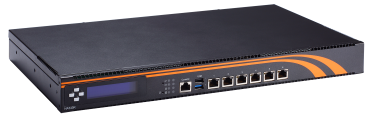

1U Rackmount Network Appliance Platform with Intel® Celeron® Processor J1900 up to 2.42 GHz and 6 LANs

● Intel® Celeron® J1900 Bay Trail up to 2.42 GHz processor
● Six 10/100/1000Mbps Ethernet ports (Intel® i211)
● BIOS redirected to COM port
● Two 2.5" SATA HDD, one 3.5” SATA HDD (optional)
● BIOS redirected to COM port feature
● Suitable for VPN, network bandwidth controller, firewall applications
