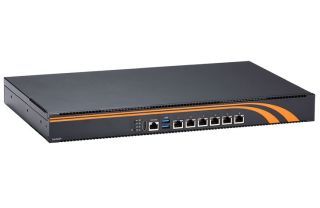

Axiomtek 1U Rackmount Network Appliance NA345R

Levertijd:
2~7 dagen
SKU
NA345R

1U rackmount appliance with Intel® Celeron® N3350 or Atom™ x5-E3940 processor and 6 GbE LANs

● 1U rackmount compact design
● Intel® Celeron® processor N3350 or Intel® Atom™ x5-E3940 processor (Apollo Lake SoC)
● One DDR3L-1866 SO-DIMM, up to 8GB memory
● Six 10/100/1000 Mbps Ethernet ports (Intel® i211 Ethernet Controllers)
● One 2.5" SATA3 HDD
● Suitable for VPN, network bandwidth controller and firewall applications



An Intel® Apollo Lake-based 1U Network Appliance with 6 Gigabit LANs

The NA345R is a 1U rackmount network appliance supporting the Intel® Celeron® processor N3350 or the Intel® Atom™ x5-E3940 processor (formally codename: Apollo Lake).
The reliable network security platform features six Gigabit Ethernet ports using Intel® i211 Ethernet controller, and one pair of LAN bypass function. It comes with one DDR3L-1866 SO-DIMM slot with up to 8GB non-ECC memory. Optionally, one 2.5-inch SATA3 HDD and one mSATA are available for sufficient storage. Bringing high security and high reliability at a low cost, the new power-efficient network appliance is aimed for VPN, network bandwidth controller and firewall applications.

As more and more devices are connecting to each other through the internet, network security becomes a critical issue impacting almost every individuals and enterprises. With a super slim design, Axiomtek’s NA345R allows stable operation with its powerful computing ability and rich OS compatibility to safeguard customers’ data and network,” said Jack Chen, a product manager of Product PM Division at Axiomtek.

To keep system running smoothly, the six-port 1U rackmount network appliance is equipped with a built-in watchdog timer which features 255 levels for system reset and 7 levels for LAN bypass. Furthermore, it comes with one HDMI port for high definition display, two USB 3.0 ports for external devices, one console port for device network management, and six RJ-45 Gigabit LAN ports for network connections. The LED indicators of the network security platform are available for convenient monitoring of power, HD, and LAN activity. Finally, the quad-core Intel® Apollo Lake-based network appliance is compliant with Win10 and Linux.


Advanced Features:
● 1U rackmount compact design
● Intel® Celeron® processor N3350 or Intel® Atom™ x5-E3940 processor (Apollo Lake SoC)
● One DDR3L-1866 SO-DIMM, up to 8GB memory
● Six 10/100/1000 Mbps Ethernet ports (Intel® i211 Ethernet Controllers)
● One 2.5" SATA3 HDD
● Suitable for VPN, network bandwidth controller and firewall applications


Meer informatie
Art.nr.
NA345R
Fabrikant
Axiomtek
CPU
Intel® Celeron® N3350 or Atom™ x5-E3940 processor (Apollo Lake)
Chipset
SoC Integrated
Memory
1 x DDR3L SO-DIMM socket. Max up to 8 GB non-ECC
BIOS
AMI SPI Flash BIOS
HDD Interface
1 x 3.5" SATA HDD (optional)
Network Interface
6 x 10/100/1000 Mbps Ethernet (Intel® i211) LAN Bypass function through latch relay (one pair)
SSD
1 x 2.5" SATA 3 HDD
1 x mSATA
I/O Interface
1 x RS-232 (RJ-type)
2 x USB 3.0
6 x RJ-45
1 x HDMI
Watchdog Timer
255 stepping for system reset 7 stepping for LAN Bypass
Power Supply
65W Open Frame
Form Factor
1U RACKMOUNT
LED
Power, HDD, Link/Act with transfer rate, LAN bypass (optional), GPIO programmable
Environmental
Operating Temp. 0°C ~ +45°C
Humidity 10% ~ 95% RH, non-condensing
Chassis Material
Steel
Grootte
44 mm (H) x 430 mm (W) x 250 mm (D)
Weight (net/gross)
7 kg/8 kg
Certification
FCC class B/CE class B
