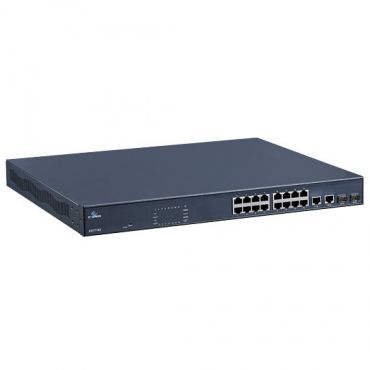

EtherWAN Ethernet Switch EX17162A
Unmanaged 16-port 10/100BASE-TX PoE and 2-port combo Gigabit SFP Ethernet Switch
● 16 10/100TX ports support 15.4W (IEEE802.3af) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Internal Universal Power Supply 100VAC to 240VAC, 50 to 60HZ
● Operating Temperature Range 0°C to 45°C (32°F to 113°F)
EtherWAN's 17162A provides an 18-port switching platform supporting IEEE802.3af Power over Ethernet, high performance switching with features required for small-business or enterprise environments where sustained connectivity is crucial.
The EX17162A is equipped with 16 10/100BASE-TX PoE ports, in combination with two Gigabit SFP combo ports. The EX17162A is feature rich with full wire speed throughput, making the EX17162A Series a powerful network switch.
The IEEE802.3af PoE ports provide up to 15.4W/port with a total power budget of 260W, making the switch truly versatile for connecting with PoE Powered Devices (PD) with different bandwidth and power consumption requirements.
| Standards | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3x, IEEE802.3ab 1000BASE-T, IEEE802.3z 1000BASE-SX/LX, IEEE802.3af PoE |
| Forward and Filtering Rate | 14,880pps for 10Mbps 148,810pps for 100Mbps 1,488,100pps for 1000Mbps |
| Packet Buffer Memory | 2.75M bits |
| Processing Type | Store-and-Forward Half-duplex back-pressure and IEEE802.3x full-duplex flow control |
| Address Table Size | 4096 MAC addresses |
| Ethernet Port | 10/100BASE-TX: 16 PoE ports Gigabit: 2 ports |
| LED Indicators | Per Unit: Power Status Per Port: 10/100TX: Link/Activity, PoE Act/status Gigabit: Link/Activity, 1000M |
| Input | 100 - 240VAC, 50 / 60Hz |
| Power Consumption | Device: Max. 12W (without PoE) PoE power budget: 246.4W Max. |
| PoE Power Output |
IEEE802.3af: up to 15.4W/port, 47 - 55VDC, 350mA Max. |
| Casing | Metal case |
| Dimensions (w x h x d) | 440mm (W) x 330mm (D) x 44mm (H) (17.6" (W) x 13.2" (D) x 1.76" (H)) Standard 19" rack-mount size, one-unit-height |
| Weight | 4.3Kg (9.481lbs.) |
| Installation | Rack Mounting |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 10 to 90% (non-condensing) |
| ISO | Manufactured in an ISO9001 facility |
| Emission Compliance | FCC Part 15, Class A, CE mark Class A |
