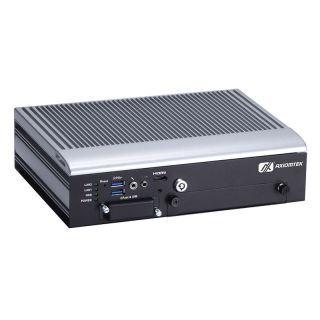

Axiomtek tBOX322-882-FL

Levertijd:
Uit voorraad leverbaar
SKU
tBOX322-882-FL
€ 1.352,00 Excl. BTW

Fanless Embedded System with 4th Generation Intel® Core™ Processor for Railway PC

● 4th Generation Intel® Core™ i7 onboard (Haswell)
● High performance DDR3L-1600 8 GB memory onboard
● EN50155, EN50121 certificates
● Fanless with operating temperature range of -40°C ~ +70°C (EN50155 class TX)
● Isolated RS-232/422/485 and DIO
● Supports USB 3.0 and SATA3
● 1 removable & lockable 2.5 SATA HDD and 1 CFast™
● 3 internal PCI Express Mini Card slot and 2 SIM slots
● Lockable I/O interface and M12 LAN, audio, power and USB connector
● Comply to fire protection of railway vehicles Europe standard PrCEN TS 45545-2
● Suspension designed for HDD

The tBOX322-882-FL fanless railway embedded PC is based on 4th generation Intel® Core™ i7 rocessor with wide temperature capability from -40°C to +70°C. Certified with EN50155, EN50121 and complied with the standard of railway vehicles fire protection – PrCEN TS 45545-2, the high-computing embedded system is well suited for IoT & M2M-related applications such as onboard devices controller, train management, gateway, security surveillance and rolling stock environments. To keep all cables tightly secured, the tBOX322-870-FL has standard M12 connectors for Ethernet ports, USB ports, power input, and audio port. What is notable is that the graphics performance is now merely up to two times higher than previous generation, with the latest quad core processor, allowing faster and better information display.

Meer informatie
Art.nr.
tBOX322-882-FL
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Standard Color
Silver-Black
Construction
Aluminum extrusion and heavy-duty steel, IP40
CPU
4th Generation Intel® Core™ processor onboard; 4th Gen. Intel® Core™ i7-4650U (1.7 GHz up to 3.3 GHz) or 4th Gen. Intel® Core™ i3-4010U (1.7 GHz)
System Memory
DDR3L-1600 4 GB or 8 GB DRAM onboard
Chipset
N/A
BIOS
AMI UEFI BIOS with OA 3.0 built
System I/O Outlet

2 x 10/100/1000Mbps Ethernet (M12 female A-coded)
(Intel®
I210IT)
2 x isolated RS-232/422/485
1 x isolated DI/DO (4-IN/4-OUT)
2 x USB 2.0 (rear side) (M12 connector)
2 x USB 3.0 (front side)
1 x Audio (Mic-in/Line-out) (M12 or screw type)
1 x HDMI (Fixable)
1 x DVI-I
1 x VDC power input connector (M12 connector)
1 x reset switch
1 x power switch
3 x antenna opening

Watchdog Timer
255 levels, 0 ~ 255 sec.
Expansion Interface
3 x PCI Express Mini Card 2 x SIM card slot
Storage
1 x 2.5” SATA HDD (Removable and with lock protection) 1 x CFast™
System Indicator

1 x green LED for system power on
1 x blue LED for HDD active
1 x green LED for LAN1 link
1 x green LED for LAN2 link

Power Supply
Power input : 14VDC ~ 32VDC (isolation) Typical : 24VDC
Operating Temperature

-40°C ~ +70°C  W/T SSD
-25°C ~ +55°C  W/T HDD

Storage Temperature
-40°C ~ +80°C
Humidity
5% ~ 95%, non-condensing
Vibration Endurance
5 Grms w/ CFast (5-500Hz, X, Y, Z directions) 2 Grms w/ HDD (5-500Hz, X, Y, Z directions)
Grootte
244 mm (W) x 185.4 mm (D) x 70.4 mm (H)
Weight (net/gross)
2.5 kg /3.5 kg
Certification
CE (Class A), EN50155, EN50121, EN45545, EN60950 compliance
EOS Support
WES 8 WES 7 Linux
Warranty
2 Years
Axiomtek tBOX322-882-FL aanpassen
Fanless Embedded System with 4th Generation Intel® Core™ i7 processor, 8 GB DDR3-1600, 2 10/100/1000Mbps Ethernent (M12), 2 isolated COM, CFast™
Aantal

* Verplichte velden

Uw configuratie
tBOX-322-882-FL
Axiomtek tBOX322-882-FL

€ 1.352,00 Excl. BTW
