Transportation Embedded System

Transportation Embedded SystemLees meer

Axiomtek's transportation embedded systems integrate components with long product lifecycle with low power x86 CPU/chipset, unique mechanical construction and anti-vibration design, and have passed severe tests such as drop, shock, vibration, wide temperature and HIPOT. To further ensure its implementation for transportation applications, the tBOX series is certified with ISO 7637 and e13 for vehicle PC, IEC60945 for marine PC and EN50121/EN50155 for railway PC.
13 artikel(en)

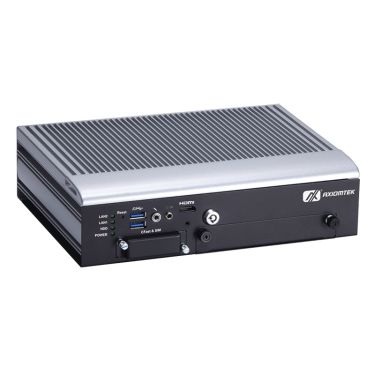

Fanless Embedded System with 7th Gen Intel® Core™ i7/i5/i3 & Celeron® Processors for Vehicle, Railway and Marine Applications

● EN 50155, EN 50121, E-Mark, ISO 7637 and DNV 2.4 certified and EN 45545-2, IEC 60945 compliant
● 7th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Codename: Kaby Lake)
● 2 optional I/O module slots
● 2 DDR4-1866/2133 SO-DIMM, up to 32GB
● Typical 12/24/110 VDC power input for different power modules, available with various transportation certificates
● Fanless design and suitability for wide operating temperatures from -40°C to +70°C
● Intelligent solution of vehicle power management
● 2 hot swappable, power control 2.5” SATA trays
● 3 PCIe Mini Card slots and 2 SIM card sockets


Fanless Embedded DVR surveillance System with Intel® Atom™ Processor E3845 for Vehicle, Railway and Marine Solutions

● CE (Class A), E-Mark and ISO 7637 certified
● EN 50155, EN 50121, and DNV 2.4, IEC 60945 compliance
● Intel® Atom™ E3845 4C@1.91 GHz
● DDR3L-1333 4GB memory onboard
● Intelligent power management solution
● 1 x audio-in + 4 x video-in BNC connector
● 1 PCIe Mini Card slot and 1 SIM card slot


Fanless Embedded System with 7th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor for Vehicle, Railway and Marine PC

● CE (Class A), FCC, EN 50155, EN 50121, E-Mark, ISO 7637, DNV 2.4 certified
● EN 45545-2, IEC 60945 compliant
● 7th generation Intel® Core™ i7/i5/i3 & Celeron® (Kaby Lake-U SoC) processors
● Modular I/O design, 4 GbE LANs (M12/RJ-45), 3/4 isolated COMs, 1 CANbus (optional)
● 2 DDR4-1866/2133 SO-DIMM, up to 32GB
● Typical 12/24/110 VDC power input for different power modules, available with various transportation certificates
● Fanless design and suitability for wide operating temperature from -40°C to +70°C
● Intelligent solution of vehicle power management
● 2 swappable 2.5” SATA drives
● 3 PCIe Mini Cards and 1 SIM card socket

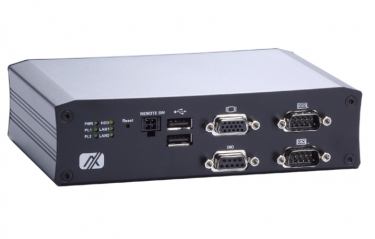

Fanless Embedded System with Intel® Atom™ Processor E3845/E3827 for Vehicle, Railway and Marine PC

● eMark, ISO7637, EN50155, EN50121 and IEC60945 certifications
● Designed especially for in-vehicle, railway and marine fields
● Intel® Atom™ E3845 4C@1.91GHz or Intel® Atom™ E3827 2C@1.75 GHz (codename: Bay Trail)
● DDR3 4 GB system memory onboard
● Fanless with wide operating temperature range of -40°C ~ +70°C (EN50155 class TX)
● Intelligent power management solution
● Compact size with rich I/Os
● DIN rail and wall mount supported
● 2 full-size PCI Express Mini Card slots, 1 SIM card socket for various applications

Fanless Embedded System with Intel® Atom™ Processor E3845 Quad Core™ (1.91 GHz) for Vehicle PC

● eMark, ISO7637 certificated, EN45545-2 complied
● Fanless operating temperature range of -40°C ~ +70°C
● Intel® Atom™ Bay Trail-I E3845 1.91GHz
● High performance DDR3L-1333 4 GB memory
● Isolated RS-232/422/485 CANbus 2.0A/B and DIO ports
● Lockable I/O interface and M12 LAN, power connector
● Supports USB 2.0 and SATA2
● Instant fuse repair design
● Suspension 2.5” SATA HDD and one CFast™
● Internal PCI Express Mini Card slot and SIM socket

Fanless Embedded System with 3rd Generation Intel® Core™ Processor and Intel® QM77 for Marine PC

● 3rd Generation Intel® Core™ i7 up to 2.8 GHz or Intel® Core™ i3 1.6 GHz processor onboard
● IEC60945 certificate
● Intel® QM77 PCH
● High performance DDR3-1600 4 GB memory onboard
● Fanless operation
● Operating temperature range of -40XC ~ +70XC
● Isolated RS-232/422/485, CAN bus and DIO
● Support USB 3.0 and SATA3
● 2 removable & lockable 2.5 SATA HDD and 1 CFast™
● 3 internal PCI Express Mini Card slot and 1 SIM slot
● Comply to fire protection of railway vehicles Europe standard PrCEN TS 45545-2

Fanless Embedded System with Intel® Atom™ Processor E3845 Quad Core™ (1.91 GHz) Railway PC

● EN50155, EN50121 certified, EN45545-2 complied
● Fanless operating temperature range of -40°C ~ +70°C(EN50155 class TX)
● Intel® Atom™ Bay Trail-I E3845 1.91GHz
● High performance DDR3L-1333 4 GB memory
● Isolated RS-232/422/485 and DIO
● Lockable I/O interface and M12 LAN, power connector
● Supports USB 2.0 and SATA2
● Instant fuse repair design
● Suspension 2.5” SATA HDD and one CFast™
● Internal PCI Express Mini Card slot and SIM socket


Fanless Embedded System with 4th Generation Intel® Core™ Processor for Railway PC

● 4th Generation Intel® Core™ i7 or Intel® Core™ i3 onboard (Haswell)
● High performance DDR3L-1600 4 GB/8 GB memory onboard
● EN50155, EN50121 certificates
● Fanless with operating temperature range of -40°C ~ +70°C (EN50155 class TX)
● Isolated RS-232/422/485 and DIO
● Supports USB 3.0 and SATA3
● 1 removable & lockable 2.5 SATA HDD and 1 CFast™
● 3 internal PCI Express Mini Card slot and 2 SIM slots
● Lockable I/O interface and M12 LAN, audio, power and USB connector
● Comply to fire protection of railway vehicles Europe standard PrCEN TS 45545-2
● Suspension designed for HDD

Fanless Embedded System with Intel® 3rd Gen. Core™ i Processor and Intel® QM77 Chipset for Vehicle PC

● 3rd Generation Intel® Core™ i7 up to 2.8 GHz or Intel® Core™ i3 1.6 GHz processor onboard

● Intel® QM77 PCH
● High performance DDR3-1600 4 GB memory onboard
● Fanless operation
● Operating temperature range of -40XC ~ +70XC
● Isolated RS-232/422/485, CAN bus and DIO
● Support USB 3.0 and SATA3
● 2 removable & lockable 2.5 SATA HDD and 1 CFast™
● 3 internal PCI Express Mini Card slot and 1 SIM slot
● Comply to fire protection of railway vehicles Europe standard PrCEN TS 45545-2
● 4X PoE Giga LAN IEEE802.3at



3rd Generation Intel® Core™ i (17W) processor onboard

● Intel® QM77 PCH
● High performance DDR3-1600 4 GB memory onboard
● Fanless operation
● Operating temperature range of -40°C ~ +70°C
● Isolated RS-232/422/485 and DIO
● Support USB 3.0 and SATA3
● 2 removable & lockable 2.5 SATA HDD and 1 CFast™
● 3 internal PCI Express Mini Card slot and one SIM slot
● Lockable I/O interface and M12 LAN and USB connector
● Comply to fire protection of railway vehicles Europe standard PrCEN TS 45545-2



Fanless Embedded System with Intel® Atom™ Processor Z510PT/ Z520PT up to 1.3 GHz for Vehicle PC

● Supports Intel® Atom™ processor Z510PT (1.1 GHz) or Z520PT (1.33 GHz)
● Intel® US15WPT chipset
● Fanless operation
● 2 x VGA
● Operating temperature range of -40 °C ~ +65 °C
● 1 isolated RS-232/422/485 and 1 isolated CAN bus (optional for RS-232)
● High performance DDR2-667 SODIMM max. up to 2 GB
● One 2.5" swappable SATA drive bay and one CompactFlash™ slot
● 3 internal PCI Express Mini Card slots

Fanless Embedded System with Intel® Core™2 Duo Processor up to 2.26 GHz and Intel® GM45 Chipset for Railway PC

● Supports onboard Intel® Core™2 Duo SP9300 processor up to 2.26 GHz
● Intel® GM45 + ICH9M chipset
● Fanless operation
● Operating temperature range of -25 °C ~ +55 °C
● 4 isolated RS-232/422/485 ports
● High performance onboard DDR3-800/1066 2 GB DRAM
● One 2.5" swappable SATA drive bay, 1 internal SATA drive bay and one CompactFlash™
● 2 internal PCI Express Mini Card slots with one SIM slot
● Lockable I/O interface and M12 LAN connector

Fanless Embedded System with Intel® Core™2 Duo processor T5600 1.8Ghz for Vehicle PC

● Intel® Core™2 Duo T5600 1.8Ghz
● Intel® 945GME+ICH7M chipset
● ISO-7637 Pulse1/2a/3a/3b/4/5a vehicle standard
● Wide-range vehicle power supply with ignition control
● Fanless operation design with full feature I/O
● High performance DDR2 SODIMM max. up to 2 GB
● Supports 2 PCI Express Mini Cards
● One 2.5" SATA drive bay and CompanctFlash™ slot
