Machine Vision & AI
Axiomtek Vision System Series
De Vision System Series van Axiomtek is speciaal ontworpen voor toepassingen zoals vision-inspectie, begeleiding, meting en identificatie. Deze systemen ondergaan uitgebreide compatibiliteitstesten om mogelijke integratieproblemen te elimineren, waardoor een naadloze implementatie mogelijk wordt. Ontworpen voor fabrieksautomatisering, helpen ze gebruikers de ontwikkelings- en arbeidskosten te verlagen en de implementatie van systemen te versnellen. Met de vision-systemen van Axiomtek krijgen uw automatiseringsprocessen vanaf het begin meer precisie en efficiëntie.
Vraag Persoonlijk Advies of een Offerte aan
Fieldworks Direct B.V. helpt u graag bij het vinden van het juiste Axiomtek vision-systeem voor uw toepassing. Neem contact met ons op via +31 (0) 73 624 1111 voor persoonlijk advies, of vraag direct een offerte aan via onze website.

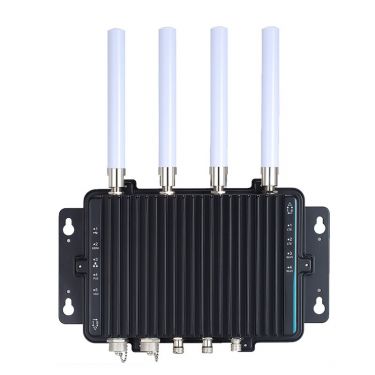

eBOX800-900-FL Rugged IP67-rated Fanless Edge System with LTE modem€ 1.125,00 Excl. BTWRugged IP67-rated Fanless Edge System with NVIDIA® JETSON™ TX2, 1 HDMI, 1 GbE LAN, 1-CH PoE, 1 USB 2.0 and 100 to 240 V AC Power input
● IP67-rating for outdoor use
● NVIDIA® JETSON™ TX2 with Pascal™, 256 CUDA cores GPU
● High AI computing performance for GPU-accelerated processing
● -30°C to +60°C operating temperature range
● 100 to 240 VAC wide range power input with 10kV surge protection
● 4 N-jack antenna openings with water proof design
● Features M12 lockable I/Os
● 1 IEEE 802.3at GbE LAN port (30W)
● Rich I/O options for customized designs and mission-critical projects
Fanless Edge AI System with NVIDIA® JETSON™ TX2 Series SoM● NVIDIA® Jetson™ TX2 with Pascal™, 256 CUDA cores GPU
● High performance AI computing for GPU-accelerated processing
● Ideal for machine learning and computer vision
● Supports M.2 PCIe & SATA SSD and MicroSD slot
● Supports 2 USB 3.1 Gen 1 and 2 COM or 2 CAN
● Wide operating temperature from -30°C to +60°C
● JetPack supported

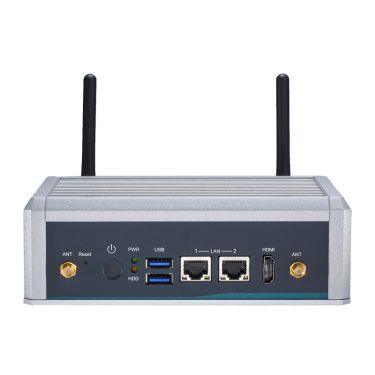

Fanless Edge AI System with NVIDIA® JETSON™ Xavier NX● NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
● High AI computing performance for GPU-accelerated processing
● Ideal for edge AI smart city applications
● Supports one 15W GbE PoE for camera
● Wide operating temperature from -30°C to +50°C
● JetPack supported
● Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon

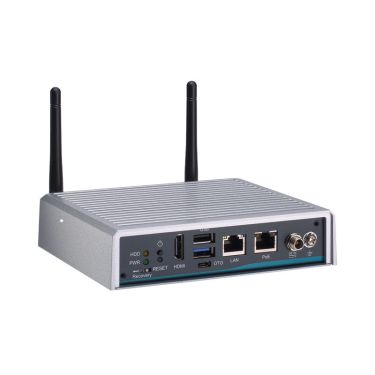

Fanless Edge AI System with NVIDIA® NVIDIA® Jetson™ Nano● NVIDIA® Jetson™ Nano with Maxwell™ architecture with 128 NVIDIA CUDA® cores
● High AI computing performance for GPU-accelerated processing
● Ideal for edge AI smart city applications
● Optional IP42 cover kit for semi-outdoor applications
● Supports one 15W GbE PoE for camera
● Wide operating temperature from -30°C to +60°C
● JetPack supported

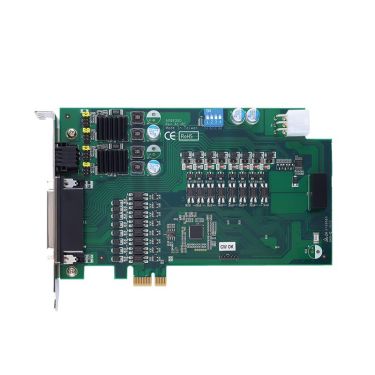

AX92350 - Real-Time Vision I/O Card with Multifunction● Integrated vision I/O4-CH trigger input4/8-CH trigger output4-CH LED lighting control (LED trigger output channels are defined by software settings)1-CH quadrature encoder input8-CH isolated DI, 8 CH isolated DO1-CH auto measurement function● Programmable interrupt functions● PCI Express x1 compliant● Flexible design for vision inspection
AX92320 - 2-port/4-port PCI Express GigE Frame Grabber Card● PCI Express x4 compliant
● 2 or 4 independent Gigabit PoE ports
● Supports 9.5KB Jumbo Frame and IEEE 1588
● Compliant with IEEE802.3at to deliver 30W at 54 VDC per port
● Up to 20/120W PoE power from PCIe 6-pin ATX power connector
● 0°C to +60°C operating temperature range
● PoE power management software
● Supports LAN port smart on/off

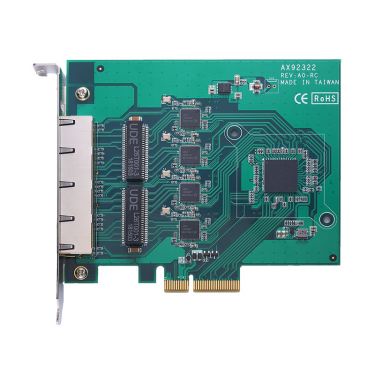

AX92322 - 2-port/4-port GigE PCI Express Card● 2 or 4 independent Intel® Ethernet Controller i210-AT
● Supports 9.5KB Jumbo Frame and IEEE 1588
● Supports two or four GbE LAN ports
● PCI Express x4 interface
● Operating temperature from 0˚C to 70°C

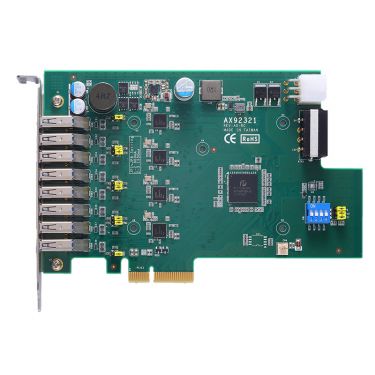

AX92321 - 4-port/8-port USB 3.0 PCI Express Card with 4 Independent Host Controllers● Four or eight USB 3.0 ports
● Four independent USB 3.0 host controllers
● 900 mA/1500 mA max. per port configurable via jumper settings
● Compliant with USB 3.0 Rev.1.0 and Intel® xHCI Rev.1.0
● PCI Express x4 interface
● Operating temperature from 0˚C to 70°C
● Supports Windows® 7/10
● Supports each port’s power on/off via software settings

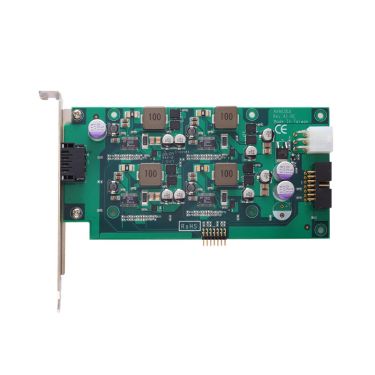

AX92353 - 4-CH Lighting Control Module● 4-CH independent constant current LED drivers (up to 1 A)● Supports strobe and trigger mode● Intensity control by software● Supports duration and delay time for LED output

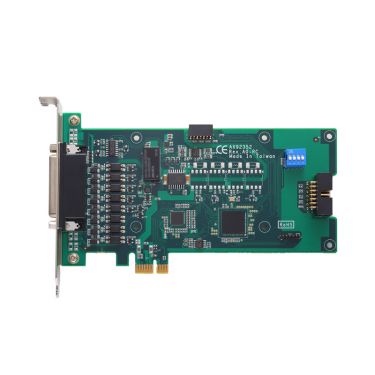

AX92352 - 2-CH Encoder Card with Real-time Trigger I/O● Synchronizes devices via real-time I/O
● Applied to area scan and line scan applications
● Integrates multiple I/O
2-CH 32-bit incremental quadrature encoder input
4-CH trigger input
4-CH trigger output
8-CH isolated DI, 8-CH isolated DO
● Programmable interrupt functions
● PCI Express x1 compliant

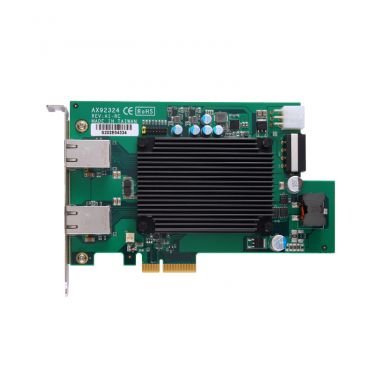

AX92324 - 2-port 10GbE PoE PCI Express Card● Intel® Ethernet Controller X550-AT2, up to 10 Gbps data rate
● Supports 15.5KB Jumbo Frame and IEEE 1588
● Compliant with IEEE802.3at to deliver 25.5W per port
● PCI Express x4 compliant
● PoE power on/off via Power Manager software and API
● Operating temperature range from 0°C to 55°C

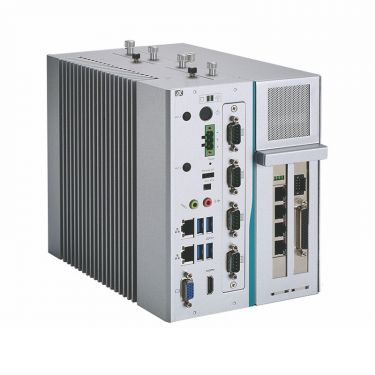

Vision System with Intel® Core™ i7/i5/i3 Processor, Intel® H110 chipset, 4 PoE, 4 USB 3.0, and Real-time Vision I/O● Integrated real-time vision I/O
● Supports camera interfaces
● Power input: 24 VDC (uMin=19V/uMax=30V)
● -10°C to +55°C operating temperature range
● Supports 2 swappable 2.5" HDD
● Supports optional WLAN module & antenna
● Supports TPM 2.0 function
● Compact & front I/O design

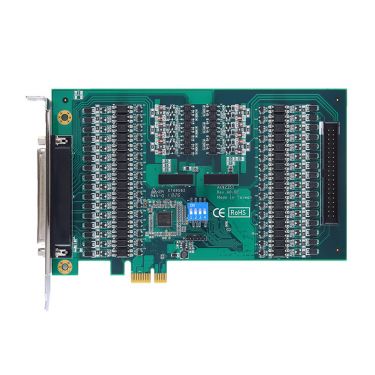

AX92351 - 32-CH/64-CH Isolated Digital I/O PCI Express Card with Digital Filter● 16-CH or 32-CH isolated digital input (compatibility: sink and source)● 16-CH or 32-CH isolated digital output (with output status read back)● Interrupt capability (smart interrupt)● Digital filter function● Supports board ID

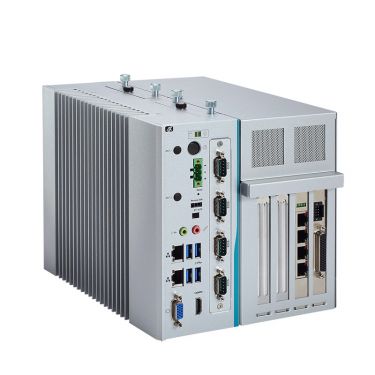

Vision System with Intel® Core™ i7/i5/i3 Processor, Intel® H110 chipset, 4 PoE, 4 USB 3.0, and Real-time Vision I/O● Integrated real-time vision I/O
● Supports camera interfaces
● RAID 0,1
● -10°C to +55°C operating temperature range
● Supports 2 swappable 2.5" HDD
● Supports optional WLAN module & antenna
● Supports TPM 2.0 function
● Compact & front I/O design
● 1 x PCIe x16 Gen3, 1 x PCIe x4 Gen3

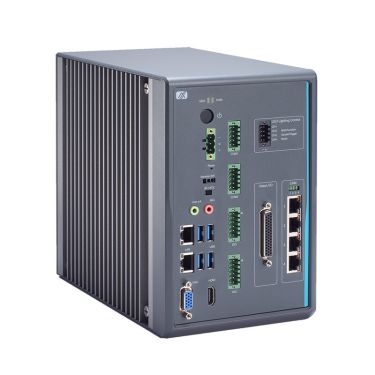

Fanless Vision System with 7th/6th Gen Intel® Core™ i7/i5/i3 Processor, Intel® H110, Vision I/O, 4-CH PoE and 4-CH LED Output● Integrated real-time vision I/O
● 4 IEEE802.3at GbE LAN ports (PoE)
● Power input: 24 VDC (uMin=19V/uMax=30V)
● -10°C to +60°C operating temperature range with W.T. SSD
● Supports 2 swappable 2.5" HDD
● Supports TPM 2.0 function

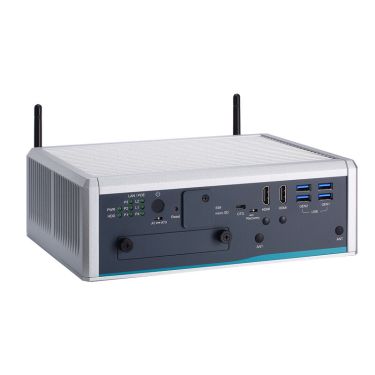

Fanless Edge AI System with NVIDIA® Jetson AGX Xavier™ SoM● NVIDIA® Jetson AGX Xavier™ with 512-core Volta GPU with 64 Tensor cores GPU
● High AI computing performance for GPU-accelerated processing
● Ideal for intelligent edge applications, AGV, AMR and computer vision
● Supports M.2 NVMe PCIe x4 SSD slot
● Wide operating temperature from -30°C to +50°C
● JetPack supported

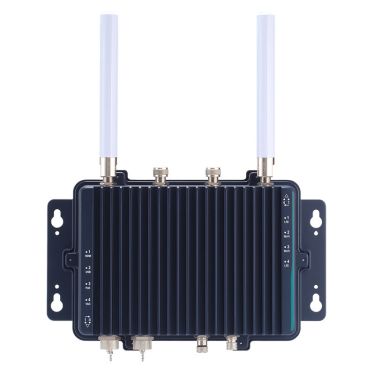

Axiomtek AIE800-904-FL - Rugged IP67-rated fanless edge AI systemRugged IP67-rated Fanless Edge AI System with NVIDIA® Jetson Xavier™ NX, 1 HDMI, 1 GbE PoE, 1 USB and 100 to 240 VAC Power Input
● IP67-rated design, specifically for outdoor environments
● NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
● High AI computing performance for GPU accelerated processing
● -30°C to +50°C operating temperature range
● 100 to 240 VAC wide range power input with 10kV surge protection
● 4 N-jack antenna openings with waterproof design
● Features M12 lockable I/Os
● 1 IEEE 802.3at GbE PoE (30W)
