Fanless Vision System with 7th/6th Gen Intel® Core™ i7/i5/i3 Processor, Intel® H110, Vision I/O, 4-CH PoE and 4-CH LED Output

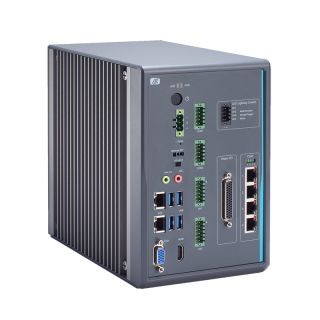

The MVS900-511-FL has scalable processing powers with a choice of LGA1151 socket 7th/6th generation Intel® Core™ processors or Celeron® processor (up to 65W) with the Intel® H110 chipset. This high-performance machine vision system can operate under sequential control and can be synchronized with four cameras. Meanwhile, the MVS900-511-FL enables easy integration of any light source.

Its integrated lighting controller comes with both the strobe mode and trigger mode, which can support various kinds of LEDs and reduce the overall cost of system integration. These advanced features allow system integrators to configure and deploy vision applications faster and easier.

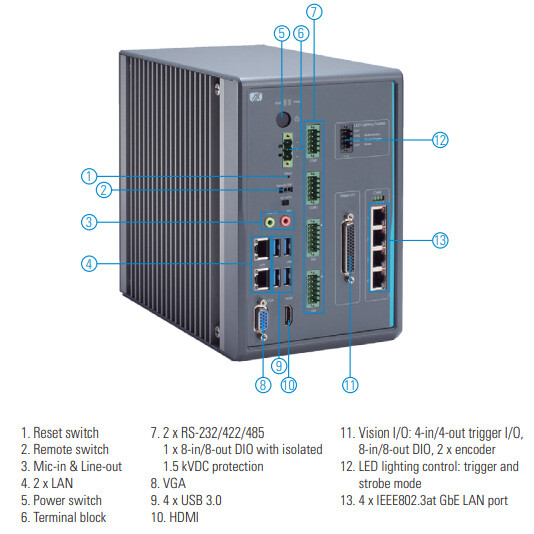

The intelligent MVS900-511-FL comes with dual DDR4-2133/2400 unbuffered SO-DIMM sockets for up to 32GB of system memory. Two 2.5" swappable HDDs are available for extensive storage needs. It is feature-rich with four PoE, two GbE LAN, two RS-232/422/48, one isolated 8-in/8-out DIO, four USB 3.0, one HDMI, one VGA, one Mic-in, one Line-out and one internal USB connector. It also includes a power switch, a remote switch, a reset switch, a 3-pin terminal block, and an AT/ATX quick switch. This reliable vision system also supports Trusted Platform Module (TPM) 2.0 for enhanced security.
