Axiomtek PICO500
6th Generation Intel® Core™ i7/i5/i3 and Celeron® Processor Pico-ITX SBC with HDMI/LVDS, 1 GE & Audio
● 6th Generation Intel® Core™ i7/i5/i3 processors (Codename: Skylake-U)
● 1 DDR4 SO-DIMM supports up to 16GB memory capacity
● 1 USB 2.0 port and 1 Gigabit LAN port
● 1 Full-size Mini Express Card with mSATA supported
● Wide range temperature support from -20°C to +70°C
● Intel® AMT 11 supported
● Pico-ITX small form factor with rich I/O and advanced features

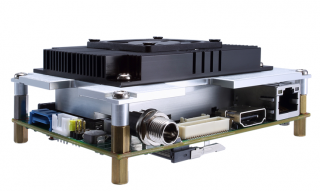

The PICO500, an extreme compact pico-ITX embedded board, supports the latest 14nm 6th generation Intel® Core™ i7/i5/i3 processors (Codename: Skylake-U). The tiny PICO500 is equipped with one DDR4 SO-DIMM with up to 16 GB memory capacity. Integrated with Intel® HD graphic engine, the Pico-ITX motherboard supports HDMI and 18/24-bit dual channel LVDS that delivers a whole new level of Ultra HD 4K visual experiences.
Its Pico-ITX form factor allows for an extremely compact performance system; meanwhile, the PICO500 is built to withstand wide temperature conditions, ranging from -20°C to +70°C with active thermal solution.
| CPU |
6th Generation Intel® i7/i5/i3 & Celeron® processor onboard |
| System Memory | 1 x 260-pin DDR4-2133 SO-DIMM max. up to 16 GB |
| Chipset | |
| BIOS | AMI |
| SSD | N/A |
| Watchdog Timer | 255 levels, 1~255 sec. |
| Expansion Interface |
1 x Full-Size Mini PCI Express Mini Card with mSATA |
| Battery | Lithium 3V/ 220mAH |
| Power Input |
DC power jack connector |
| Power Requirements | |
| Size | 100 x 72mm |
| Board Thickness | 1.6mm |
| Operation Temperature | -20°C ~ +70°C, operation |
| Humidity | 10% ~ 95% relative humidity, non-condensing |
| MIO | N/A |
| SATA | 1 x SATA-600 |
| Hardware Monitoring | Detect CPU/System temperature and voltage |
| Ethernet |
1 port 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot |
| Audio | HD Codec audio as MIC-in/Line-out with Realtek ALC662 |
| USB | 1 x USB 2.0 |
| SMBus | System Management Bus for advanced monitoring/control |
| Digital I/O | N/A |
| TPM | N/A |
| Chipset |
Intel® HD Graphics |
| Memory Size | Share system memory |
| Display Interface |
1 x LVDS; 18/24-bit single/dual channel |
