CAN Bus Modules

Module with one programmable CAN port, WinPAC Series MCU CAN port library, 80186 80MHz CPU, 8 KB DPRAM, 512 KB flash, 512 KB SRAM, 120 Ω terminal resister selected by switch

● Support WinPAC-8000 series MCU (driver for LinPAC and iPAC series MCU will be available soon)
● Follow ISO11898-2 specification
● NXP SJA1000T CAN controller
● NXP 82C250 CAN transceiver
● CAN controller frequency:16 MHz
● 2500 vrms photo-isolation protection on CAN side
● Switch for 120Ω terminator resistor of CAN bus
● One CAN communication port
● Compatible with CAN specification 2.0 parts A and B
● Provide default baud rate: 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, and 1 Mbps

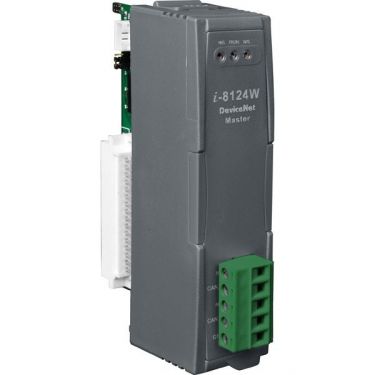

1 Port DeviceNet Master Module with dual port RAM

● 3 indication LEDs (Error,Status,Bus LEDs)
● Programmable Master MAC ID
● Programmable transfer-rate 125K, 250K, 500K
● Support maximum nodes up to 64
● Support Group 2 and UCMM functions
● The maximum Fragment number is (Input/Output) up to 64
● Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
● Support Auto-scan slave device function
● Support on-line add device into and remove device from network
● Support Auto-Reconnect when the connection is broken

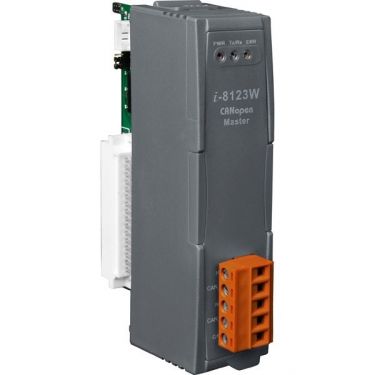

1 Port High Performance CANopen Master Module

● Programmable baud :10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1 Mbps.
● Support Node Guarding protocol and Heartbeat protocol
● Support auto and manual add slave function
● Provide user-define ISR function
● Support master listen-mode
● Demos are provided
● 256 records CANopen message receive buffer size
● 2500 Vrms poto-isolation protection on CAN side
● 3 indication LEDs (PWR, Rx/Tx and ERR LEDs)
