Analog I/O Modules

8-channel Analog Input Module

● 14-bit 100 KHz AD Converter
● Internal or External Trigger

8-channel Analog Input Module

● 14-bit 100 KHz AD Converter
● Internal or External Trigger

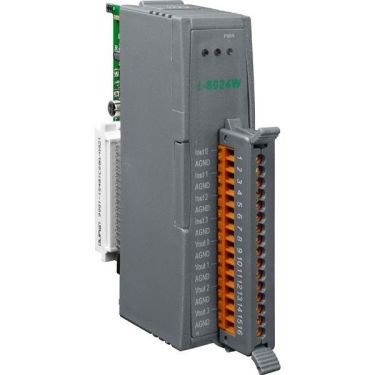

4-channel 14-bit Analog Output Module

4-channel 14-bit Analog Output Module (Gray Cover)

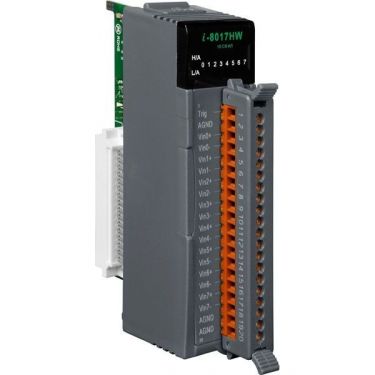

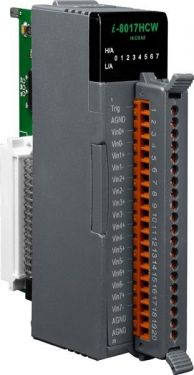

14-bit 100 K sampling rate 8/16-channel analog input module


● 14-bit 100 KHz AD Converter
● Internal or External Trigger

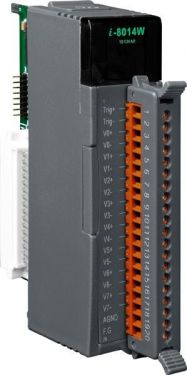

16-bit 250K sampling rate 8/16-channel analog input module


● 16-bit 250KHz ADC converter
● 16 single-ended/8 differential inputs (jumper selectable)
● 4K-samples FIFO buffer
● External trigger mode: post-trigger
● Input Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±20 mA
● Internal/external trigger start
● Magic Scan Type
