CAN Bus Modules

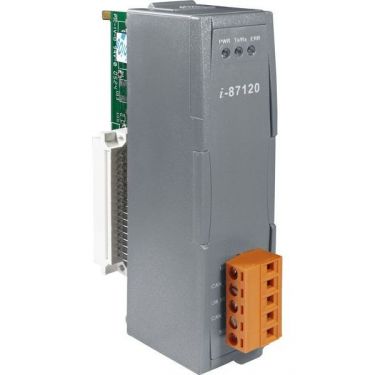

Module with one programmable CAN port, I-8000/Wincon/Lincon/WinPAC CAN port library, 80186 80 MHz CPU, 512K flash, 512K SRAM, 120 Ω; terminal resister selected by jumper

● CPU: 80186, 80 MHz
● Philips SJA1000 CAN controller with 16 MHz clock
● Philips 82C250 CAN transceiver
● Power LED, Tx/Rx LED, Error LED
● 120 Ω terminal resister selected by jumper
● CAN bus interface: ISO 11898-2, 5-pin screw terminal with on-board optical isolator protection
● 2500 Vrms isolation on CAN side
● Power Consumption: 2 W
● Operating Temperature: -25 °C ~ +75 °C
● Storage Temperature: -30 °C ~ +85 °C

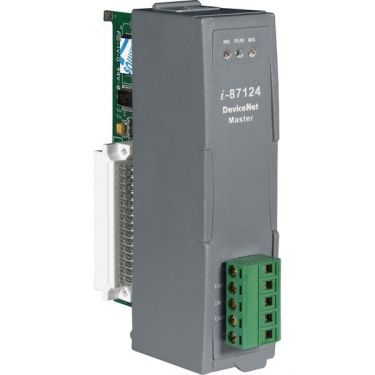

1 Port DeviceNet Master Slot Module

● 3 indication LEDs (Error,Status,Bus LEDs)
● 1 KVdc isolation on CAN side
● Programmable Master MAC ID
● Programmable transfer-rate 125 K, 250 K, 500 K
● Support maximum nodes up to 64
● Support Group 2 Only Server functions
● The maximum Fragment number is (Input/Output) up to 64
● Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
● Support Auto-scan slave device function
● Support on-line add device into and remove device from network

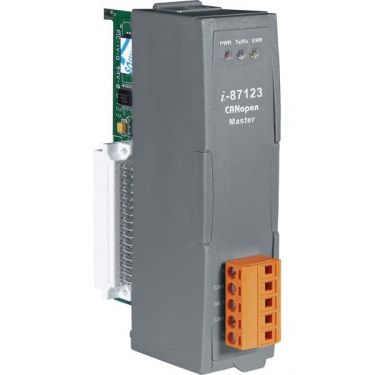

1 Port CANopen Master Slot Module

● One CAN port expansion for I-8000 series MCU (main control unit), WinCon-8000, WinPAC-8000, and LinPAC-8000
● Baud :10Kbps, 20Kbps, 50Kbps, 125Kbps, 250Kbps, 500Kbps, 800Kbps, 1Mbps.
● Support upload and download SDO Segment
● Support Node Guarding protocol
● Support all transmission types and SYNC message
● Provide C/C++ function libraries to control CANopen messages.
● Demos are provided
● 256 records CANopen message receive buffer size
● 2500 Vrms isolation
● 3 indication LEDs (Pow, Rx/Tx and Err LEDs
