The serial modules (I-87K Series) can support either MCU or I/O expansion unit.
Desc
per pagina

Items 1-19 van 60

Pagina

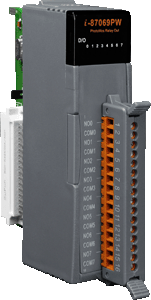

  1. 8-channel PhotoMOS Relay Output Module

    8-channel PhotoMOS Relay Output Module

    ● Support 8 PhotoMos Relay Outputs
    ● 4 kV ESD Protection
    ● No Arcing, No Bounce, and No Switching Noise
    ● Photocouple Isolation
    ● Embedded Dual Watchdog
    ● Configurable Power-on Value Settings and Safe Value Settings
    ● Wide Operating Temperature Range: -25 ~ +75°C

  2. 16-channel source type Isolated Digital Output Module

    16-channel source type Isolated Digital Output Module

    ● Source Type Digital Outputs
    ● Photo Couple Isolation
    ● 4 kV ESD Protection
    ● Dual Watchdog
    ● Power On Value Setting
    ● Safe Value Setting
    ● Short Circuit Protection
    ● 3750 VDC Intra-Module Isolation
    ● Operating Temperature Range: -25 °C ~ +75 °C

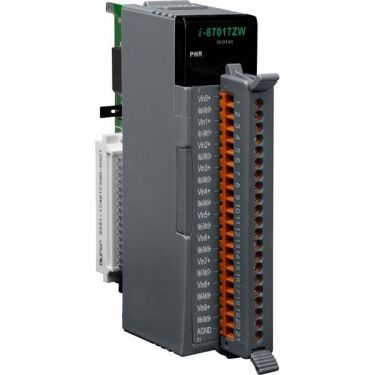

  3. 8-channel Thermocouple Input Module with High Overvoltage Protection

    8-channel Thermocouple Input Module with High Overvoltage Protection

    ● 8-channel Analog Input
    ● Individual Channel Configuration
    ● Open Thermocouple Detection
    ● Temperature Output Consistency
    ● Stable Temperature Output in the Field
    ● 240 Vrms Overvoltage Protection
    ● Jumper Selectable Voltage or Current Input
    ● 4 kV ESD Protection
    ● Dual Watchdog
    ● 3000 VDC Intra-Module Isolation, Field-to-Logic
    ● Wide Operating Temperature Range: -25 °C ~ +75 °C

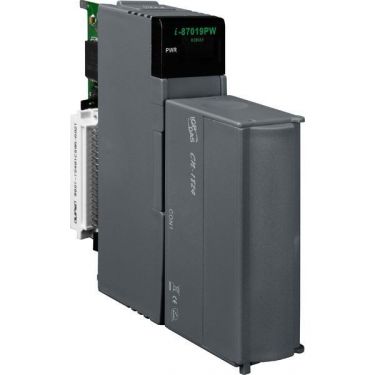

  4. 10/20-channel Analog Input Module with High Voltage Protection

    10/20-channel Analog Input Module with High Voltage Protection

    ● 10-channel Differential or 20-channel Single-ended Inputs
    ● Voltage and Current Inputs
    ● 240 Vrms Overvoltage Protection
    ● High Resolution: 16 bits
    ● Adjustable Sampling Rate
    ● 4 kV ESD Protection
    ● 3000 VDC Intra-module Isolation
    ● Dual Watchdog
    ● Operating Temperature Range: -25 °C ~ +75 °C

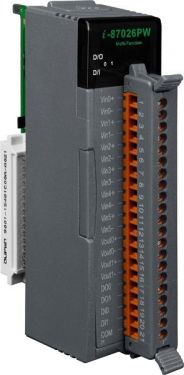

  5. 6-channel Analog Input, 2-channel Analog Output, 2-channel Digital Input and 2-channel Digital Output Module

    6-channel Analog Input, 2-channel Analog Output, 2-channel Digital Input and 2-channel Digital Output Module

    ● Multifunction (6AI, 2AO, 2DI and 2DO)
    ● Supports Fast Mode and Normal Mode
    ● Individual Channel Configuration
    ● Open Wire Detection for Current Output
    ● Overload and Short Circuit Protection for Digital Output
    ● Configurable Power-on Value Settings
    ● Configurable Safe Value Settings
    ● 240 Vrms Overvoltage Protection for Voltage Input
    ● 70 VDC Over Voltage Protection for Digital Input
    ● Jumper Selectable Voltage or Current Input/Output
    ● Dual Watchdog
    ● ±4 kV Contact ESD Protection
    ● Operating Temperature Range: -25 °C ~ +75 °C


  6. 4-channel 14-bit analog output module

    4-channel 14-bit analog output module

    ● 4-channel Analog Output
    ● 4 kV ESD Protection
    ● 3 V/m Radiated Protection
    ● Dual Watchdog
    ● Power On Value Setting
    ● Safe Value Setting
    ● 3000 VDC Intra-Module Isolation, Field to Logic
    ●Operating Temperature Range: -25 °C ~ 75 °C

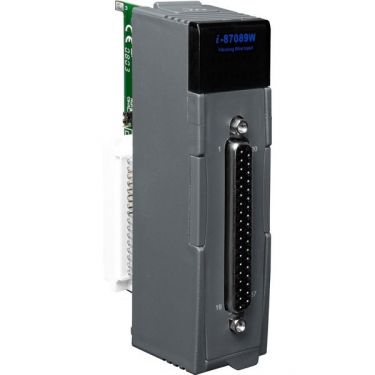

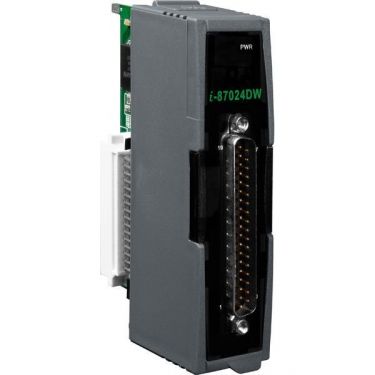

  7. 4-channel 14-bit analog output module

    4-channel 14-bit analog output module

    ● 4-channel Analog Output
    ● D-Sub 37 Connector
    ● 4 kV ESD Protection
    ● Dual Watchdog
    ● Power On Value Setting
    ● Safe Value Setting
    ● 3000 VDC Intra-Module Isolation, Field to Logic
    ● Operating Temperature Range: -25 °C ~ 75 °C

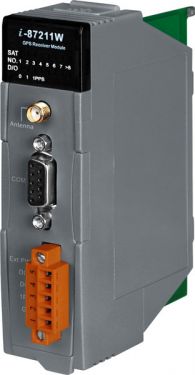

  8. GPS Receiver and 2 DO, 1 PPS Output Module (RoHS)

    GPS Receiver Module with 2 DO and 1 PPS output, includs ANT-115-03

    ● Support PACs and Remote I/O expansion units of ICP DAS
    ● Support 32-channel GPS and NMEA v0183 v3.01(Baudrate 9600 bps)
    ● RS-232 supports NMEA v0183 v3.01 format or DCON protocol
    ● Built-in 2-channel DO, 1-channel PPS(1 pulse per second), 1 RS-232 port
    ● PPS: 100 ms pulse output/sec for precise timekeeping and time measurement
    ● With various system LED indicator

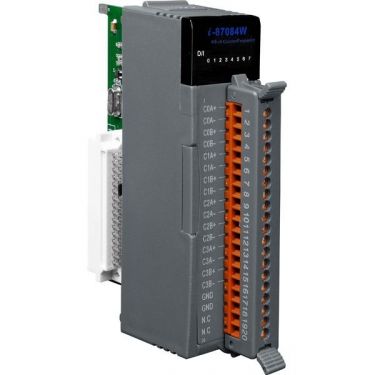

  9. 4/8-channel Counter/Frequency/Encoder Module

    4/8-channel Counter/Frequency/Encoder Module

    ● Support 8 Up Counter
    ● Support 8 Frequency
    ● Support 4 Up/Down
    ● Support 4 Dir/Pulse Counter
    ● Support 4 A/B Phase Counter
    ● Support 1 ~ 32767 (us) digital filter
    ● Support isolated and non-isolated input signals
    ● Equip with Power and Input signal LED indicators
