USB I/O
ICPDAS USB-serie I/O-modules zijn een zeer flexibele oplossing om gegevens te verwerven of uit te voeren. Gebruikers kunnen hun eigen op PC gebaseerde besturingssysteem, laboratoriumonderzoek, testen, enzovoort opbouwen door ICPDAS USB-serie modules toe te passen. De voordelen van ICPDAS USB I/O-modules zijn klein formaat, draagbaar, USB-bus gevoed en diverse invoertypen om gebruikers te helpen bij het gemakkelijk en snel opbouwen van hun eigen projecten in verschillende velden en toepassingen. In vergelijking met traditionele PC-I/O-kaarten is het tijdverspilling om de behuizing te openen en I/O-boards te configureren. Bij ICPDAS USB I/O kunt u eenvoudig en efficiënt I/O besturen. ICPDAS USB I/O is uitgerust met USB-busgevoede functies, één kabel voor toegang tot I/O en het leveren van stroom zonder extra bedrading voor stroom. ICPDAS USB I/O is een module met een klein formaat. U kunt deze I/O-modules toepassen in een breed scala aan toepassingen, zoals ventilatorloze besturing of meting, automatisch testen met BOX-PC, enzovoort. ICPDAS USB I/O biedt dataverwervingsfunctionaliteit van 10 kS/s. Gebruikers kunnen dit toepassen op realtime vereiste toepassingen, zoals geluidsmeting.

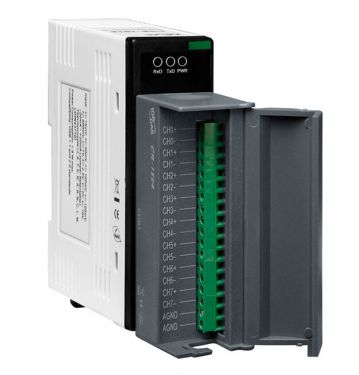

ICPDAS USB-20198-channel Universal Analog Input Module with High Voltage Protection
● 8 Differential Universal Analog Input Channels
● 4kV ESD protection
● Wide Operating Temperature Range
● 240 Vrms Overvoltage Protection
● 3000 VDC Intra-Module Isolation
● USB 2.0 Full-Speed
● USB Bus Powered
● Lockable USB cable
● Driver Free

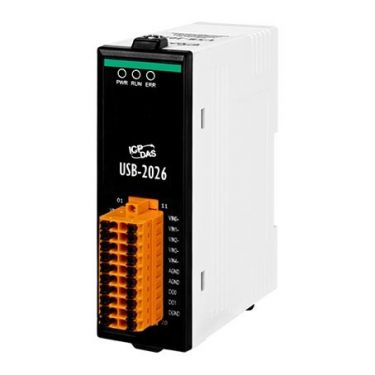

ICPDAS USB-20265-channel Analog Input, 2-channel Analog Output, 2-channel Digital Input and 2-channel Digital Output Module
● Multifunction (5 AI, 2 AO, 2DI and 2 DO)
● Overload and Short Circuit Protection for Digital Output
● 240 Vrms Overvoltage Protection for Voltage Input
● 4kV ESD protection
● Wide Operating Temperature Range
● 3000 VDC Intra-Module Isolation
● USB 2.0 Full-Speed
● USB Bus Powered
● Lockable USB cable
● Driver Free

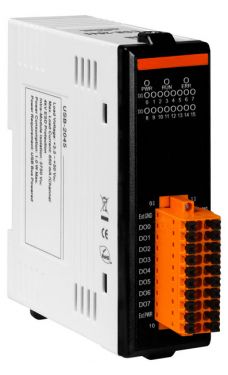

ICPDAS USB-204516 Source-type Digital Output Channels with Overload Protection
● 16-channel sink type digital output
● Short Circuit, Overload and Overvoltage Protection
● Configurable Power-on Value Settings
● Safety functionality when communication failed
● Wide operating temperature range:-25°C~+75°C
● 3000 VDC Intra-Module isolation
● USB 1.1/2.0 Full-Speed
● No external power supply (USB Bus Powered)
● Plug-and-Play without driver
● Lockable USB cable
● PWR/RUN/ERR LED indicators
● Built-in dual watchdog (hardware/software)
● Provide API library (VC/VB/BCB/.NET)
● Module supported for Win2000/XP and Win7 (32/64 bit)

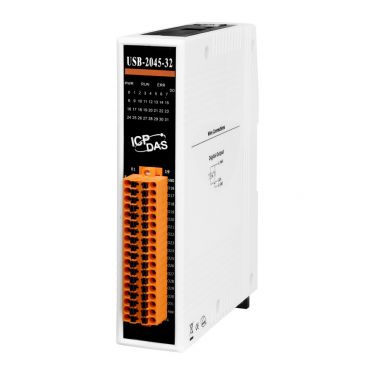

ICPDAS USB-2045-3232 Source-type Digital Output Channels with Overload Protection
● 32-channel sink type digital output
● Short Circuit, Overload and Overvoltage Protection
● Configurable Power-on Value Settings
● Safety functionality when communication failed
● Wide operating temperature range: -25°C~+75°C
● 3000 VDC Intra-Module isolation
● USB 1.1/2.0 Full-Speed
● No external power supply (USB Bus Powered)
● Plug-and-Play without driver
● Lockable USB cable
● Support firmware update via USB
● PWR/RUN/ERR LED indicators
● Built-in dual watchdog (hardware/software)

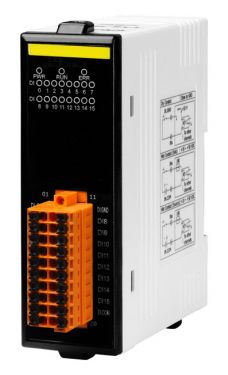

ICPDAS USB-205116-channel Isolated Digital Input Module
● 16-channel sink type digital input
● Dry Contact and Wet Contact Selectable via Wire Connections
● All Channels can be used as 16-bit Counters
● Wide operating temperature range:-25°C~+75°C
● 2500 VDC Intra-Module isolation
● USB 1.1/2.0 Full-Speed
● No external power supply (USB Bus Powered)
● Lockable USB cable
● Utility tool for module configuration and I/O testing easily and quickly
● PWR/RUN/ERR LED indicators
● Provide API library (VC/VB/BCB/.NET)

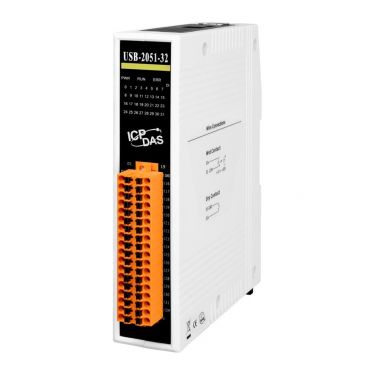

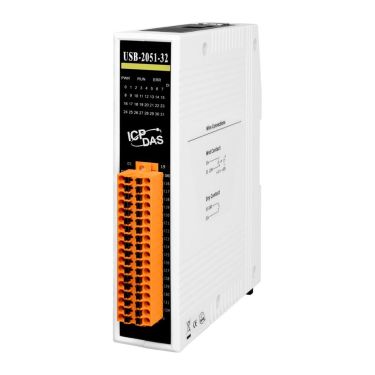

ICPDAS USB-2051-3232-channel Isolated Digital Input Module
● 32-channel digital input
● Select Dry/Wet contact via wiring
● 32-bit counters
● Wide operating temperature range: -25°C to +75°C
● 4kV ESD
● 3000 VDC Intra-Module isolation
● Plug-and-Play without driver
● Lockable USB cable
● Provide API library (VC/VB/BCB/.NET)
● Module supported for Win2000/XP and Win 7,8,10 (32/64 bit)

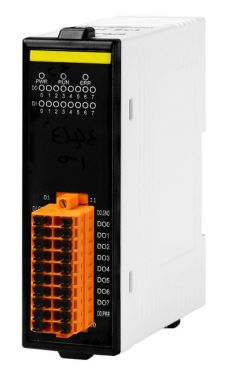

ICPDAS 8-channel Isolated Digital Input and 8-channel Isolated Digital Output - USB-20558-channel Isolated Digital Input and 8-channel Isolated Digital Output
● 8-channel digital input and digital output
● Dry Contact and Wet Contact Selectable via Wire Connections
● Long Distance Measurement
● All Channels can be used as 16-bit Counters
● Short Circuit, Overload and Overvoltage Protection
● Configurable Power-on Value Settings
● Safety functionality when communication failed
● Wide operating temperature range:-25°C~+75°C
● 2500 VDC Intra-Module isolation
● RoHS compliant
● USB 1.1/2.0 Full-Speed
● No external power supply (USB Bus Powered)

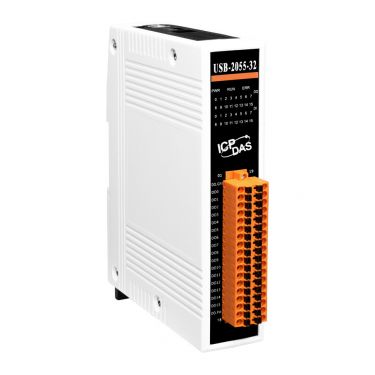

ICPDAS 16-channel Isolated Digital Input and 16-channel Isolated Digital Output - USB-2055-3216-channel Digital Input and 16-channel Digital Output Module
● 16-channel digital input and digital output
● Dry Contact and Wet Contact Selectable via Wire Connections
● All Digital Input Channels can be used as 32-bit Counters
● Short Circuit, Overload and Overvoltage Protection
● Configurable Power-on Value Settings
● Safety functionality when communication failed
● 4kV ESD protection
● Wide Operating Temperature Range:-25°C~+75°C
● 3000 VDC Intra-Module Isolation
● USB 2.0 Full-Speed
● USB Bus Powered
● Lockable USB cable

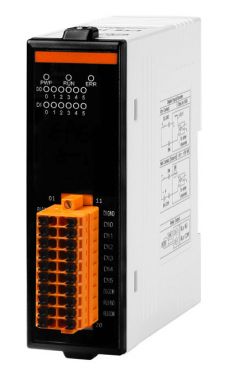

ICPDAS USB-20606-channel Isolated Digital Input and 6-channel Relay Output Module
● 6-channel digital input and 6-channel relay output
● Dry Contact and Wet Contact Selectable via Wire Connections
● Long Distance Measurement
● All Channels can be used as 16-bit Counters
● 5A current contact rating
● Configurable Power-on Value Settings
● Safety functionality when communication failed
● Wide operating temperature range:-25°C~+75°C
● 2500 VDC Intra-Module isolation
● No external power supply (USB Bus Powered)
● Support firmware update via USB
● Utility tool for module configuration and I/O testing easily and quickly
● PWR/RUN/ERR LED indicators

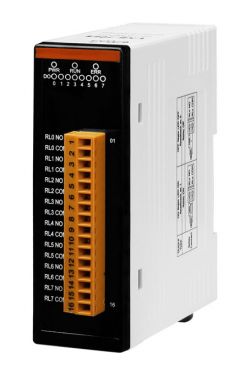

ICPDAS USB-20648-channel Power Relay Output Module
● 8-channel power relay output
● 5A maximum current contact rating
● Safety functionality when communication failed
● Wide operating temperature range
● 2500 VDC Intra-Module isolation
● USB 2.0 Full-Speed
● USB Bus Powered
● Plug-and-Play without driver
● Lockable USB cable
● PWR / RUN / ERR LED indicators

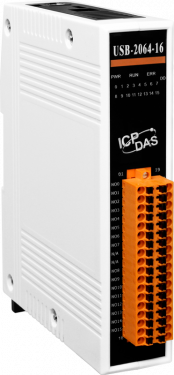

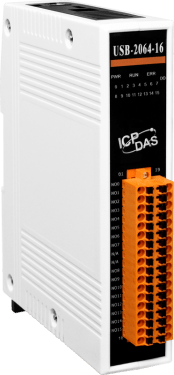

ICPDAS USB-2064-1616-channel Power Relay Output Module
● 16-channel power relay output
● 3A maximum current contact rating
● Safety functionality when communication failed
● Wide operating temperature range
● 3000 VDC Intra-Module isolation
● USB 2.0 Full-Speed
● USB Bus Powered
● Plug-and-Play without driver
● Lockable USB cable
● PWR / RUN / ERR LED indicators

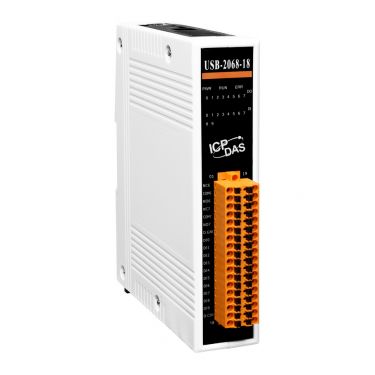

ICPDAS USB-2068-1810-channel Digital Input, 8-channel Relay Output Module
● 10-channel digital input and 8-channel relay output.
● Dry Contact and Wet Contact Selectable via Wire Connections
● All Digital Input Channels can used as 32-bit Counters
● Form C Relay Output
● 8kV ESD protection
● Wide Operating Temperature Range
● 3000 VDC Intra-Module Isolation
● USB 2.0 Full-Speed
● USB Bus Powered
● Lockable USB cable
● Driver Free

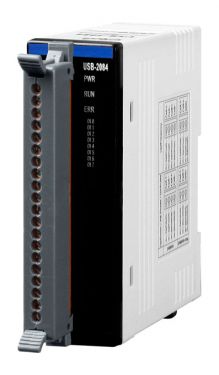

ICPDAS USB-20844/8-channel Counter/Frequency/Encoder Module
● 8-channel for Frequency and Up Counters Types
● 4-channel for Up/Down, Dir/Pulse and A/B Phase Counters Types.
● Support digital filter (1~32767 us)
● 4kV ESD protection
● Wide operating temperature range:-25°C~+75°C
● No external power supply (USB Bus Powered)
● Plug-and-Play without driver installation
● Lockable USB cable
● Built-in dual watchdog (hardware/software)
● Module supported for Win2000/XP and Win7 (32/64 bit)
