Solid State Relay Output

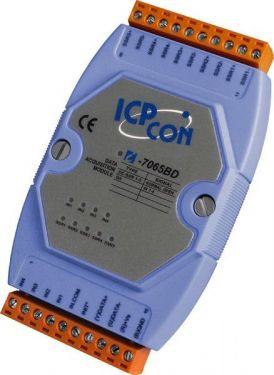

4-channel Isolated Digital Input and 5-channel DC SSR Output Module with 16-bit Counters and LED Display

● Input: 4 single-ended
   ON: Voltage Level: 4 V ~ 30 V
   OFF: Voltage Level: 0 V ~ 1 V
● Input resistance: 3 kΩ
● Output 5 DC-SSR, Normal open
● Contact rating:
   Load voltage: DC 3 V ~ 30 V
   Leakage current: 0.1 mA
   Max load current: 1.0 A
   Isolation voltage: 3750 Vrms
● Dual Watchdog

4-channel Isolated Digital Input and 5-channel DC SSR Output Module with 16-bit Counters

● Input: 4 single-ended
   ON: Voltage Level: 4 V ~ 30 V
   OFF: Voltage Level: 0 V ~ 1 V
● Input resistance: 3 kΩ
● Output 5 DC-SSR, Normal open
● Contact rating:
   Load voltage: DC 3 V ~ 30 V
   Leakage current: 0.1 mA
   Max load current: 1.0 A
   Isolation voltage: 3750 Vrms
● Dual Watchdog

4-channel Isolated Digital Input and 5-channel AC SSR Output Module with 16-bit Counters and LED Display

● Input: 4 single-ended
   ON: Voltage Level: 4 V ~ 30 V
   OFF: Voltage Level: 0 V ~ 1 V
● Input resistance: 3 kΩ
● Output: 5 AC-SSR, Normal open
● Contact rating:
   Load voltage: AC 24 ~ 265 Vrms
   Leakage current: 1.5 mArms
   Max. load current: 1.0 Arms
   Isolation voltage: 3750 Vrms
● Dual Watchdog

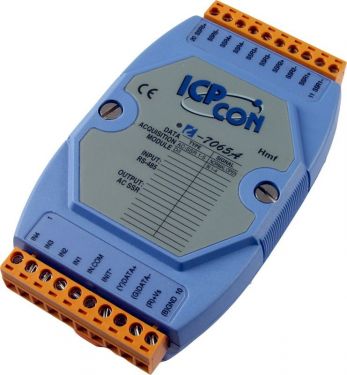

4-channel Isolated Digital Input and 5-channel AC SSR Output Module with 16-bit Counters

● Input: 4 single-ended
   ON: Voltage Level: 4 V ~ 30 V
   OFF: Voltage Level: 0 V ~ 1 V
● Input resistance: 3 kΩ
● Output: 5 AC-SSR, Normal open
● Contact rating:
   Load voltage: AC 24 ~ 265 Vrms
   Leakage current: 1.5 mArms
   Max. load current: 1.0 Arms
   Isolation voltage: 3750 Vrms
● Dual Watchdog

8-channel Isolated Digital Input and 3-channel DC SSR Output Module with 16-bit Counters and LED Display

● Input: 8 single-ended
   ON Voltage Level: 4 V ~ 30 V
   OFF Voltage Level: 0 V ~ 1 V
● Input resistance: 3 kΩ
● Isolation voltage: 3750 Vrms
● Output: 3 DC-SSR, Normal open
● Contact rating:
   Load voltage: DC 3 V ~ 30 V
   Leakage current: 0.1 mArms
   Max. load current: 1.0 Arms
● Dual Watchdog

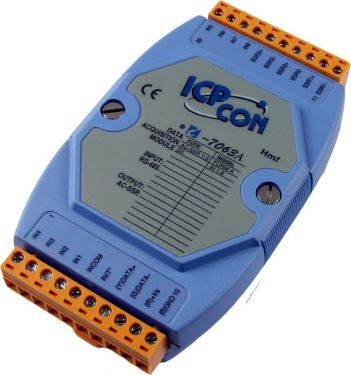

8-channel Isolated Digital Input and 3-channel AC SSR Output Module with 16-bit Counters

● Input: 8 single-ended
   ON Voltage Level: 4 V ~ 30 V
   OFF Voltage Level: 0 V ~ 1 V
● Input resistance: 3 kΩ
● Isolation voltage: 3750 Vrms
● Output: 3 AC-SSR, Normal open
● Contact rating:
   Load voltage: AC 24 ~ 265 Vrms
   Leakage current: 1.5 mArms
   Max. load current: 1.0 Arms

8-channel Isolated Digital Input and 3-channel AC SSR Output Module with 16-bit Counters and LED Display

● Input: 8 single-ended
   ON Voltage Level: 4 V ~ 30 V
   OFF Voltage Level: 0 V ~ 1 V
● Input resistance: 3 kΩ
● Isolation voltage: 3750 Vrms
● Output: 3 AC-SSR, Normal open
● Contact rating:
   Load voltage: AC 24 ~ 265 Vrms
   Leakage current: 1.5 mArms
   Max. load current: 1.0 Arms
● Dual Watchdog

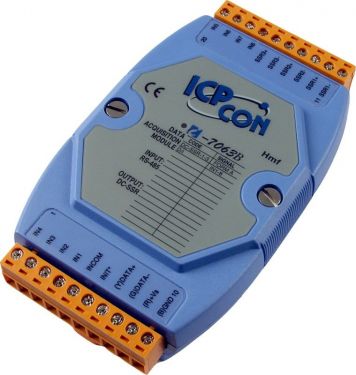

8-channel Isolated Digital Input and 3-channel DC SSR Output Module with 16-bit Counters

● Input: 8 single-ended
   ON Voltage Level: 4 V ~ 30 V
   OFF Voltage Level: 0 V ~ 1V
● Input resistance: 3 kΩ
● Isolation voltage: 3750 Vrms
● Output: 3 DC-SSR, Normal open
● Contact rating:
   Load voltage: DC 3 V ~ 30 V
   Leakage current: 0.1 mArms
   Max. load current: 1.0 Arms
● Dual Watchdog
