DC Digital Output

4-channel Analog Input, 2-channel Digital Input and 2-channel Digital Output Module

● Multifunction (4 AI, 2 DI and 2 DO)
● 2 Voltage Input Channels and 2 Current Input Channels
● Digital Input Channels can be used as 16-bit Counters
● Digital Output Channels can be used as Voltage Input Limit Alarms
● 4 kV ESD and EFT Protection
● 120 VDC Overvoltage Protection
● Adjustable Sampling Rate
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Wide Operating Temperature Range: -25 ~ +75°C

1-channel Analog Output, 1-channel Digital Input and 1-channel Relay Output Module

● 1 Analog Output Channel
● 1 Digital Input Channel
● 1 Relay Output Channel
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● 4 kV ESD Protection
● 3 kV Intra-module Isolation
● Wide Operating Temperature Range: -25 ~ +75°C
● RoHS Compliant

8-channel Isolated Digital Output Module

● Sink Type Digital Outputs
● Photocouple Isolation
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C

DeviceNet Module of 16-channel Isolated Open Collector Digital Output

● DeviceNet general I/O slave devices
● Group 2 Only Server (non UCMM-capable)
● Support Predefined Master/Slave Connection Set
● Connection supported (1 connection for Explicit Messaging, 1 connection for Polled I/O, 1 connection for Bit-Strobe I/O connection)
● Support DeviceNet heartbeat and shutdown messages
● Provide EDS file for DeviceNet master interface
● Support Application: Drive Relay, Resistance Load
● ESD Protection 4 kV Contact for each channel

4-channel Form-A Relay Output and 4-channel Form-C Relay Output Module

8-channel DC SSR Output Module

4-channel Form-A Relay Output and 4-channel Form-C Relay Output Module

8-channel DC SSR Output Module

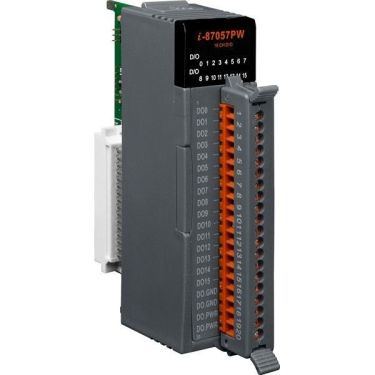

16-channel Open Collector Isolated Digital Output Module

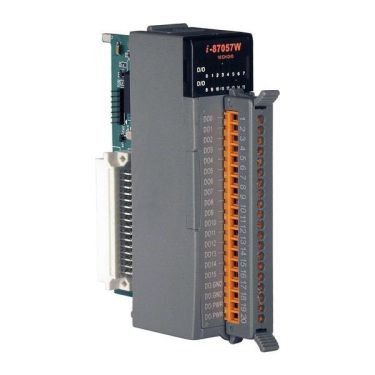

16-channel Open Collector Isolated Digital Output Module

● Digital Outputs for Sink Type
● 4 kV ESD Protection
● Dual Watchdog
● Power On Value Setting
● Safe Value Setting
● Short Circuit Protection
● 3750 VDC Intra-Module Isolation
● Operating Temperature Range: -25 °C ~ 75 °C
