Counter/Frequency
ICPDAS teller/frequentie-modules zijn apparaten die worden gebruikt in industriële automatiseringssystemen voor het meten en tellen van pulsen, alsook voor het vaststellen van frequenties. Deze modules kunnen worden gebruikt in verschillende toepassingen, zoals snelheidsmeting, tellen van gebeurtenissen, en het monitoren van rotatiesnelheden in machines en systemen.
De tellerfunctie van deze modules stelt gebruikers in staat om nauwkeurig pulsen te tellen die worden gegenereerd door sensoren, encoders, of andere apparaten in het veld. Dit kan bijvoorbeeld worden toegepast in snelheidsmetingstoepassingen voor het controleren van de rotatiesnelheid van een motor of een bewegend object.
Daarnaast kunnen deze modules de frequentie van periodieke signalen meten door het aantal pulsen per tijdseenheid te berekenen. Dit is handig voor het monitoren van de frequentie van trillingen, oscillaties, of andere periodieke gebeurtenissen in machines of processen.
ICPDAS teller/frequentie-modules zijn vaak voorzien van isolatie en storingsbescherming om betrouwbare werking te garanderen, zelfs in veeleisende industriële omgevingen. Ze zijn ontworpen om te voldoen aan industriële normen en bieden nauwkeurige metingen en betrouwbare prestaties voor diverse toepassingen waarbij het meten van pulsen en frequenties essentieel is.

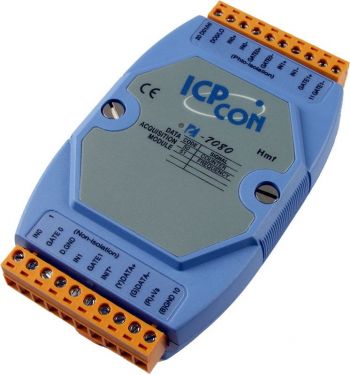

2-channel Counter/Frequency Input Module - ICPDAS I-7080Counter/Frequency input module
● Counter input: 2 independent 32-bit counter
● Frequency input: 100 KHz max.
● Input: 3750 V isolated or non-isolated
● Non-isolated programmable threshold value
● Programmable digital noise filter
● Dual Watchdog
ICPDAS I-7080DCounter/Frequency input module with LED Display
● Counter input: 2 independent 32-bit counter
● Frequency input: 100 KHz max.
● Input: 3750 V isolated or non-isolated
● Non-isolated programmable threshold value
● Programmable digital noise filter
● LED indicator: 5 digit readout
● Dual Watchdog

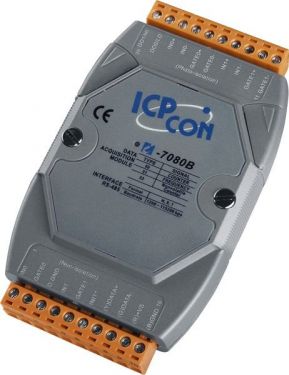

ICPDAS I-7080B2-Channel Counter/Frequency Input with Battery back up Module
● Self Tuner Inside
● Multiple Baud Rate
● Multiple Data Format
● Dual Watchdog Inside
● True Distributed Control
● High Speed & High Density I/O
ICPDAS I-7080BD2-Channel Counter/Frequency Input with Battery back up Module and LED Display
● Self Tuner Inside
● Multiple Baud Rate
● Multiple Data Format
● Dual Watchdog Inside
● True Distributed Control
● High Speed & High Density I/O

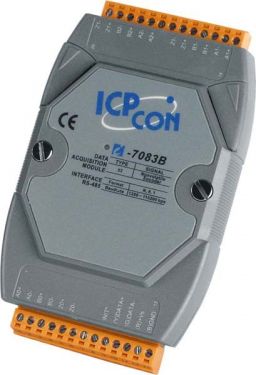

ICPDAS I-7083B3-axis, 32-bits encoder counter
● Self Tuner Inside
● Multiple Baud Rate
● Multiple Data Format
● Dual Watchdog Inside
● True Distributed Control
● High Speed & High Density I/O
ICPDAS I-7083BD3-axis, 32-bits encoder counter with LED Display
● Self Tuner Inside
● Multiple Baud Rate
● Multiple Data Format
● Dual Watchdog Inside
● True Distributed Control
● High Speed & High Density I/O

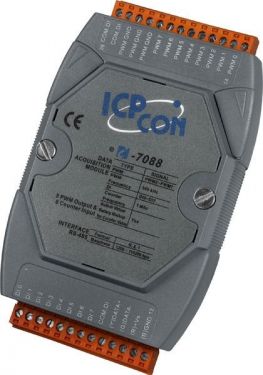

ICPDAS I-70888-Channel PWM Output and 8-Channel High Speed Counter Module
● Automatic generation of PWM outputs by hardware, without software intervention
● 10 Hz ~ 500 KHz PWM output frequency with 0.1 ~ 99.9% duty cycle
● Software and hardware trigger mode for PWM output
● Individual and synchronous PWM output. Using software trigger mode, you can set configuration for all PWM channels then trigger them one by one or all of them at the same time
● Burst mode PWM operation for standby
● DI channel can be configured as simple digital input channel or hardware trigger source of the PWM output
● Dual Watchdog
ICPDAS I-7088D8-Channel PWM Output and 8-Channel High Speed Counter Module
● Automatic generation of PWM outputs by hardware, without software intervention
● 10 Hz ~ 500 KHz PWM output frequency with 0.1 ~ 99.9% duty cycle
● Software and hardware trigger mode for PWM output
● Individual and synchronous PWM output. Using software trigger mode, you can set configuration for all PWM channels then trigger them one by one or all of them at the same time
● Burst mode PWM operation for standby
● DI channel can be configured as simple digital input channel or hardware trigger source of the PWM output
● Dual Watchdog

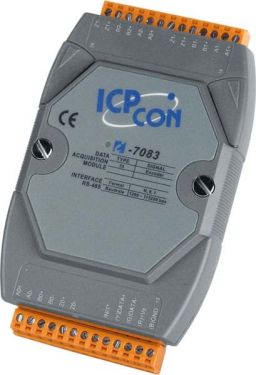

ICPDAS I-70833-axis, 32-bits encoder counter
● Self Tuner Inside
● Multiple Baud Rate
● Multiple Data Format
● Dual Watchdog Inside
● True Distributed Control
● High Speed & High Density I/O
ICPDAS I-7083D3-axis, 32 bits encoder counter with LED Display
● Self Tuner Inside
● Multiple Baud Rate
● Multiple Data Format
● Dual Watchdog Inside
● True Distributed Control
● High Speed & High Density I/O

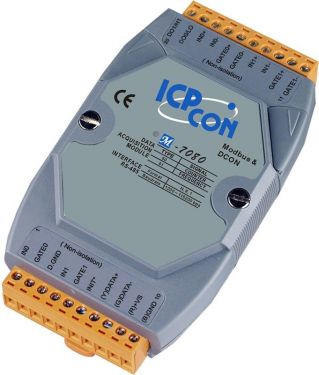

M-7080 ICPDAS - 2 Channel Counter / Frequency Input ModuleCounter/Frequency input module (Gray Cover)
● Counter input: 2 independent 32-bit counter
● Frequency input: 100 KHz max.
● Input: 3750 V isolated or non-isolated
● Non-isolated programmable threshold value
● Programmable digital noise filter
M-7080 ICPDAS - 2 Channel Counter / Frequency Input Module with LED DisplayCounter/Frequency input module with LED Display (Gray Cover)
● Counter input: 2 independent 32-bit counter
● Frequency input: 100 KHz max.
● Input: 3750 V isolated or non-isolated
● Non-isolated programmable threshold value
● Programmable digital noise filter
● LED indicator: 5 digit readout

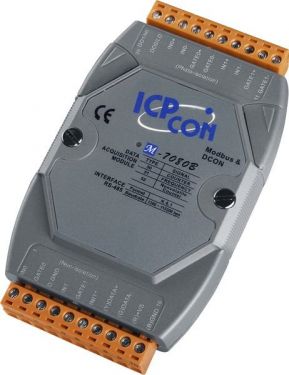

ICPDAS M-7080B2-Channel Counter/Frequency Input with Battery back up Module (Gray Cover)
● Self Tuner Inside
● Multiple Baud Rate
● Multiple Data Format
● Dual WatchDog Inside
● True Distributed Control
● High Speed & High Density I/O
ICPDAS M-7080BD2-Channel Counter/Frequency Input with Battery back up Module and LED Display (Gray Cover)
● Self Tuner Inside
● Multiple Baud Rate
● Multiple Data Format
● Dual WatchDog Inside
● True Distributed Control
● High Speed & High Density I/O

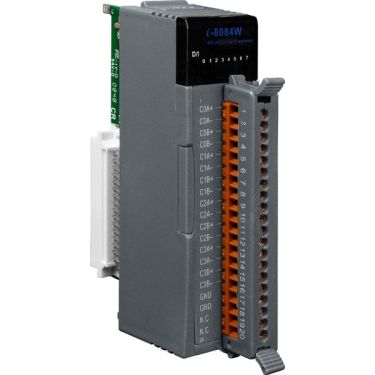

ICPDAS I-8084W4/8-channel Counter/Frequency/Encoder Module
● Support 8 Up Counter (Minimum Pulse Width=2 μs)
● Support 8 Frequency (Minimum Pulse Width=2 μs)
● Support 4 Up/Down Counter (Minimum Pulse Width=2 μs)
● Support 4 Dir/Pulse Counter (Minimum Pulse Width=2 μs)
● Support 4 A/B Phase Counter (Minimum Pulse Width=2 μs)
● Support 1~32767 (us) digital filter
● Support isolated and non-isolated input signals
● Equip with Power and Input signal LED indicators

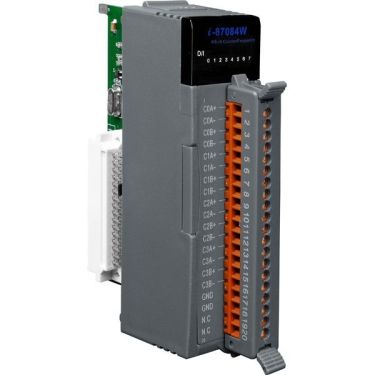

ICPDAS I-87084W4/8-channel Counter/Frequency/Encoder Module
● Support 8 Up Counter
● Support 8 Frequency
● Support 4 Up/Down
● Support 4 Dir/Pulse Counter
● Support 4 A/B Phase Counter
● Support 1 ~ 32767 (us) digital filter
● Support isolated and non-isolated input signals
● Equip with Power and Input signal LED indicators

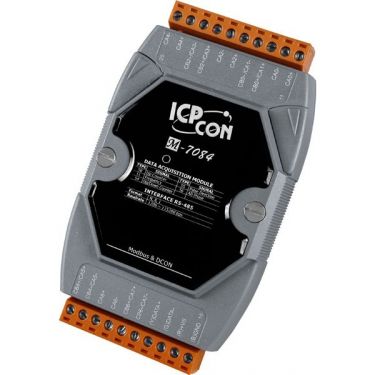

ICPDAS M-70844-/8-channel Counter/Frequency/Encoder Input Module
● 8 Up Counter/Frequency Channels or 4 Encoder Input Channels
● Programmable Digital Filter
● 32-bit Counter
● Individual Channel Configuration
● Virtual Battery Backup to Preserve Counter Values
● +/-4 kV ESD Protection
● Preset Values for Counter Input
● RoHS Compliant
● Wide Operating Temperature Range: -25 ~ +75°C
