ISA Bus I/O Boards

ICP DAS promises to satisfy you by over 132 kinds of board in one stop shopping. These boards not only cover from ISA to PCI bus that you would have often seen on your PC but even support PCI Express.
From hundreds of board, taking PCI bus boards for example; they are sorted into three series: PCI, PISO, and PIO series. PCI series are top-of-the-line ones that reach awesome performance with multiple functions and high resolutions; PISO series are putting emphasis on its protection ability to prevent signal input from direct impact; PIO series are cost-effective ways for general use, and moreover, they are well-suited for high-speed transmission applications.
All the I/O boards are widely applied in various fields of automation systems. In brief, digital I/O boards are for monitoring and controlling logic signals such as button, switch, relay, on/off, high/low and open/close conditions, analog I/O boards are for analog signals acquisition or transmitting application, and the timer, counter and frequency boards are for pulse signals measurements.
Memory boards are so unique that you can find them only in ICP DAS. With two Lithium-polymer batteries, data can be preserved for 10 years. Gambling machines in the casino are the main application of our memory boards.
Besides, with aid of daughter boards, each board we have mentioned above is highly expandable.
We are good at I/O measurement. Just pick one, and let our board take care of the rest! The following are the product lists. Hurry to start your tour right away!
- ICPDAS TMC-10
10-channel Timer/Counter Board
● On board four 8254 timer/counter chips
● Eight independent 16-bit timer / counter and two cascaded 32-bit Timer/Counter
● 11 interrupt levels ,jumper selectable
● Two internal clock source
● Eight channel external clock source
● 8-bit digital output - ICPDAS DIO-144
144-channel OPTO-22 DIO Board
● Double side SMT , short card, power saving
● 144 digital I/O lines
● Emulate 8255 mode 0 (Basic Input / Output mode)
● Buffer output for higher driving capability than 8255
● Register compatible to 722 series
● Programmable interrupt handling
● Four 50-pin Header
● Output status readback - ICPDAS DIO-96
96-channel OPTO-22 DIO Board
● Double side SMT , short card, power saving
● 96 digital I/O lines
● Emulate 8255 mode 0 (Basic Input / Output mode)
● Buffer output for higher driving capability than 8255
● Register compatible to 722 series
● Programmable interrupt handling
● Four 50-pin Header
● Output status readback - ICPDAS DIO-64/6
32-channel Digital Input & 32-channel Digital Output with Timer/Counter Board
● 32 digital input lines
● Buffer output for higher driving capability
● 3 independent programmable 16 bit down counter
● One 16-bit counter , one 32 bit counter with a 4 MHz time base
● Breadboard area for add-on circuit

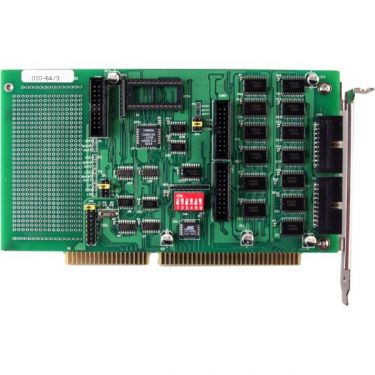

● Backward compatible to 720 series card - ICPDAS DIO-64/3
32-channel Digital Input & 32-channel Digital Output with Timer/Counter Board
● 32 digital input lines
● Buffer output for higher driving capability
● 3 independent programmable 16 bit down counter
● One 16-bit counter , one 32 bit counter with a 4 MHz time base
● Breadboard area for add-on circuit
● Backward compatible to 720 series card - ICPDAS DIO-48
48-channel Digital I/O Board
● Connects directly to DB-24P, DB-24R, DB-24PR, DB-885B, or any OPTO-22 compatible daughter board
● 48 digital I/O lines
● One 16-bit counter
● IRQ Level: IRQ3 ~ IRQ15
● Interrupt Trigger by Event / Timer / Port C3 , C7
● Clock Source can be setting: RTC (32.768 k)/2 M/4 M/8 MHz
● Emulate two industrial-standard 8255 mode 0
● Two 50-pin flat cable connector
● Output status read back - ICPDAS DIO-24

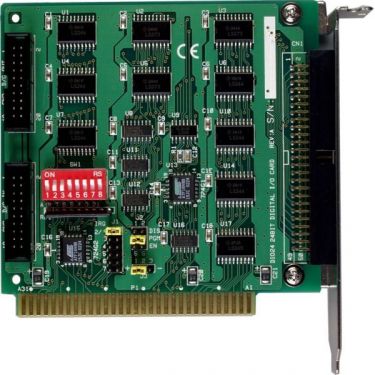

24-channel Digital I/O Board
● 24 digital I/O lines
● Emulate 8255 mode 0 (Basic Input / Output mode)
● Buffer output for higher driving capability than 8255
● Register compatible to 724 series
● Programmable interrupt handling

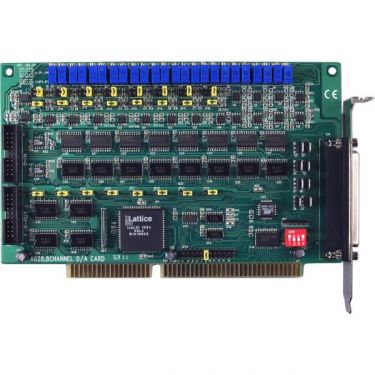

● Output status readback - ICPDAS A-628
8-channel 12-bit Analog Output Board
● Backward compatible to 726 series
● 8 analog output channels
● 12-bit resolution
● 0 ~ 5 V, 0 ~ 10 V, *5 V,*10 V output range
● 4 ~ 20 mA current loop capability, sink to ground
● On board reference -5 V, -10 V
● External reference *10 V (max.) AC or DC
● External Interrupt request signals, IRQ level from IRQ 3 ~ IRQ 15

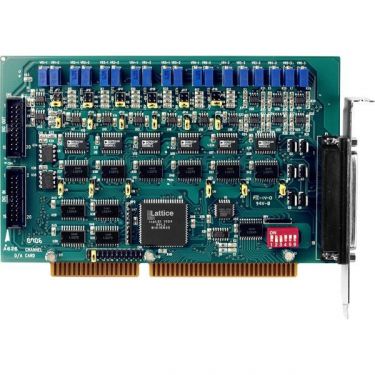

● 16-channel digital input and 16 channel digital output connects directly to DB-16P, DB-16R DN-20, DN-37, 782 and 785 families - ICPDAS A-626
6-channel 12-bit Analog Output Board
● Backward compatible to 726 series
● 6 analog output channels
● 12-bit resolution
● 0 ~ 5 V, 0 ~ 10 V, *5 V,*10 V output range
● 4 ~ 20 mA current loop capability, sink to ground
● On board reference -5 V, -10 V
● External reference *10 V (max.) AC or DC
● External Interrupt request signals, IRQ level from IRQ 3 ~ IRQ 15
● 16-channel digital input and 16 channel digital output connects directly to DB-16P, DB-16R DN-20, DN-37, 782 and 785 families - ICPDAS A-812PG

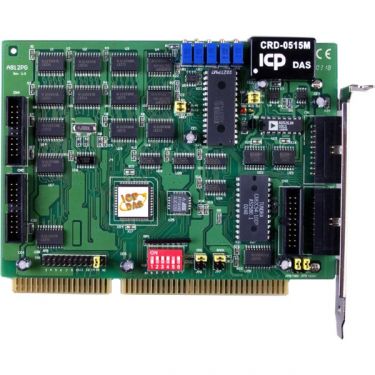

62.5 kS/s 12-bit Analog & Digital I/O Board
● 12-bit A/D converter
● 12-bit D/A converter
● 16 single-ended
● 62.5 k/s sampling rate
● Two 12-bit analog output channels
● Analog Output Range : 0 ~ 5 V, 0 ~ 10 V
● Software programmable gain: 1, 2, 4, 8, 16
● Interrupt handling
● A/D Trigger modes: Software Trigger, Pacer Trigger, External Trigger, Event Trigger
● A/D data transfer modes: Polling , interrupt , DMA

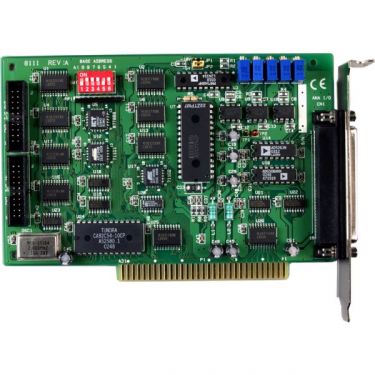

● 16 digital input & 16 digital output - ICPDAS A-8111
35 kS/s 12-bit Analog & Digital I/O Board
● 12-bit A/D converter
● 12-bit D/A converter
● 8 single-ended or 8 differential input channels
● 35 k/s sampling rate
● One 12-bit analog output channel
● Analog Output Range: 0 ~ 5 V, 0 ~ 10 V
● Software programmable gain:1, 2, 4, 8, 16
● Interrupt handling
● A/D Trigger modes: Software Trigger, Pacer Trigger, External Trigger, Event Trigger
● A/D data transfer modes: Polling , interrupt , DMA
● 16 digital input & 16 digital output
● 37 pin D-Sub connector - ICPDAS A-821PGL
45 kS/s 12-bit Analog & Digital I/O Board (High Gain version)
● 12-bit A/D converter
● 12-bit D/A converter
● 16 single-ended or 8 differential input channels
● 45 k/s sampling rate
● One 12-bit analog output channel
● Analog Output Range: 0 ~ 5 V, 0 ~ 10 V
● Software programmable high gain: 1, 2 , 4, 8
● Interrupt handling
● A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger, Event Trigger
● A/D data transfer modes: polling, interrupt, DMA
● 16 digital input & 16 digital output
● 37 pin D-Sub connector - ICPDAS A-821PGH
45 kS/s 12-bit Analog & Digital I/O Board (High Gain version)
● 12-bit A/D converter
● 12-bit D/A converter
● 16 single-ended or 8 differential input channels
● 45 k/s sampling rate
● One 12-bit analog output channel
● Analog Output Range : 0 ~ 5 V, 0 ~ 10 V
● Software programmable high gain: 1, 10, 100, 1000
● Interrupt handling
● A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger, Event Trigger
● A/D data transfer modes: polling , interrupt , DMA
● 16 digital input & 16 digital output
● 37 pin D-Sub connector - ICPDAS A-822PGL

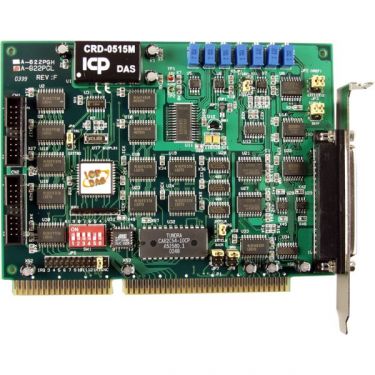

125 kS/s 16-channel 12-bit Analog Input, 1-channel 12-bit Analog Output with 16 Digital Input/16 Digital Output (Low Gain version)
● 12-bit A/D converter
● 12-bit D/A converter
● 16 single-ended or 8 differential input channels
● 125 k/s sampling rate
● Two 12-bit analog output channels
● Analog Output Range : 0 ~ 5 V, 0 ~ 10 V
● Software programmable high gain: 0.5, 1, 2, 4, 8
● Interrupt handling
● A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger , Event Trigger
● A/D data transfer modes : polling , interrupt , DMA
● 16 digital input & 16 digital output
● 37 pin D-Sub connector - ICPDAS A-822PGH
125 kS/s 16-channel 12-bit Analog Input, 1-channel 12-bit Analog Output with 16 Digital Input/16 Digital Output (High Gain version)
● 12-bit A/D converter
● 12-bit D/A converter
● 16 single-ended or 8 differential input channels
● 125 k/s sampling rate
● Two 12-bit analog output channels
● Analog Output Range : 0 ~ 5 V, 0 ~ 10 V
● Software programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000
● Interrupt handling
● A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger , Event Trigger
● A/D data transfer modes : polling , interrupt , DMA
● 16 digital input & 16 digital output
● 37-pin D-Sub connector - ICPDAS A-823PGL

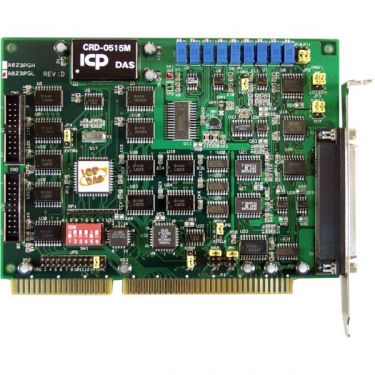

125 kS/s 16-channel 12-bit Analog Input, 2-channel 12-bit Analog Output with 16 Digital Input/16 Digital Output (Low Gain version)
● 12-bit A/D converter
● 12-bit D/A converter
● 16 single-ended or 8 differential input channels
● 125 k/s sampling rate
● Two 12-bit analog output channels
● Analog Output Range: 0 ~ 5 V, 0 ~ 10 V
● Software programmable gain: 0.5, 1, 2, 4, 8
● Interrupt handling
● A/D Trigger modes: Software Trigger, Pacer Trigger, External Trigger, Event Trigger
● A/D data transfer modes: Polling , interrupt, DMA
● 16 digital input & 16 digital output
● 37 pin D-Sub connector - ICPDAS A-823PGH
125 kS/s 16-channel 12-bit Analog Input, 2-channel 12-bit Analog Output with 16 Digital Input/16 Digital Output (High Gain version)
● 12-bit A/D converter
● 12-bit D/A converter
● 16 single-ended or 8 differential input channels
● 125 k/s sampling rate
● Two 12-bit analog output channels
● Analog Output Range: 0 ~ 5 V, 0 ~ 10 V
● Software programmable gain: 0.5, 1, 5, 10, 50, 100, 500, 1000
● Interrupt handling
● A/D Trigger modes: Software Trigger, Pacer Trigger, External Trigger, Event Trigger
● A/D data transfer modes: Polling , interrupt , DMA
● 16 digital input & 16 digital output
● 37 pin D-Sub connector - ICPDAS P16R16DIO
Isolated 16 Digital Input & 16 Relay Output Board
● Relay output channel
● Optically isolated digital input channels
● AC/DC signal input ; AC signal input with filter
● Connector pin assignment is compatible to 725 series
● Power Requirements: 200 mA @ +5 V (max.); 260 mA @ +12 V (max.)

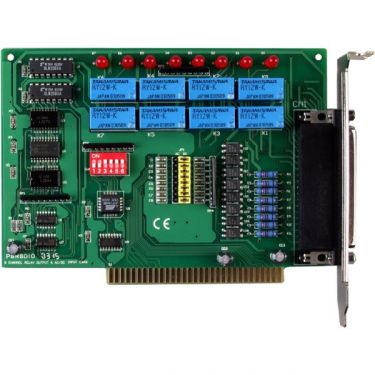

● LED indicator for each relay output state - ICPDAS P8R8DIO

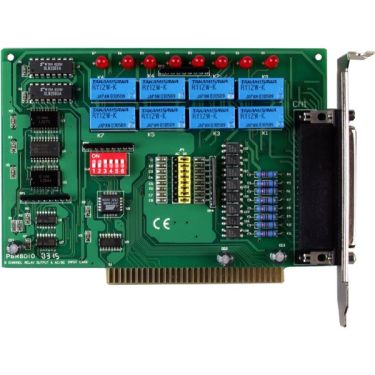

Isolated 8 Digital Input & Relay Output Board
● Relay output Channel
● Optically isolated digital input channels
● AC/DC signal input; AC signal input with filter
● Connector pin assignment is compatible to 725 series
● Power Requirements: 200 mA @ +5 V (max.); 260 mA @ +12 V (max.)

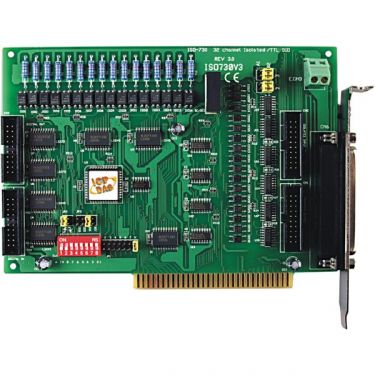

● LED indicator for each relay output state - ICPDAS ISO-730
32-channel Isolated Digital I/O Board
● 16-channel optically isolated digital input
● 16-channel optically isolated open-collector output
● 16-channel TTL level digital input (Non-isolation)
● 16-channel TTL level digital output (Non-isolation)
● One 37-pin D-sub connector and two 20-pin headers for isolated I/O
● Two 20-pin header for TTL digital I/O (Non-Isolation)
● Built-in DC/DC converter with 3000 VDC isolation
● Interrupt handling
● Interrupt source: channel 0 and channel 16
● 3750 Vrms photo-isolation protection
