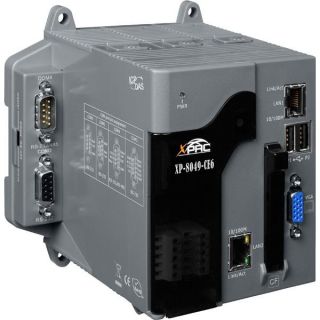

ICPDAS XP-8049-CE6
XP-8000-CE6 Programmable Automation Controller with InduSoft inside
SOFTWARE FEATURES:
● InduSoft Web Studio General Features
● InduSoft Integrated with XP-8000-CE6
● Access Database Easily
● SNMP Protocol Supported
● Web Thin Clients
● Useful Package Tool is Provided
HARDWARE FEATURES:
● AMD LX800 CPU (32-bit and 500MHz)
● 1 GB RAM
● 4 GB Built-In Flash Disk
● Built-in VGA Port
● 64-bit Hardware Serial Number
● Dual Watchdog Timer
● Dual Battery-Backup SRAM (512 KB)
● Dual Ethernet Port
● Redundant Power Input
● Ventilated Housing Design Allows Operation Between -25 °C ~ +75 °C
XP-8049-CE6 is the new generation Windows CE 6.0 based InduSoft PAC (Programmable Automation Controller) of ICP DAS. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop HMI (Human Machine Interface) and SCADA (Supervisory Control and Data Acquisition system.
ICPDAS PAC XP-8049-CE6 equips a AMD LX 800 CPU (500MHz), variant connectivity (VGA, USB, Ethernet, RS-232/RS-485), and 3/7 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules). Its operating system, Windows Embedded CE 6.0 is an operating system with resource saving and real-time capability as their main features. To develop XP-8000-CE6, the time spent for development is not much especially with our SDK and pluggable IO modules.
| OS | Microsoft Windows Embedded CE 6.0 |
| Preloaded Software | InduSoft Web Studio v6.1 Service Pack 6 (NTView Pro: 300 Tags, 3 Drivers ,and 4 Web Thin Clients) |
| CPU | AMD LX800 processor (500 MHz) | ||
| System Memory | 1 GB RAM | ||
| Dual Battery Backup SRAM | 512 KB (for 5 years data retain) | ||
| Flash | 4 GB as IDE Master | ||
| EEPROM |
|
||
| CF Card | 8 GB (support up to 32 GB) | ||
| 64-bit Hardware Serial Number | Yes | ||
| Dual Watchdog Timer | Yes | ||
| Rotary Switch | Yes (0 ~ 9) | ||
| DIP Switch | No |
|
| Slot Number | 0 |
| Hot Plug | N/A |
| Input Range | +10 ~ +30 VDC |
| Isolation | 1 kV |
| Redundant Power Input | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity | 1.8A, 5V supply to CPU and backplane, total 15 W |
| Consumption | 14.4 W (0.6 A @ 24 VDC) |
| Dimensions (w x l x h) | 137 x 132 x 125mm |
| Installation | DIN-Rail or Wall Mounting |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +85 °C |
| Humidity | 5% ~ 90% RH, non-condensing |
