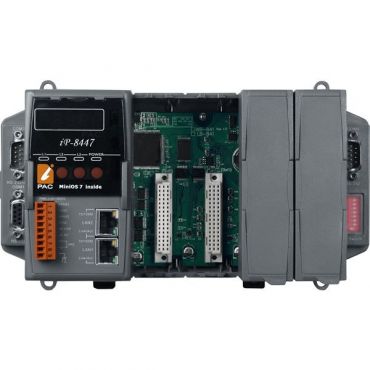

ICPDAS iP-8411-MRTU/iP-8811-MRTU

Levertijd:
2~7 dagen
SKU
iP

Features:

● Supports Modbus RTU/ASCII Slave
● Auto Configuration
● 4/8 I/O Slots for I-8K and I-87K Series Modules
● Operating Temperature: -25 ~ +75 °C



It is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75°C). To simplify installation and maintenance of I/O modules, it provides many useful features, such as: auto configuration, LED indicators for fault detection, dual watchdog to keep alive, programmable power on and safe values for safety.

Modbus is a very wide known protocol in the industrial manufacturing and environment monitoring fields. Many SCADA software, HMI and PLC has builtin driver to support Modbus devices. Besides, we also provide SDK on different platforms, such as Windows XP, Window CE 5.0/6.0, Linux, MiniOS7. Therefore, it is very easy to integrate remote I/O to customer's applications.

Further more, the iP-8000-MTCP is also a c language based programmable controller that equipped a DOS-like OS (MiniOS7). Programmers can use C compilers that can create 16 bit executable file (*.exe) to customize the Modbus firmware which preinstalled in the iP-8000-MTCP. The SDK provides rich functions for Modbus communication, such as Modbus TCP master/slave, Modbus RTU master/salve, Modbus ASCII master/slave, etc.

Meer informatie
Art.nr.
iP
Fabrikant
ICPDAS
Software
System Software
OS MiniOS7 (DOS-like embedded operating system)
Communication Ports
Communication Ports
Protocol Modbus RTU/ASCII Slave
Ethernet NONE
COM 0 Internal communication with the high profi le I-87K series modules in slots
COM 1 RS-232 (to update firmware) (RxD, TxD and GND); non-isolated
COM 2 RS-485 (D2+, D2-; self-tuner ASIC inside); 3000 VDC Isolation
COM 3 RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated
COM 4 RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated
SMMI
SMMI
LED Display Yes, 5-Digit
Programmable LED Indicators 3
Push Buttons 4
Buzzer Yes
I/O Expansion Slots
Models iP-8411-MRTU iP-8841-MRTU
I/O Expansion Slots
Slot Number 4 8
Note: For High Profi le I-8K and I-87K Modules Only
Power
Models iP-8411-MRTU iP-8841-MRTU
Power
Input Range +10 ~ +30 VDC
Isolation 1 kV
Redundant Power Inputs Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity 30 W
Consumption 6.7 W 7.2 W
Mechanical
Models iP-8411-MRTU iP-8841-MRTU
Mechanical
Dimensions (W x L x H) 231 mm x 132 mm x 111 mm 355 mm x 132 mm x 111 mm
Installation DIN-Rail or Wall Mounting
Omgeving
Environmental
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH (non-condensing)
