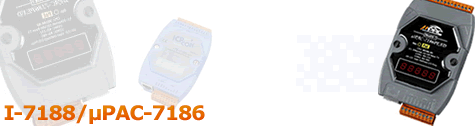

I-7188 / uPAC-7186

I-7188 / uPAC-7186

Hidden in narrow spaces, however, showing great capacity and existing in a wide range of applications, we are right talking about the I-7188 and μPAC-7186. These are the μPACs (micro Programmable Automation Controllers) designed and launched by ICP DAS. With fast-booting operating system MiniOS7, flexible COM port configuration and user-defined I/O pins, μPAC just meets every kind of requirement in general applications, such as data acquisition, automation systems, and remote control.

Both I-7188 and μPAC-7186 series are palm-sized PACs. μPAC-7186 series are the more advanced PACs with faster CPU, 10/100 Base-TX Ethernet and lower power consumption. Therefore, μPAC-7186 series are suitable for more sophisticated application. Integrated with MiniOS7 Studio, developed for C-language based controllers by ICP DAS, μPAC features IDE(integrated development environment), which makes programming much easier. Besides, with various expansion boards for μPACs, such as DI, DO, A/D, D/A, Timer/Counter, UART, flash memory, battery backup SRAM and other I/O functions, users can choose which functions they would like to combine, and then optimize the performance of their μPACs for different situations. And for those who are familiar with soft logic, ICP DAS also provides ISaGRAF-based μPACs and it makes the programming tasks as easy as PLCs’.

There are many different kinds of μPACs, and here’s a quick guide for the add-on letters behind model numbers:

E represents that the μPAC has an Ethernet port.
G represents that the μPAC is ISaGRAF-based.
D represents that the μPAC has a 7-segment LED display.
FD represents that the μPAC has a built-in 64 MB Flash Disk.
SM represents that the μPAC has a built-in 640 KB SRAM.

Desc
per pagina

Items 1-20 van 82

Pagina
  1. Advanced Ethernet ISaGRAF Palm-Size PAC with POE and 7-segment display

    Advanced Ethernet ISaGRAF Palm-Size PAC with POE and 7-segment display

    Software Features:
    ● MiniOS7 Embedded Operating System (DOS-like)
    ● ISaGRAF v3 SoftLogic Inside
    ● Support IEC 61131-3 Standard
    ● Accepts max. 64 KB ISaGRAF code size


    Hardware Features:

    ● 80186 CPU (16-bit & 80 MHz)
    ● Built-in watchdog timer (WDT) to improve the system stability
    ● SRAM (640 KB), Flash (512 KB)
    10/100M Ethernet Ports
    ● 2 Serial Ports (RS-232/485)
    ● I/O Expansion Bus Interface (support one X-board I/O expansion board)

  2. Advanced Ethernet ISaGRAF Palm-Size PAC with 7-segment display

    Advanced Ethernet ISaGRAF Palm-Size PAC with 7-segment display

    Software Features:

    ● MiniOS7 Embedded Operating System (DOS-like)
    ● ISaGRAF v3 SoftLogic Inside
    ● Support IEC 61131-3 Standard
    ● Accepts max. 64 KB ISaGRAF code size


    Hardware Features:

    ● 80186 CPU (16-bit & 80 MHz)
    ● Built-in watchdog timer (WDT) to improve the system stability
    ● SRAM (640 KB), Flash (512 KB)
    10/100M Ethernet Ports
    ● 2 Serial Ports (RS-232/485)
    ● I/O Expansion Bus Interface (support one X-board I/O expansion board)

  3. Advanced Ethernet ISaGRAF Palm-Size PAC with POE

    Advanced Ethernet ISaGRAF Palm-Size PAC with POE

    Software Features:

    ● MiniOS7 Embedded Operating System (DOS-like)
    ●> ISaGRAF v3 SoftLogic Inside
    ● Support IEC 61131-3 Standard
    ● Accepts max. 64 KB ISaGRAF code size

    Hardware Features:

    ● 80186 CPU (16-bit & 80 MHz)
    ● Built-in watchdog timer (WDT) to improve the system stability
    ● SRAM (640 KB), Flash (512 KB)
    ● 10/100M Ethernet Ports
    ● 2 Serial Ports (RS-232/485)
    ● I/O Expansion Bus Interface (support one X-board I/O expansion board)

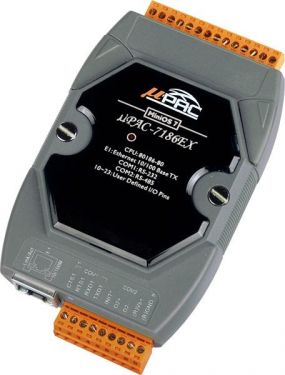

  4. Advanced Ethernet ISaGRAF Palm-Size PAC

    Advanced Ethernet ISaGRAF Palm-Size PAC

    Software Features:

    ● MiniOS7 Embedded Operating System (DOS-like)
    ● ISaGRAF v3 SoftLogic Inside
    ● Support IEC 61131-3 Standard
    ● Accepts max. 64 KB ISaGRAF code size

    Hardware Features:

    ● 80186 CPU (16-bit & 80 MHz)
    ● Built-in watchdog timer (WDT) to improve the system stability
    ● SRAM (640 KB), Flash (512 KB)
    ● 10/100M Ethernet Ports
    ● 2 Serial Ports (RS-232/485)
    ● I/O Expansion Bus Interface (support one X-board I/O expansion board)

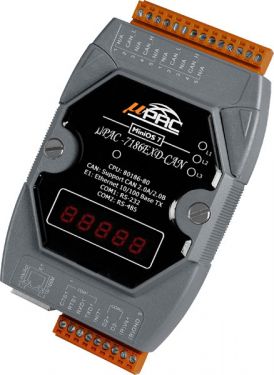

  5. μPAC-7186 CAN bus series Programmable Automation Controller

    μPAC-7186 CAN bus series Programmable Automation Controller

    ● 1000 VDC voltage protection on CAN side
    ● Compatible with CAN specification 2.0 parts A and B
    ● Programmable transfer rate up to 1 Mbps
    ● Jumper select 120Ω terminator resistor for CAN channel
    ● Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP
    ● 10/100BASE-T NE2000 compatible Ethernet Controller
    ● Upgradable OS image
    ● Remote Configuration
    ● 64-bit hardware unique serial number inside
    ● COM driver support interrupt & 1K QUEUE Input & Output buffer
    ● COM port: COM1, COM2
    ● Built-in RTC, NVRAM, EEPROM
    ● Built-in self-tuner ASIC controller on RS-485 port
    ● 7-segment LED display
    ● Built-in ICP DAS’s MiniOS7
    ● Program download port: COM1 or Ethernet Port

  6. Palm-size μPAC with 7-segment LED Display (80MHz CPU, 10/100 Ethernet, 512K SRAM, 512K Flash and 64MB Flash Disk, RS-232 x1, RS-485 x1)

    Palm-size μPAC with 7-segment LED Display (80MHz CPU, 10/100 Ethernet, 512K SRAM, 512K Flash and 64MB Flash Disk, RS-232 x1, RS-485 x1)

    ● High reliability in harsh environment
    ● Embedded MiniOS7, anti-virus
    ● Built-in watchdog timer (WDT)
    ● Ethernet Protocols: TCP, UDP, IP, ICMP, ARP
    ● Faster 10/100M Ethernet port
    ● Modbus Protocols
    ● Free easy-to-use software development toolkits for your applications
    ● Expansion Bus Interface
    ● Remote/Web Configuration/Maintenance
    ● Support for Virtual COM technology

  7. Palm-size μPAC (80MHz CPU, 10/100 Ethernet, 512K SRAM, 512K Flash and 64MB Flash Disk, RS-232 x1, RS-485 x1)

    Palm-size μPAC (80MHz CPU, 10/100 Ethernet, 512K SRAM, 512K Flash and 64MB Flash Disk, RS-232 x1, RS-485 x1)

    ● High reliability in harsh environment
    ● Embedded MiniOS7, anti-virus
    ● Built-in watchdog timer (WDT)
    ● Ethernet Protocols: TCP, UDP, IP, ICMP, ARP
    ● Faster 10/100M Ethernet port
    ● Modbus Protocols
    ● Free easy-to-use software development toolkits for your applications
    ● Expansion Bus Interface
    ● Remote/Web Configuration/Maintenance
    ● Support for Virtual COM technology

  8. Palm-size μPAC with 7-segment LED Display (80MHz CPU, 10/100 Ethernet, 640K SRAM, 512K Flash, RS-232x1, RS-485x1)

    Palm-size μPAC with 7-segment LED Display (80MHz CPU, 10/100 Ethernet, 640K SRAM, 512K Flash, RS-232x1, RS-485x1)

    ● High reliability in harsh environment
    ● Embedded MiniOS7, anti-virus
    ● Built-in watchdog timer (WDT)
    ● Ethernet Protocols: TCP, UDP, IP, ICMP, ARP
    ● Faster 10/100M Ethernet port
    ● Modbus Protocols
    ● Free easy-to-use software development toolkits for your applications
    ● Expansion Bus Interface
    ● Remote/Web Configuration/Maintenance
    ● Support for Virtual COM technology

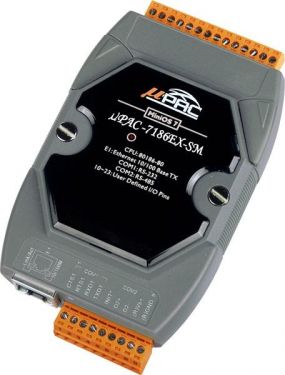

  9. Palm-size μPAC (80MHz CPU, 10/100 Ethernet, 640K SRAM, 512K Flash, RS-232x1, RS-485x1)

    Palm-size μPAC (80MHz CPU, 10/100 Ethernet, 640K SRAM, 512K Flash, RS-232x1, RS-485x1)

    ● High reliability in harsh environment
    ● Embedded MiniOS7, anti-virus
    ● Built-in watchdog timer (WDT)
    ● Ethernet Protocols: TCP, UDP, IP, ICMP, ARP
    ● Faster 10/100M Ethernet port
    ● Modbus Protocols
    ● Free easy-to-use software development toolkits for your applications
    ● Expansion Bus Interface
    ● Remote/Web Configuration/Maintenance
    ● Support for Virtual COM technology

  10. Palm-size μPAC with 7-segment display (80MHz CPU, 10/100 Ethernet, 512K SRAM, 512K Flash, RS-232 x1, RS-485 x1)

    Palm-size μPAC with 7-segment display (80MHz CPU, 10/100 Ethernet, 512K SRAM, 512K Flash, RS-232 x1, RS-485 x1)

    ● High reliability in harsh environment
    ● Embedded MiniOS7, anti-virus
    ● Built-in watchdog timer (WDT)
    ● Ethernet Protocols: TCP, UDP, IP, ICMP, ARP
    ● Faster 10/100M Ethernet port
    ● Modbus Protocols
    ● Free easy-to-use software development toolkits for your applications
    ● Expansion Bus Interface
    ● Remote/Web Configuration/Maintenance
    ● Support for Virtual COM technology

  11. Palm-size μPAC (80MHz CPU, 10/100 Ethernet, 512K SRAM, 512K Flash, RS-232 x1, RS-485 x1)

    Palm-size μPAC (80MHz CPU, 10/100 Ethernet, 512K SRAM, 512K Flash, RS-232 x1, RS-485 x1)

    ● High reliability in harsh environment
    ● Embedded MiniOS7, anti-virus
    ● Built-in watchdog timer (WDT)
    ● Ethernet Protocols: TCP, UDP, IP, ICMP, ARP
    ● Faster 10/100M Ethernet port
    ● Modbus Protocols
    ● Free easy-to-use software development toolkits for your applications
    ● Expansion Bus Interface
    ● Remote/Web Configuration/Maintenance
    ● Support for Virtual COM technology

  12. Ethernet ISaGRAF Palm-Size PAC with 7-segment display

    ISaGRAF Embedded Controller with one Ethernet port, one RS-232 port,
    one RS-485; Including ISaGRAF Target License with LED display

    ● ZigBee Wireless Solution
    ● Data Acquisition Auto-Report System
    ● Communication
    ● Modbus RTU/TCP Slave Ports
    ● Modbus RTU/ASCII Master Ports
    ● Multi-Client Connection
    ● Expansion Boards and Remote I/O Modules
    ● Data Echange: Fbus & Ebus
    ● Data Log
    ● Remotely Download Program: Modem_Link
    ● PWM: Pulse Width Modulation Output
    ● Parallel DI Counters
    ● SMS: Short Message Service

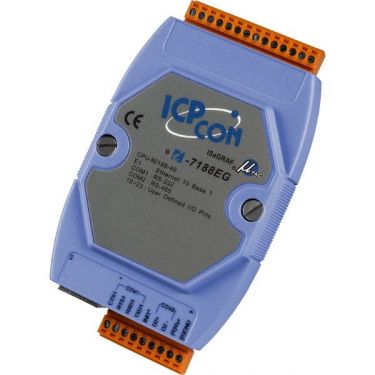

  13. Ethernet ISaGRAF Palm-Size PAC

    ISaGRAF Embedded Controller with one Ethernet port

    ● ZigBee Wireless Solution
    ● Data Acquisition Auto-Report System
    ● Communication
    ● Modbus RTU/TCP Slave Ports
    ● Modbus RTU/ASCII Master Ports
    ● Multi-Client Connection
    ● Expansion Boards and Remote I/O Modules
    ● Data Echange: Fbus & Ebus
    ● Data Log
    ● Remotely Download Program: Modem_Link
    ● PWM: Pulse Width Modulation Output
    ● Parallel DI Counters
    ● SMS: Short Message Service


  14. ISaGRAF Palm-Size Programmable Automation Controller

    ISaGRAF Embedded Controller with one RS-232/RS-485 port, one RS-485;
    512K Flash,512K SRAM,and LED display; Including ISaGRAF Target License

    ● Creating a Modbus Link with the I-7188XG
    ● Modbus RTU Slave Ports
    ● Modbus RTU/ASCII Master Ports
    ● Expansion Boards and Remote I/O Modules
    ● I/O Expansion Boards
    ● Linking the I-7000 & I-87K module for Remote I/O
    ● Data Exchange: Fbus
    ● Data Log
    ● Remotely Download Program: Modem_Link
    ● PWM: Pulse Width Modulation Output
    ● Parallel DI Counters
    ● SMS: Short Message Service

  15. ISaGRAF Palm-Size Programmable Automation Controller

    ISaGRAF Embedded Controller with one RS-232/RS-485 port, one RS-485;
    512K Flash,512K SRAM,and LED display; Including ISaGRAF Target License

    ● Creating a Modbus Link with the I-7188XG
    ● Modbus RTU Slave Ports
    ● Modbus RTU/ASCII Master Ports
    ● Expansion Boards and Remote I/O Modules
    ● I/O Expansion Boards
    ● Linking the I-7000 & I-87K module for Remote I/O
    ● Data Exchange: Fbus
    ● Data Log
    ● Remotely Download Program: Modem_Link
    ● PWM : Pulse Width Modulation Output
    ● Parallel DI Counters
    ● SMS: Short Message Service

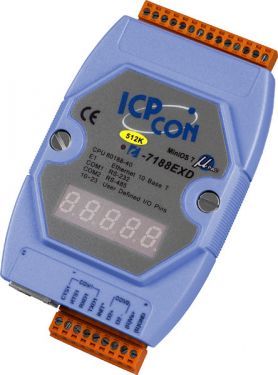

  16. I-7188EXD-512 CR  Embedded Internet/Ethernet Controller with one Ethernet port, one RS-232 port, One RS-485 / 512K SRAM / 512K FLASH,and several optional user defined I/O with LED display.

    Embedded controller with 7-segment display, developing tool kit, 512K bytes flash,512K bytes SRAM and MiniOS7

    ● AMD 80188-40 embedded CPU or compatible
    ● Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP
    ● 10BASE-T NE2000 compatible Ethernet Controller
    ● Reloadable Operating Software
    ● Remote Configuration
    ● Diagnostics
    ● 64-bit hardware unique serial number inside
    ● COM driver support interrupt & 1K QUEUE Input & Output buffer
    ● COM port: COM1, COM2
    ● Built-in RTC, NVRAM, EEPROM
    ● User defined 14 I/O lines
    ● Built-in I/O expansion bus interface
    ● Can add on one expansion board only
    ● Built-in self-tuner ASIC controller on RS-485 port
    ● 7-segment LED display for I-7188EXD
    ● Built-in MiniOS7
    ● Program download port: COM1 or Ethernet Port

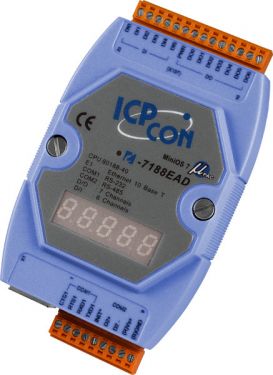

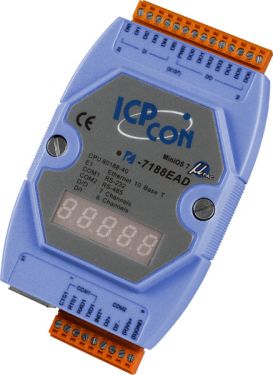

  17. Embedded Internet / Ethernet Controller with one Ethernet port,
one RS-232 port, One RS-485 port and digital I/O with LED display.

    Embedded Internet/Ethernet controller with 512K bytes flash, 512K bytes SRAM and 7-segment LED display

    ● AMD 80188-40 embedded CPU or compatible
    ● 10BASE-T Ethernet Controller, NE2000 compatible
    ● 64-bit hardware unique serial number inside
    ● COM driver support interrupt & 1K QUEUE Input & Output buffer
    ● COM port: COM1, COM2
    ● Built-in RTC, NVRAM, EEPROM
    ● Six digital input channels
    ● Seven open-collector output channels
    ● Built-in self-tuner ASIC controller on RS-485 port
    ● 7-segment LED display
    ● Built-in MiniOS7
    ● TCP/IP
    ● Built-in RTC, NVRAM, EEPROM
    ● Program download port: COM1 or Ethernet Port

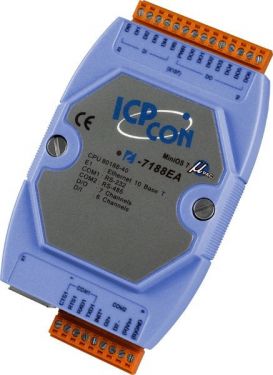

  18. Embedded Internet/Ethernet controller with 512K bytes flash, 512K bytes SRAM

    Embedded Internet/Ethernet controller with 512K bytes flash, 512K bytes SRAM

    ● AMD 80188-40 embedded CPU or compatible
    ● 10BASE-T Ethernet Controller, NE2000 compatible
    ● 64-bit hardware unique serial number inside
    ● COM driver support interrupt & 1K QUEUE Input & Output buffer
    ● COM port: COM1, COM2
    ● Built-in RTC, NVRAM, EEPROM
    ● Six digital input channels
    ● Seven open-collector output channels
    ● Built-in self-tuner ASIC controller on RS-485 port
    ● Built-in MiniOS7
    ● TCP/IP
    ● Built-in RTC, NVRAM, EEPROM
    ● Program download port: COM1 or Ethernet Port
