Daughter Boards
ICPDAS DN-8368MBPhoto-isolated terminal board for ICPDAS 3-axis stepper/servo controller
● High speed photo-coupling isolated
● Supporting pulse command type step motors or servo motors
● Providing power led and other status LEDs (home, limit switches)
ICPDAS DN-8368GBPhoto-isolated terminal board for ICPDAS 3-axis stepper/servo controller
● High speed photo-coupling isolated
● Supporting pulse command type step motors or servo motors
● Providing power led and other status LEDs (home, limit switches)
ICPDAS DN-8468FBPhoto-isolated terminal board for ICPDAS four-axis stepper/servo controller
● High speed photo-coupling isolated
● Supporting pulse command type step motors or servo motors
● Providing power led and other status LEDs (home, limit switches)
● Providing FRnet terminal for high-speed serial I/O expansion when the mother supports FRnet
ICPDAS DN-8468DBPhoto-isolated terminal board for ICPDAS four-axis stepper/servo controller
● High speed photo-coupling isolated
● Supporting pulse command type step motors or servo motors
● Providing power led and other status LEDs (home, limit switches)
● Providing FRnet terminal for high-speed serial I/O expansion when the mother supports FRnet
ICPDAS DN-8468YBPhoto-isolated terminal board for ICPDAS four-axis stepper/servo controller
● High speed photo-coupling isolated
● Supporting pulse command type step motors or servo motors
● Providing power led and other status LEDs (home, limit switches)
● Providing FRnet terminal for high-speed serial I/O expansion when the mother supports FRnet
ICPDAS DN-8468PBPhoto-isolated terminal board for ICPDAS four-axis stepper/servo controller
● High speed photo-coupling isolated
● Supporting pulse command type step motors or servo motors
● Providing power led and other status LEDs (home, limit switches)
● Providing FRnet terminal for high-speed serial I/O expansion when the mother supports FRnet
ICPDAS DN-8468MBPhoto-isolated terminal board for ICPDAS four-axis stepper/servo controller
● High speed photo-coupling isolated
● Supporting pulse command type step motors or servo motors
● Providing power led and other status LEDs (home, limit switches)
● Providing FRnet terminal for high-speed serial I/O expansion when the mother supports FRnet

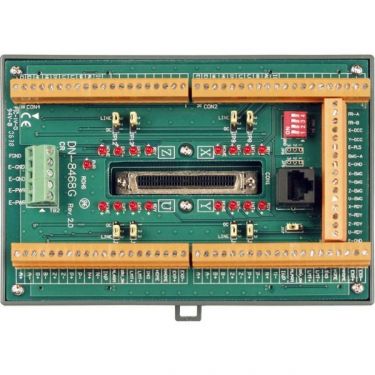

ICPDAS DN-8468GBPhoto-isolated terminal board for ICPDAS four-axis stepper/servo controller
● High speed photo-coupling isolated
● Supporting pulse command type step motors or servo motors
● Providing power led and other status LEDs (home, limit switches)
● Providing FRnet terminal for high-speed serial I/O expansion when the mother supports FRnet

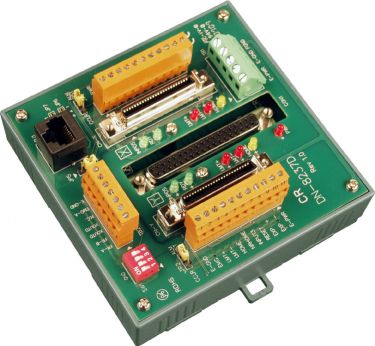

ICPDAS DN-8237DBPhoto-isolated terminal board for ICPDAS two-axis stepper/servo controller
● High speed photo-coupling isolated
● Supporting pulse command type step motors or servo motors
● Providing power led and other status LEDs (home, limit switches)
● Providing FRnet terminal for high-speed serial I/O expansion when the mother supports FRnet

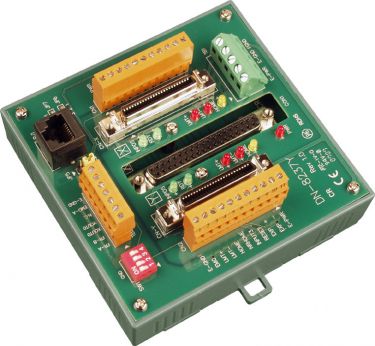

ICPDAS DN-8237YBPhoto-isolated terminal board for ICPDAS two-axis stepper/servo controller
● High speed photo-coupling isolated
● Supporting pulse command type step motors or servo motors
● Providing power led and other status LEDs (home, limit switches)
● Providing FRnet terminal for high-speed serial I/O expansion when the mother supports FRnet

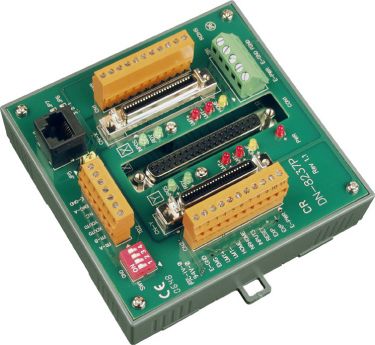

ICPDAS DN-8237PBPhoto-isolated terminal board for ICPDAS two-axis stepper/servo controller
● High speed photo-coupling isolated
● Supporting pulse command type step motors or servo motors
● Providing power led and other status LEDs (home, limit switches)
● Providing FRnet terminal for high-speed serial I/O expansion when the mother supports FRnet

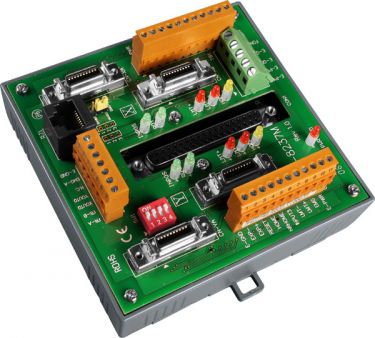

ICPDAS DN-8237MBPhoto-isolated terminal board for ICPDAS two-axis stepper/servo controller
● High speed photo-coupling isolated
● Supporting pulse command type step motors or servo motors
● Providing power led and other status LEDs (home, limit switches)
● Providing FRnet terminal for high-speed serial I/O expansion when the mother supports FRnet

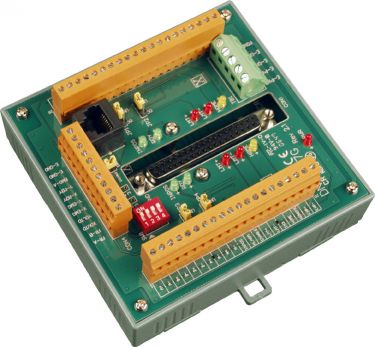

ICPDAS DN-8237GBPhoto-isolated terminal board for ICPDAS two-axis stepper/servo controller
● High speed photo-coupling isolated
● Supporting pulse command type step motors or servo motors
● Providing power led and other status LEDs (home, limit switches)
● Providing FRnet terminal for high-speed serial I/O expansion when the mother supports FRnet

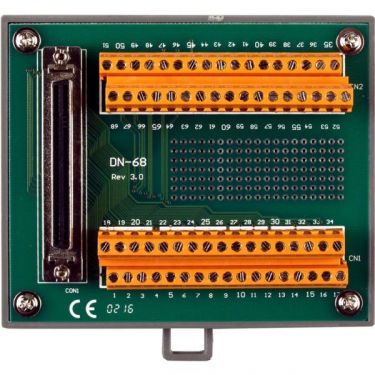

ICPDAS DN-68Encoder input Board for PISO-Encoder300/600
● I/O connector Block with DIN-Rail Mounting
● 68-pin SCSI-II connector
● Pin to Pin screw terminal for I/O connected
● Screw terminals for easy field wiring
● Dimension:103 x 86 mm
ICPDAS DN-20MManual-Pulsar-Generator (MPG) and FRnet input board for PISO-PS600/VS600/PMDK
● MPG and FRnet connector Block with Din-Rail mounting
● 20-pin SCSI-II connector
● Pin to Pin screw terminal for Manual Pulsar Generator connected
● Screw terminals for easy field wiring
● RJ-45 for FRnet connector

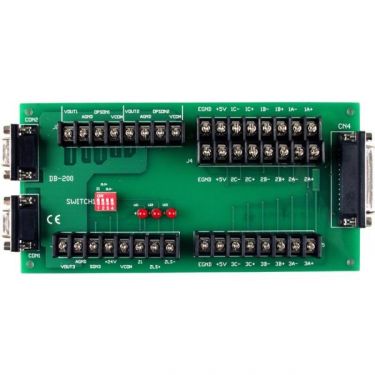

ICPDAS DB-200Encoder input Board for PISO-Encoder300/600
● I/O connector Block with DIN-Rail Mounting
● Connection board for SERVO-300 driver
● 25-pin D-sub connector and two 9-pin D-sub connector
● Pin to Pin screw terminal for I/O connected
● Screw terminals for easy field wiring

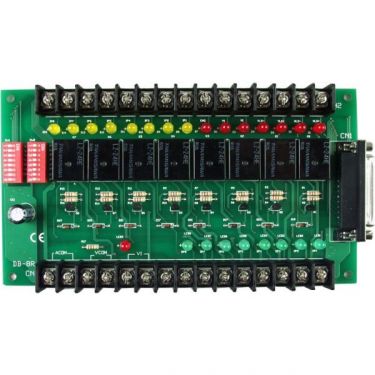

ICPDAS DB-8RRelay board for Servo 300 and PISO-PS300
● I/O connector Block with DIN-Rail Mounting
● Connection board for PISO-PS300 or SERVO-300
● For limit switches,digital inputs/outputs
● 25-pin D-sub connector
● Pin to Pin screw terminal for I/O connected
● Screw terminals for easy field wiring
