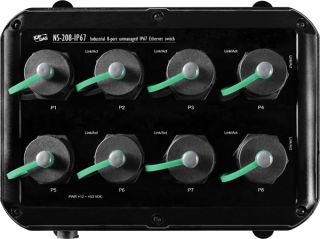

ICPDAS NS-208-IP67 - Industrial 8-port unmanaged IP67 (PoE) switch
Levertijd:
2~7 dagen
SKU
NS-208-IP67
● Automatic MDI/MDI-X crossover for plug-and-play
● Store-and-forward architecture
● Each port supports both 10/100 Mbps speed auto negotiation
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● Rugged RJ-45 Connector for anti-vibration and shock
● IP67 grade protection approval
● 8 PoE ports with Power Sourcing Equipment (PSE) operation (NS-208PSE-IP67 series)
● Auto-detection of PD (powered devices) and automatic power management (NS-208PSE-IP67 series)
● Over-temperature, over-current and over/under-voltage detection (NS-208PSE-IP67 series)
The NS-208PSE-IP67/NS-208-IP67 is designed for industrial applications in harsh environments. The rugged RJ-45 ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock.
The NS-208PSE-IP67 PoE switch provides 8 fast Ethernet with 8 IEEE 802.3af compliant PoE ports. The switch is classified as power source equipment (PSE) and provide up to 15.4 W of power per port.
The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.
Meer informatie
Art.nr.
NS-208-IP67
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Technology
| Standards | IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Processing Type | Store and Forward; wire speed switching |
| Address Table Size | 1024 |
| Flow Control | IEEE802.3x flow control, back pressure flow control |
Interface
| RJ45 ports | 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDIX connection | ||
| LED Indicators | Power, 10/100 M, Link/Act | ||
| Cable |
|
Power
| Input Voltage | NS-208PSE-IP67: +46 ~ +53 VDC for PoE output NS-208-IP67: +12 ~ +53 VDC |
| Power consumption |
NS-208PSE-IP67: 0.05 A @ 48 VDC without PD loading; 1.45 A @ 48 VDC with PD full loading NS-208-IP67: 0.12 A @ 24 VDC |
Mechanical
| Case | Plastic | ||
| Flammability | UL 94V-0 materials | ||
| Environmental rating |
|
||
| Dimensions (w x h x d) | 190 mm x 155 mm x 104 mm |
||
| Installation | DIN-Rail or Wall Mounting |
Environmental
| Operating Temperature |
|
||
| Storage Temperature |
|
||
| Humidity |
|
