Unmanaged Industrial Ethernet Switch with Fiber Port

Industrial 10/100BASE-TX to 100BASE-FX Media Converter

● Provides 1-port 10/100BASE-TX plus 1-port 100BASE-FX
● The fiber port is available with SC or ST with a fiber connection that can reach up to 120Km (74.4miles)
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @ -20°C to 70°C (-4°F to 158°F)
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Supports 12 to 48VDC Power inputs
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● 384K bits buffer memory

Unmanaged Industrial 5-port 10/100BASE Ethernet Switch

● Provides 5-port 10/100BASE-TX or 4-port 10/100BASE-TX plus 1-port 100BASE-FX
● The fiber port is available with SC or ST with a fiber connection that can reach up to 120Km (74.4miles)
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @ -20°C to 70°C (-4°F to 158°F)
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Supports 12 to 48VDC Power inputs
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment

Hardened Unmanaged 8-port 10/100BASE PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 8 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @ -40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides DIN- Rail, Panel, or Rack Mounting
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX

Web-smart Industrial 5-port 10/100BASE PoE Ethernet Switch

● Provides flexibility of 5 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @-40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides Wall and Desktop mounting
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

Industrial Web-Smart 5-port 10/100BASE PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 5 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @-20°C to 70°C (-4°F to 158°F)
● Port1-port4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE ports can supports the IEEE802.3af+ standard and power up 30W devices
● Provides Wall and Desktop mounting
● System, IP Configuration, Port-based VLAN and QoS Priority setting through the Web browser Interface
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

Hardened Web-Smart 5-port 10/100BASE PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 5 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @-40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides Wall and Desktop mounting
● System, IP Configuration, Port-based VLAN and QoS Priority setting through the Web browser Interface
● PoE (Power budget Control, PoE status, Port status) through the Web browser Interface
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

Hardened Web-smart 8-port 10/100BASE High Power PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 8 Ethernet ports that configure incombinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @-40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af+Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides DIN-rail, panel or Rack mounting
● System, IP Configuration, Port-based VLAN and QoS Priority setting through the Web browser Interface
● PoE (Power budget Control, PoE status, Port status) through the Web browser Interface
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

IEC61850-3/IEEE1613 Unmanaged Hardened 8-port 10/100BASE Ethernet Switch

● Provides flexibility of 4 to 8 10/100BASE-TX ports and 2 100BASE-FX ports
● Supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Redundant power inputs (12 - 48VDC) with Terminal Block and DC Jack (12VDC)
● Alarms for power and Link Down failure by relay output
● Supports DIP switch configuration for link down alarm
● -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F)
● Provides DIN-rail or panel mounting
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with IEC61850-3 and IEEE1613 Environmental requirements for power substation automation systems
● Complies with EN50121-4 environmental requirement for Railway application

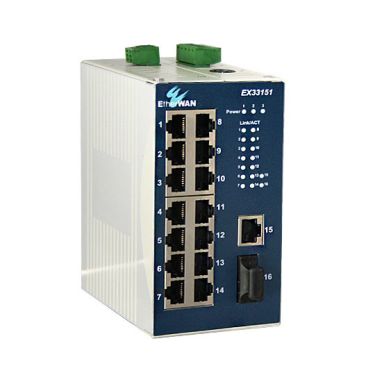

Unmanaged Industrial 16-port 10/100BASE Ethernet Switch

● Provides 14 10/100BASE-TX ports plus 2 100BASE-FX ports
● Supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Redundant power inputs (12 - 48VDC) with Terminal Block and DC Jack (12VDC)
● Alarms for power failure by relay output
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @ -20°C to 70°C (-4°F to 158°F)
● Provides DIN-rail, panel or Rack mounting
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment

Unmanaged Hardened 16-port 10/100BASE Ethernet Switch

● Provides 14 10/100BASE-TX ports plus 2 100BASE-FX ports
● Supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Redundant power inputs (12 - 48VDC) with Terminal Block and DC Jack (12VDC)
● Alarms for power failure by relay output
● -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F)
● Provides DIN-rail, panel or Rack mounting
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
