EtherWAN Ethernet Switch EX33000

Levertijd:
3~4 weken
SKU
EX33000

Unmanaged Industrial 16-port 10/100BASE Ethernet Switch

● Provides 14 10/100BASE-TX ports plus 2 100BASE-FX ports
● Supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Redundant power inputs (12 - 48VDC) with Terminal Block and DC Jack (12VDC)
● Alarms for power failure by relay output
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @ -20°C to 70°C (-4°F to 158°F)
● Provides DIN-rail, panel or Rack mounting
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment

EtherWAN's EX33000 Series is an industrial unmanaged Fast Ethernet switching platform, designed for easy deployment in harsh environments.

The EX33000 Series is equipped with sixteen Fast Ethernet ports, or a combination of Fast Ethernet copper ports and two 100FX ports for long distance connectivity. Although unmanaged, the EX33000 is feature rich with full wire speed Fast Ethernet throughput, making the EX33000 Series a powerful network switch.

Meer informatie
Art.nr.
EX33000
Fabrikant
EtherWAN
Land van herkomst
Taiwan
Technology
Standards IEEE802.3 10BASE-T, IEEE802.3u 100BASE-
TX/100BASE-FX, IEEE802.3x
Forward and Filtering Rate 14,880pps for 10Mbps
148,810pps for 100Mbps
Packet Buffer Memory 1.625M bits
Processing Type
Store-and-forward
Half-duplex back-pressure and IEEE802.3x full-duplex flow control
Address Table Size 4096 MAC addresses
Latency Less than 10μs
Interface
Ethernet Port 10/100BASE-TX: 16, 15 or 14 ports
100BASE-FX: 0, 1 or 2 ports
LED Indicators Per Unit: Power Status (Power 1, Power 2, Power 3)
Per Port: 10/100TX, 100FX: Link/Activity
Alarm Contact One relay output with current 1A @ 24VDC
Power
Input Input Voltage:
12 to 48VDC (Terminal Block)
12VDC (DC Jack)
Power Consumption 7.4W Max. 0.6A @ 12VDC, 0.3A @ 24VDC, 0.15A @48VDC
Overload Current Protection Present
Reverse Polarity Protection Present
Mechanical
Casing Aluminum Case (IP30)
Dimensions (w x h x d) 69mm (W) x 110mm (D) x 135mm (H)
(2.72" (W) x 4.33" (D) x 5.31" (H))
Weight 0.87Kg (1.92lbs.)
Installation DIN-Rail (Top hat type 35mm), Panel, Rack Mounting
Environmental
Operating Temperature -10°C to 60°C (14°F to 140°F)
Tested @ -20°C to 70°C (-4°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% (non-condensing)
Approvals
ISO Manufactured in an ISO9001 facility
Safety UL508
EMI FCC Part 15, Class A, VCCI
EN61000-6-4
- EN55022
- EN61000-3-2
- EN61000-3-3
EMS

EN61000-6-2
- EN61000-4-2 (ESD Standards)
Contact: + / - 6KV
Air: + / - 8KV
- EN61000-4-3 (Radiated RFI Standards)
10V/m, 80 to 1000MHz; 80% AM
3V/m, 1400 to 2000MHz; 80% AM
1V/m, 2000 to 2700MHz; 80% AM
- EN61000-4-4 (Burst Standards)
Signal Ports: + / - 4KV
D.C. Power Ports: + / - 4KV
- EN61000-4-5 (Surge Standards)
Signal Ports: + / - 1KV; Line-to-Line
D.C. Power Ports: + / - 0.5KV; Line-to-Earth
- EN61000-4-6 (Induced RFI Standards)
Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM
D.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80%AM
- EN61000-4-8 (Magnetic Field Standards)
30A/m @ 50, 60Hz

Environmental Test Compliance IEC60068-2-6 Fc (Vibration Resistance)
5g @ 10 - 150KHz, Amplitude 0.35mm
(Operation/Storage/Transport)
IEC60068-2-27 Ea (Shock)
25g @ 11ms (Half-Sine Shock Pulse; Operation)
50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
FED STD 101C Method 5007.1 (Free fall w/ package)
-Tested with Cross Weight and Drop High standard table
EtherWAN Ethernet Switch EX33000 aanpassen
Aantal
Aantal
Aantal

* Verplichte velden

Uw configuratie

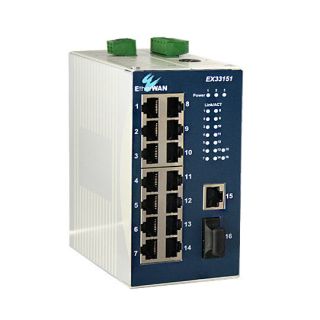

Industrial Unmanaged 16-port 10/100BASE Ethernet Switch
