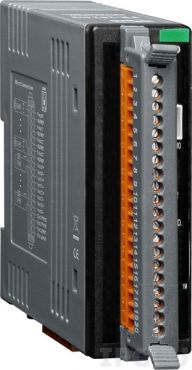

ICPDAS FR-2017iT

Levertijd:
2~7 dagen
SKU
FR-2017iT

8/16-channel Isolated Analog Input Module With High Voltage Protection And Isolated Communication Line

● Built-in wire-saving FRnet control
● High-speed transmission reliability
● Simple synchronization mechanism
● No software overhead on protocol processing
● Supporting broadcasting (1:n data transmission)
● Duplicating output easily
● Fixed I/O scan-time and I/O synchronization
● DIN-Rail mountable

The FR-2017iT is a 12-bit, 8-channel differential or 16-channel single-ended analog inputs module that provides two ways to select input range (±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, 0~20mA and 4~20mA). One way provides switch selectable the same range at all channels and another each analog channel is allowed to configure an individual range by software selectable. It also has 240Vrms high overvoltage protection for all analog inputs.

The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2017iT/2024iT; refer to literatures related to I-7188EF, I-8172W, and FRB-100/200/200U.

Meer informatie
Art.nr.
FR-2017iT
Fabrikant
ICPDAS
Analog Input
Input Channels 8 differential or 16 single-ended, switch selectable
Input Type
+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V
+/-20 mA ,0 ~ 20 mA, 4 ~ 20 mA (requires optional external 125Ω resistor for current input)
Resolution
16-bit (1 channel)
12-bit (8/16 channels)
Sampling Rate
10 samples/second (1 channel)
50 samples/second(8/16 channels) total
Accuracy +/-0.1% (1 channel) / +/-0.5% (8/16 channels) or better
Bandwidth 15.7Hz (1 channel) / 78.7Hz (8/16 channels)
Zero Drift +/-20uV/°C
Span Drift +/-25ppm/°C
Input Impedance Voltage: 2 MΩ (Differential), 1 MΩ (Single-ended)
Common Mode Rejection 86 dB min.
Normal Mode Rejection 100 dB
Individual Channel Configuration Yes (by software, requires optional CA-0904 cable)
Overvoltage Protection Differential: 240 Vrms, Single-ended: 150 Vrms
Connection 20-pin Removable Terminal Block
Interface
Isolation Voltage 3000 Vrms
2-wire Cabling
Belden 8941 (2P twisted-pair cable),
When different cables are used, the transmission distance may be changed
Transfer Distance
Max. 400m for speed 250K
Max. 100m for speed 1M (Default)
LED Indicators Power, Communication Run, Communication Error, Terminal resistor, Digital output
Transfer Speed
250Kbps and 1Mbps (Default)
DIP Switch Selectable
Cyclic Scan Time
2.88ms for speed 250K
0.72ms for speed 1M (Default)
EMS Protection
ESD (IEC 61000-4-2)
4 kV contact for power line, communication line and each channel
8 kV air for random point
EFT (IEC 61000-4-4) 4 kV for power liner
Surge (IEC 61000-4-5) 3 kV for power liner
Power
Input Voltage Range +10 ~ +30 VDC (Non-isolation)
Power Consumption 2.4 W Max
Connector 5-Pin Removable Terminal Block
Mechanical
Case Plastic
Flammability UL 94V-0 materials
Dimensions (w x h x d) 32.5 x 110 x 102mm
Installation DIN-Rail
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +85 °C
Humidity 10 ~ 90% non-condensing
