PROFIBUS Gateways

PROFIBUS/HART Gateway

● HART (4Ch) to PROFIBUS DP-V0 Gateway
● max Baudrate: 12 Mbps
● Automatic transmission rate setting
● Up to 15 HART modules
● GSD File for easy integration in the PROFIBUS Master
● Free utility to configuration and test of GW-7557
● Max in/out message size: 240 Bytes

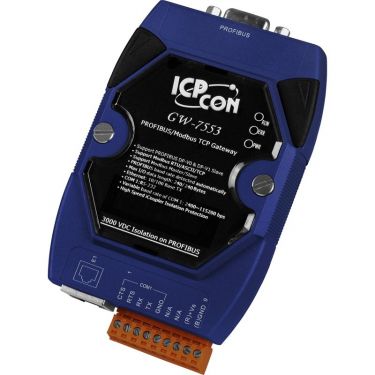

PROFIBUS/Modbus TCP Gateway

● Protocol & Hierarchy: DP-V0 Slave
● Detect transmission rate (9.6 ~ 12000 kbps) automatically
● 128 bytes max input data length
● 130 bytes max output data length
● Support Modbus Master and Slave mode
● Support Modbus RTU, ASCII and TCP format
● Address 0~126 set by DIP switch or EEPROM
● Support several kinds of baud rate for COM1 from 2.4 to 115.2 kbps
● Network Isolation Protection: High Speed iCoupler
● 3000 VDC isolation protection on PROFIBUS side

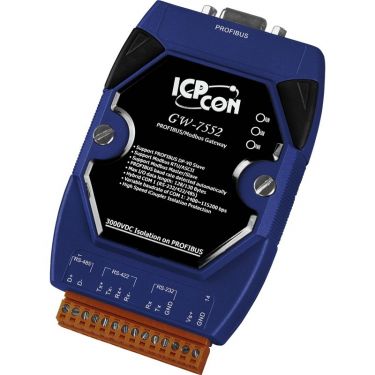

PROFIBUS/Modbus Gateway

● Protocol & Hierarchy: DP-V0 Slave
● Detect transmission rate (9.6 ~ 12000 kbps) automatically
● 128 bytes max input data length
● 130 bytes max output data length
● Support Modbus Master and Slave mode
● Support Modbus RTU and ASCII format
● Address 0~126 set by DIP switch or EEPROM
● Support several kinds of baud rate for COM1 from 2.4 to 115.2 kbps
● Network Isolation Protection: High Speed iCoupler
● 3000 VDC isolation protection on PROFIBUS side
