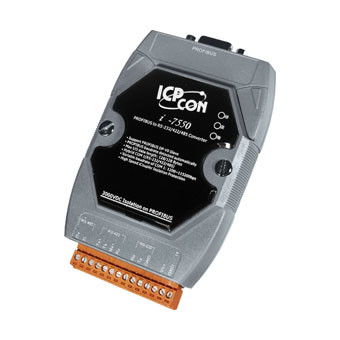

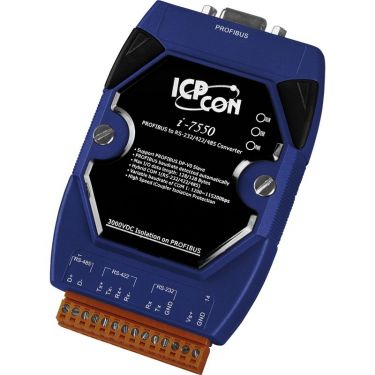

PROFIBUS Converter

PROFIBUS to RS-232/422/485 Converter

● Protocol & Hierarchy: DP-V0 Slave
● Detect transmission rate (9.6 ~ 12000 kbps) automatically
● Max length of in/output data is 128 Bytes
● Address 0 ~ 126 set by DIP switch or EEPROM
● Support several kinds of baud rate for COM1 from 1.2 ~ 115.2 kbps
● Built-in self-tuner ASIC controller on RS-422/485 port
● Network Isolation Protection: High Speed iCoupler
● 3000 VDC isolation protection on PROFIBUS side
● 4 kV ESD Protection
● DIN-Rail Mountable

Isolated PROFIBUS Repeater

● Support for PROFIBUS DP protocol
● Detect transmission rate automatically(Max. 12Mbps)
● Network Isolation Protection
● 3000VDC isolation protection on PROFIBUS side
● 4KV ESD Protection (contact for any terminal)

ICPdas PROFIBUS/Ethernet Converter(RoHS)

● DP-V0 Slave
● Transmission Rate (kbps) 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
● Automatically sets transmission rates
● Max Input/Output of Data is 240Bytes
● Web Configuration
● 10/100 Base-TX
● 2500 Vrms Network Isolation Protection
● 3000 VDC DC Protection Isolation Protection on PROFIBUS side
