EtherNet/IP Series

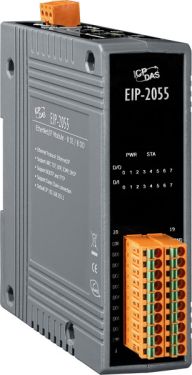

Isolated 8-ch DI and 8-ch DO EtherNet/IP I/O module Transfer protocol: EtherNet/IP

● Powerful 32-bit MCU handles efficient network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
● Easy firmware update via Ethernet
● Removable terminal block connector
● RoHS compliant with Halogen-free
● LED display to indicate the I/O status

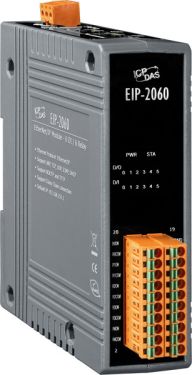

Isolated 6-ch DI and 6-ch Relay Output EtherNet/IP I/O module

● Transfer protocol: EtherNet/IP
● Powerful 32-bit MCU handles efficient network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
● Easy firmware update via Ethernet
● Removable terminal block connector
● RoHS compliant with Halogen-free
● LED display to indicate the I/O status

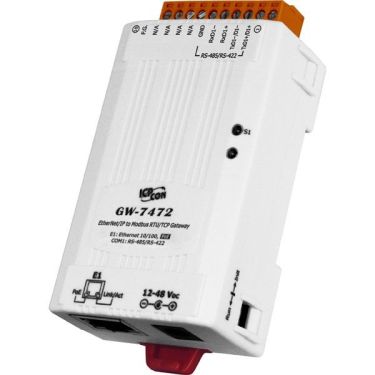

EtherNet/IP to Modbus RTU Gateway

● Powerful 32-bit MCU handles efficient network traffic
● 10/100 Base-TX Ethernet, RJ-45 x1
● (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
● Automatically RS-485 direction control
● Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
● Easy firmware update via Ethernet
● Removable terminal block connector
● Tiny form-factor and low power consumption
● RoHS compliant with Halogen-free
● Fire retardant materials (UL94-V0 Level)
