CAN Series

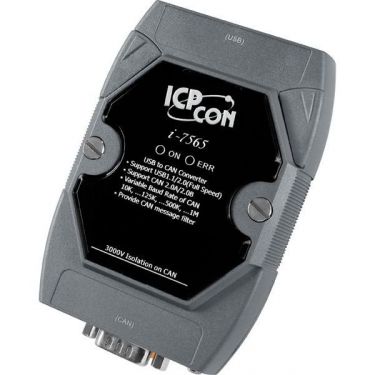

USB to CAN Converter

● Microprocessor inside with 20MHz
● RoHS Design
● Fully compliant with USB 1.1/2.0(Full Speed)
● Fully compatible with the ISO 11898-2 standard
● No external power supply is required as I-7565 takes it's power from the USB bus
● 82C250 CAN transceiver
● Transmission speed up to 1M bps for CAN and 921.6K bps for USB
● Support both CAN 2.0A and CAN 2.0B
● Built-in jumper to select 120 ohm terminal resister
● Power, data flow and error indicator for CAN and USB
● 1000 frames in CAN received buffer

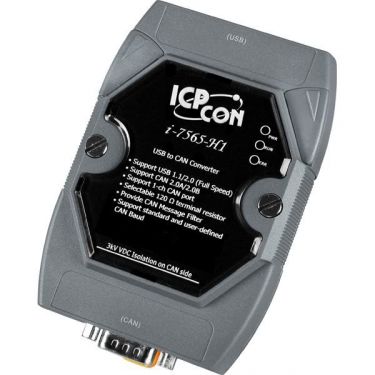

High Performance Intelligent USB to CAN Converter

● Fully compliant with USB 1.1/2.0 (Full Speed)
● Fully compatible with the ISO 11898-2 standard
● Support both CAN2.0A and CAN2.0B
● Powered by USB bus
● Integrated with one or two CAN bus channels
● Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
● Support CAN bus acceptance filter configuration
● Time-stamp of CAN message with at leastI-7565-H1 1 ms precision
● Support firmware update via USB
● Provide API library for users' program development easily

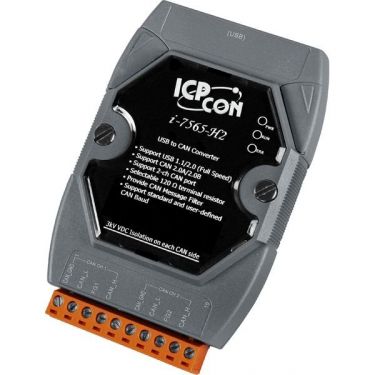

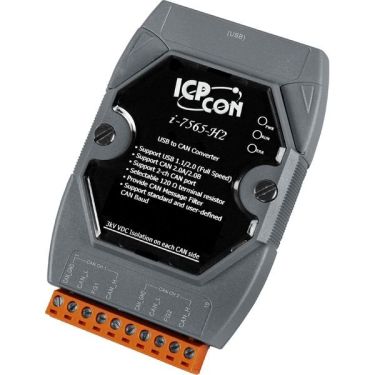

High Performance Intelligent USB to CAN Converter

● Fully compliant with USB 1.1/2.0 (Full Speed)
● Fully compatible with the ISO 11898-2 standard
● Support both CAN2.0A and CAN2.0B
● No external power supply (powered by USB)
● Integrated with one or two CAN bus channels
● Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
● Support CAN bus acceptance filter configuration
● Time-stamp of CAN message with at least ±1ms precision
● Support firmware update via USB
● Provide API library for users' program development easily

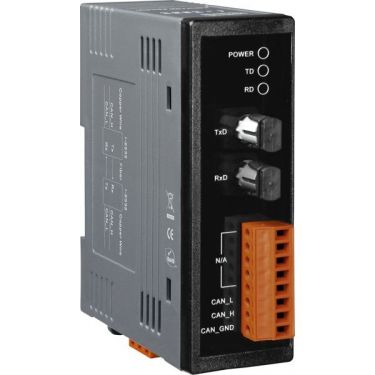

CAN/Fiber Converter

● Compatible with CAN specification 2.0A and 2.0B
● Fully compatible with the ISO 11898-2 standard
● Support baud up to 500Kbps
● Jumper for 120 Ω terminator resistor of CAN bus
● Fiber Port: ST (Multi-mode)
● Wave Length: 850 nm
● Auto-baud detection
● up to 100 nodes on CAN port
● Removable terminal block
● DIN-Rail Mountable

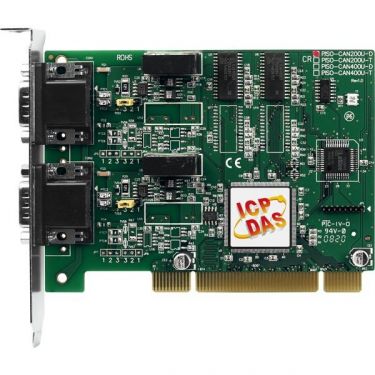

2-Port Isolated Protection CAN Communication Board with 9-Pin D-Sub Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● PCI card, supports 5V PCI bus

2-Port Isolated Protection CAN Communication Board with 5-Pin Screw Terminal Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● PCI card, supports 5V PCI bus

2-Port Isolated Protection Universal PCI CAN Card with 9-Pin D-Sub Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● Universal PCI card, supports both 5V and 3.3V PCI bus

2-Port Isolated Protection Universal PCI CAN Card with 5-Pin Screw Terminal Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● Universal PCI card, supports both 5V and 3.3V PCI bus

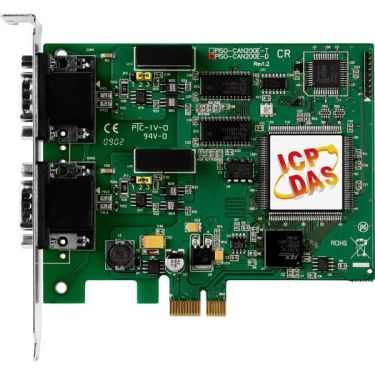

PCI Express CAN Communication Card

● PCI Express Interface
● Compatible with CAN 2.0 parts A and B
● Fully compatible with ISO 11898-2 standard
● Support CAN bard from 10K to 1M bps
● 2500Vrms photo couple isolation on the CAN bus
● Universal PCI supports both 5V and 3.3V PCI bus
● Build-in jumper to select 120 ohm terminal resister
● 3KV galvanic isolation
● 2 independent CAN channels
● Direct memory mapping to the CAN controller

PCI Express CAN Communication Card

● PCI Express Interface
● Compatible with CAN 2.0 parts A and B
● Fully compatible with ISO 11898-2 standard
● Support CAN bard from 10K to 1M bps
● 2500Vrms photo couple isolation on the CAN bus
● Universal PCI supports both 5V and 3.3V PCI bus
● Build-in jumper to select 120 ohm terminal resister
● 3KV galvanic isolation
● 2 independent CAN channels
● Direct memory mapping to the CAN controller

PCI Express CAN Communication Card

● PCI Express Interface
● Compatible with CAN 2.0 parts A and B
● Fully compatible with ISO 11898-2 standard
● Support CAN bard from 10K to 1M bps
● 2500Vrms photo couple isolation on the CAN bus
● Universal PCI supports both 5V and 3.3V PCI bus
● Build-in jumper to select 120 ohm terminal resister
● 3KV galvanic isolation
● 2 independent CAN channels
● Direct memory mapping to the CAN controller

PCI Express CAN Communication Card

● PCI Express Interface
● Compatible with CAN 2.0 parts A and B
● Fully compatible with ISO 11898-2 standard
● Support CAN bard from 10K to 1M bps
● 2500Vrms photo couple isolation on the CAN bus
● Universal PCI supports both 5V and 3.3V PCI bus
● Build-in jumper to select 120 ohm terminal resister
● 3KV galvanic isolation
● 2 independent CAN channels
● Direct memory mapping to the CAN controller

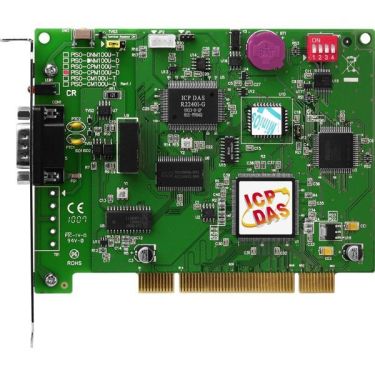

CANopen Firmware Inside and One Standalone Intelligent CAN Communication Board

● NMT: Master
● CANopen Version: DS-301 v4.02
● Error Control: Support Guarding protocol
● Support EMCY receiving
● Provide dynamic PDO functions
● Provide 5 sets of SYNC cyclic transmission
● Transmission type of PDO is supported
● Support Multi-Master to Single-Slave architecture
● Auto select with expedition mode or segment mode
● Support Windows 2K/XP

CANopen Firmware Inside and One Standalone Intelligent CAN Communication Board

● NMT: Master
● CANopen Version: DS-301 v4.02
● Error Control: Support Guarding protocol
● Support EMCY receiving
● Provide dynamic PDO functions
● Provide 5 sets of SYNC cyclic transmission
● Transmission type of PDO is supported
● Support Multi-Master to Single-Slave architecture
● Auto select with expedition mode or segment mode
● Support Windows 2K/XP

CANopen/DCON Gateway

● Programmable standard CANopen baud, such as 10 Kbps, 20 Kbps, 50 Kbps, 125 Kbps, 250 Kbps, 500 Kbps, 800 Kbps and 1 Mbps
● Support COM1(RS-232) and COM2(RS-485),such as 1200,2400,4800.9600,119200,38400,57600 or 115200 bps
● Support maximum 50 TxPDO, 50 RxPDO, 15 SDO to SDO server
● Support communication object: TxPDO, RxPDO, and server SDO
● Support on-line configure CANopen slaves
● Communicate with CANopen slaves automatically when GW-7433D boots up
● Allow 5 Modbus/TCP masters to access GW-7433D simultaneously
● CANopen Version: DS301 V4.02
● Device Profile: DSP-401 v2.0

CANopen/DCON Gateway

● NMT: Slave
● Error Control: Node Guarding protocol
● Node ID: Setting by CAN_MRU Utility Software or LSS Protocol
● PDO Modes: Event-triggered, remotely requested, cyclic and acyclic SYNC
● PDO Mapping: variable
● No of SDOs: 1 server, 0 client
● Emergency Message: Yes
● CANopen Version: DS-301 v4.02
● Device Profile: DSP-401 v2.0
● CiA DSP-305 V1.1

One Standalone Intelligent CAN Communication Board

● Microprocessor inside with 80186, 80MHz
● 82C250 CAN transceiver
● SJA1000T CAN controller
● Support both CAN 2.0A and CAN 2.0B
● Timestamp with at least ±1ms precision
● DIP switch to select board number
● Dual port RAM communication mechanism
● RTC (real time clock) inside
