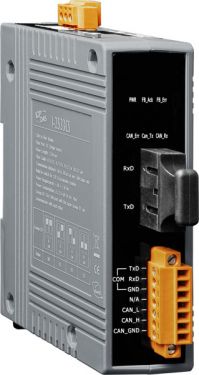

Fiber Optics Converter

CAN to Single-mode Fiber Bridge

● Fiber Type: SC ; Single mode ; 100 Base-FX
● Maximum transmission distance up to 30 km (60km for I-2533CS-60, 15km for I-2533CS-A and I-2533CS-B) at any CAN baud rate
● NXP TJA1042 CAN transceiver
● 2500 Vrms isolation on the CAN side
● Supports both CAN 2.0A and CAN 2.0B
● Fully compatible with the ISO 11898-2 standard
● Rotary switch for CAN baud rate configuration
● Build-in switch for 120 Ω terminator resistor
● Removable terminal block, Mount easily on DIN-Rail
● Allows user-defined CAN baud rate
● Fiber broken line detection
● Utility tool for CAN message filter configuration
● The CAN port with the same Group ID can communicate with each other

Industrial 4-port CAN bus Switch with Metal casing

● 4 CAN communication ports
● Compatible with CAN specification 2.0A and 2.0B
● Fully compatible with the ISO 11898-2 standard
● Baud rate : 5 k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and user-defined
● CAN bus filter is configurable
● 100 data frames buffer for each CAN channel
● Max data flow up to 2500 fps for all CAN channel
● Selectable baud rate by rotary switch
● Selectable 120Ω terminator resistor by DIP switch
● LED for CAN reception and transmission
● Support CAN network with star or tree topology
● Extending the CAN bus distance to expand the CAN network size
● Integrating different CAN network with different baud rate

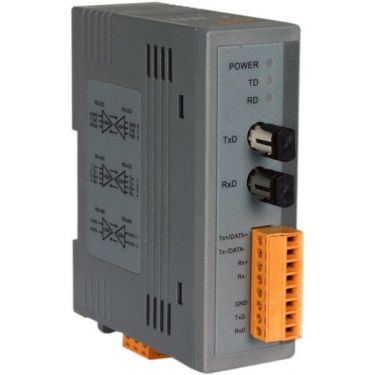

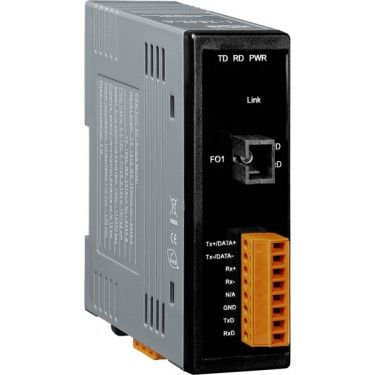

RS-232/422/485 to Single- or Mulit-Mode Fiber optic converter

● Automatic RS-485 Direction Control
● Optical fibers enable transmission of 2 km for I-2541 and 15 km for
● I-2542-A/I-2542-B
● Avoids lightning strikes and EMI/RFI interference
● Supports +10 VDC ~ +30 VDC vESD Protection for the RS-232/422/485 Data Line
● DIN-Rail Mounting
● Supports operating temperatures from -25 °C ~ +75 °C

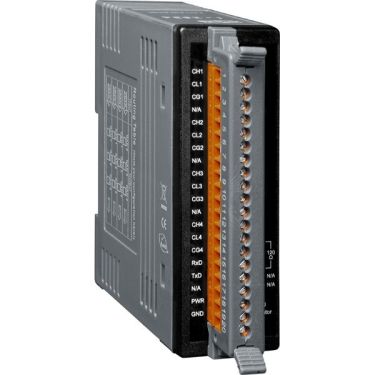

4-port CAN bus Switch

● 4 CAN communication ports
● Compatible with CAN specification 2.0A and 2.0B
● Fully compatible with the ISO 11898-2 standard
● Baud rate : 5 k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and user-defined
● CAN bus filter is configurable
● 100 data frames buffer for each CAN channel
● Max data flow up to 2500 fps for all CAN channel
● Selectable baud rate by rotary switch
● Selectable 120Ω terminator resistor by DIP switch
● LED for CAN reception and transmission
● Support CAN network with star or tree topology
● Extending the CAN bus distance to expand the CAN network size
● Integrating different CAN network with different baud rate

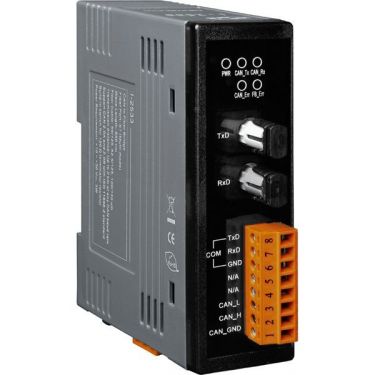

CAN/Fiber Bridge

● Fiber Port: ST (Multi-mode)
● Maximum transmission distance up to 2 km at any CAN baud rate
● 82C250 CAN transceiver
● 2500 Vrms iCoupler isolation on the CAN side
● Support both CAN 2.0A and CAN 2.0B
● Fully compatible with the ISO 11898-2 standard
● Build-in switch for 120 Ω terminator resistor
● Up to 100 CAN nodes on each channel
● Removable terminal block
● DIN-Rail Mountable

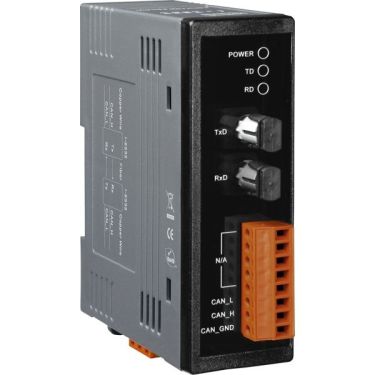

CAN/Fiber Converter

● Compatible with CAN specification 2.0A and 2.0B
● Fully compatible with the ISO 11898-2 standard
● Support baud up to 500Kbps
● Jumper for 120 Ω terminator resistor of CAN bus
● Fiber Port: ST (Multi-mode)
● Wave Length: 850 nm
● Auto-baud detection
● up to 100 nodes on CAN port
● Removable terminal block
● DIN-Rail Mountable

RS-232/422/485 to Fiber Optic Converter

● Auto Switching Baud Rate, 300 ~ 115200 bps
● 3000 VDC Isolation Protection on the RS-232 side
● ESD Protection for the RS-232/422/485 Data Line
● Power Input, +10 ~ +30 VDC
● Operating Temperatures, -25 °C ~ +75 °C
● DIN-Rail Mountable
