ICPDAS GT-540P

Levertijd:
2~7 dagen
SKU
GT-540P

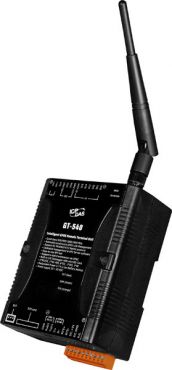

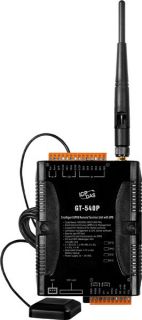

Intelligent GPRS Remote Terminal Unit with GPS

● Automatic/continuous GPRS Link Management
● Support Modbus RTU protocol to connect to Max 3 Modbus RTU devices via RS-485 port
● Support M2M OPC server for SCADA system
● Easy-to-use API tool for users to develop their applications by various program development tools
● Be the GPRS I/O devices
● Support data transferring by E-mail
● Support GPS function
● Local I/O linkage function to make the simple local control
● Support 3.7 V Li-ion Battery backup
● Power supply 10 VDC ~ 30 VDC

The ICPDAS GPRS Module GT-540P is an intelligent Active GPRS Remote Terminal Unit with GPS. Within the high performance 32 bit CPU, the GT-540P is suit for the hard industrial environment. It features GPRS/GSM module, 6 digital inputs, 2 digital outputs, 1 analog input, 2 RS-232, 1 RS-485 and SD interface. It can be used in M2M application fields to transfer the local I/O or Modbus device’s data by GPRS by the defined period or DI/AI triggers. The local I/O and GPS data can also be stored in the SD card to become a remote data logger. For another communication path, the ICPDAS GPRS Module GT-540P offers the E-mail mode to transfer the data by E-mail via GPRS for users to choose. The simple I/O linkage function of the GT-540P can reach the real time control in the local field. It also supports Li-ion battery as another power source when the main power is failed temporarily. Therefore, the GT-540P is an ideal solution for environmental monitoring, remote device management and vehicle monitoring system for M2M applications. Meanwhile, it is supplied with easy-to-use API and OPC server Software that streamline application development process, freeing system integrators from dealing with complex communication protocols of GPRS and the Internet.







APPLICATIONS:







SOFTWARE SOLUTIONS:

The M2M RTU center software with friendly Graphic interface is to manage the GPRS RTU products easily. Users can monitor the I/O data and status of GPRS RTU devise by the interface on PC. By using the GPRS RTU API tool and M2M RTU center software, any remote monitoring system can be achieved easily and efficiently. For SCADA system, the M2M.OPC server is provided to connect to SCADA by OPC interface.



Meer informatie
Art.nr.
GT-540P
Fabrikant
ICPDAS
CPU
CPU 32-bit, 72 MHz
SRAM 64 Kbytes
Flash Memory 512 Kbytes
RTC Gives time (sec, min, hour) & date, leap year compensation from 1980 to 2079
WDT (watchdog) Yes
SD Interface 2 GB max.
Serial Ports
COM1 RS-232 : TxD,RxD,GND for configuration
COM2 RS-485 : D2+, D2-
Digital Input
Input Channel 6
Input Type Sink or Source, Isolated channel with common power or ground
On Voltage Level 3.5 VDC ~ 24 VDC
Off Voltage Level 1 V max.
Isolated Voltage 3750 Vrms
Counters
6 (16 Bit, 5 ~ 40 Hz)
Min. Pulse Width: 5 ms
Digital Output
Channels 2
Output Type Open-Collector (NPN) (500 mA@24 VDC)
Load Voltage +24 V max.
Load Current 500 mA max.
Isolated Voltage 3750 Vrms
Analog Input
Channels 1
Resolution 12-bit
Input Range/Type 0 ~ 20 mA
GSM/GPRS System
GPRS/GSM
Quad-band 850/900/1800/1900 MHz
GPRS multi-slot: class 10/8
GPRS mobile station: class B
GPRS class 10: Max download speed 85.6 kbps
CSD max speed 14.4 kbps

Compliant to GSM phase 2/2+
- Class 4(2 W @ 900 MHz)
- Class 1(1 W @ 1800/1900 MHz)

Coding schemes: CS 1, CS 2, CS 3, CS 4
GPS Interface
Support Channels 32
Sensitivity
Tracking = up to -159 dBm (with external LNA)
Cold start = up to -146 dBm (with external LNA)
Acquisition Time
Hot start (Open Sky) = 2 s (typical)
Cold start (Open Sky) = 36 s (typical)
Protocol Support GPRMC format (NMEA 0183 v3.01)
Power
Protection Reverse polarity protection
Frame Ground Protection ESD, Surge, EFT, Hi-Pot
Required Supply Voltage
+10 VDC ~ +30 VDC
with 600 mAh Li-ion battery backup
Mechanical
Casing Plastic
Flammability UL 94V-0 materials
Dimensions (w x l x h) 91 x 132 x 52 mm
Installation DIN-Rail Mounting
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +80 °C
Humidity 5 ~ 95% RH, non-condensing
ICPDAS GT-540P aanpassen
Intelligent GPRS Remote Terminal Unit with GPS (RoHS)
3.7V 600 mAh Battery [BT600]
